DGET-1000L
DEGONGET
8438400000
| Description of 1000L high quality micro beer brewing equipment |
10BBL micro beer brewing equipment produced by DEGONG is a set of technological equipment for the production of "live" and filtered beer.it was widely used in hotel,brewpub,bar or brewery. The whole brewing system including Grist miller,brewhouse,fermentation tank,cooling system,CIP and Controller,the equipment can be also customized according to customer's specific requirements.
| Brewhouse system of 1000L micro beer brewing equipment |
Mash/Lauter tun:
Stainless steel material
VFD raker system
Laser cut false bottom
Thickness of inner shell: 3.0mm; outer shell: 2.0mm; Jacket: 1.5mm
ABB/ Siemens motor
Side manhole for discharnging spent grain automatically
Tempered glass top manhole
4 pcs of heavy duty stainless steel legs with leveling footpads
CIP arm with spraying ball of 360 coverage
Backwater flushing system
Insulation: Polyurethane
Kettle/whirlpool tank:
Stainless steel material
VFD Blender system
Tangential wort inlet
Thickness of inner shell: 3.0mm; outer shell: 2.0mm; Jacket: 1.5mm
Steam jackets on cone and body
Tempered glass top manhole
4 pcs of heavy duty stainless steel legs with leveling footpads
CIP arm with spraying ball of 360 coverage
Insulation: Polyurethane
Hot water tank:
Stainless steel material
Thickness of inner shell: 3.0mm; outer shell: 2.0mm; Jacket: 1.5mm
Steam jackets on cone and body
4 pcs of heavy duty stainless steel legs with leveling footpads
CIP arm with spraying ball of 360 coverage
Insulation: Polyurethane
| Fermentation system of 1000L beer brewing equipment |
Fermentation tank is where fermentation process occurs. There generally are two reactions when fermentation is happening. First is aerobic respiration, followed by anaerobic respiration. The beer after the fermentaion process is drinkable.
Fermentation tank:
Stainless steel construction
100% TIG welded with argon gas protection
Thicness of inner shell: 3.0mm; outer shell:2.0mm; jacket:1.5mm
Design pressure: 0.3MPa
Working pressure: 0.15-0.2MPa
Insulation: Polyurethane
4 pcs of heavy duty stainless steel legs with leveling footpads
Side manhole
CIP arm with spraying ball of 360 coverage
Glycol jackets on cone and body
Components:
Pressure relief valve & vacuum valve
Dry hopping hole
Pressure gauge
Pressure bunging device
Side manhole
Sample valve
Temperature sensor
Thermowell
Themometer
Racking arm
Drain with valves
Glycol jackets with inlets and outlets

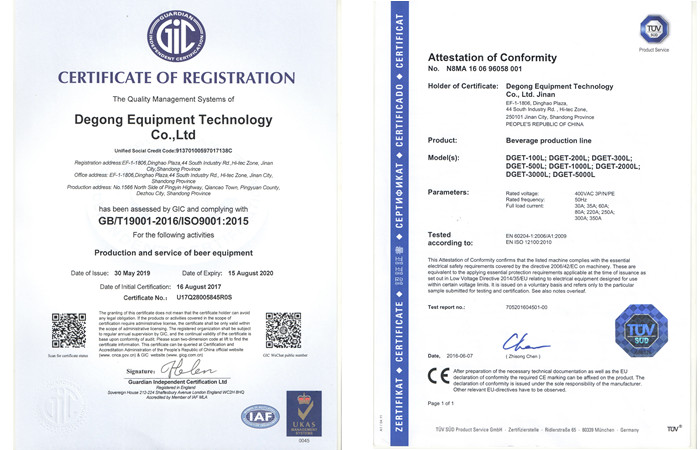

| Certificates |
Our beer brewing equipment is approved by UL, CE, ISO, TUV.
| Why choose us |
We have a modernized standard factory and employ more than 100 employees. Our company is a high-tech enterprise which combines design, developing, selling and after-sale service as a whole.
We have got CE, PED, UL,ISO9001 (2008) and SGS certificates for our micro beer brewing equipment. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our customer segmentation is mainly focused on the Euramerican developed countries such as the USA, Canada, the United Kingdom, Australia and Russia, etc.
Deliver innovative products in the market at a faster pace;Enhance the reliability of product’s quality;Decrease the total cost of the product effectively; Improve research personnel’s ability of creative design.
