| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Heating method: | |
| Construction: | |
| Material: | |
| Quantity: | |
DGET- 500L
DGET
8438400000
500L beer brewing equipment is the best option of brewery equipment for a starting your own brewery business.And it also is a good choice for large restaurant used or creating your own beer brand.The brewery consists of a brewing part(mashing system/brewhouse),fermentation part and other auxiliary equipment.
Beer brewhouse introduction

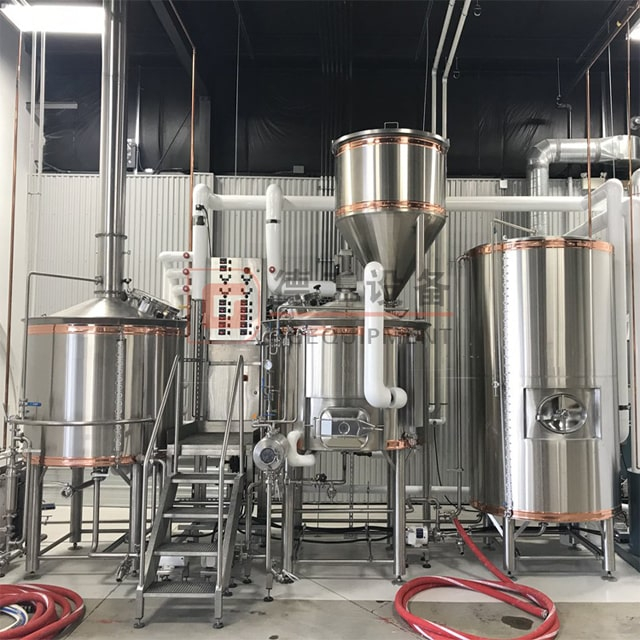

The compact Brewhouse section consists of two universal apparatus: Mash-Lauter tun (M-L) and Kettle-Whirlpool tun (K-W). Both devices are able for heating, which gives a wide range of opportunities for the implementation of creative ideas of brewers. Small dimensions and well-thought-out piping system of the brewhouses makes the workflow simple and convenient.
Combined 2-Vessels Brewhouse System:

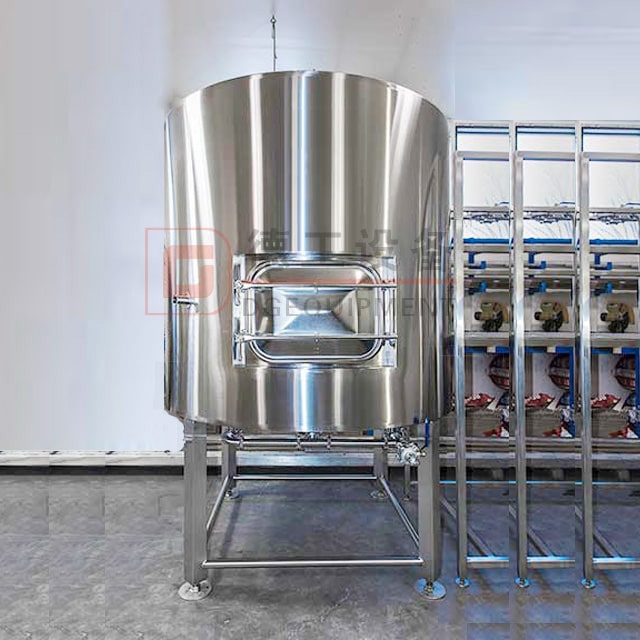

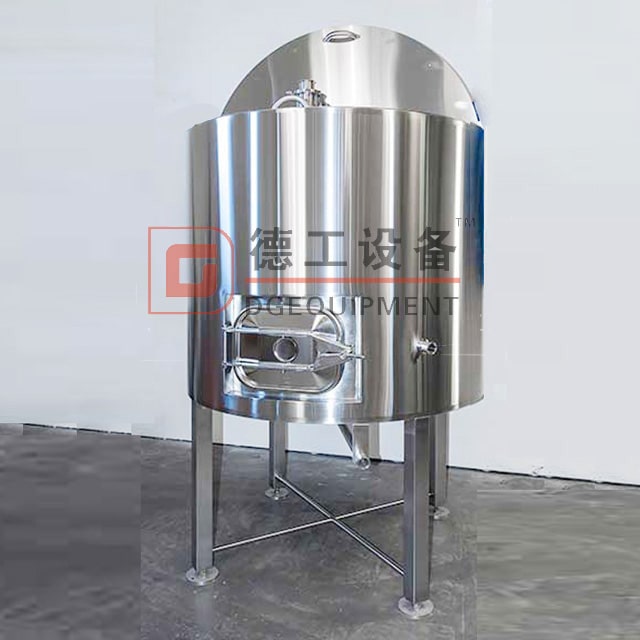

1*500L Mash-Lauter Tun
1*500L Kettle-Whirlpool Tun
1*1000L Hot Liquor Tank
2*3T wort pumps
1*7m2 plate heat exchanger
1*Hops filter
1*Aeration device
1*External wort grant (optional)
1*Brew kettle condensate collector (optional)
1*Grist case/hopper (optional)
1*Hop back (optional)
1*Steam boiler(optional for steam heating method)
Heating method | Electricity/steam/gas direct fire heating |
Polishing | Mirror polishing to 0.4-0.6 micron |
Welding | 100% TIG welding |
Certification | CE, PED, ISO9001 |
Control system | Semi-automatic |
Warranty | 3 years |
Manufacturer | Yes |
Cooling system | Dimple plate |
False bottom | 5mm, removable and easy clean |
Manufacturer | Yes |
Material | SUS304 or red copper |
Thickness | Inside: 3.0mm, outside: 2.0mm |
Insulation | Polyurethane 100mm |
Beer fermentation tank
DEGONG beer fermentation tank is made in top grade certified stainless steel materials(2B or precise polish for available surface).Fully equipped pressure resistant, glycol jacketed, stainless steel cylindroconical vessel designed for fermentation, maturation and carbonisation of most types of beverages.
We have specification of 50l~50000l stainless steel beer fermentation tank,also we can produce as our client's request.
Fermentation tank(CCT/Unitank)
| V total=1300l, V net=1000l; Н = 2550 mm , Ø = 1300 mm, Material: Steel AISI 304 – Thermal insulation (polyurethane) – 100mm; – Rotary cleaning ball – Upper/side manhole – Wort-hose connection DN 32 – CIP connection DN 32 – Cooling jacket (cone + cylinder) – Pressure-relief device – Temperature sensor – Sampling valve – Level indicator – Carbonation stone – Hops adding port |
Weather you want to brew craft beer or brew commercial/industrial beer,weather you want to start a new beer brewery project or expand your brewing scale.No matter what you want to brew lager or ale, stout beer or light beer,barley beer or wheat beer,fruit beer or corn beer,low concentration beer or high concentration beer....DEGONG brewing equipment always can meet your requirement.
500L beer brewing equipment is the best option of brewery equipment for a starting your own brewery business.And it also is a good choice for large restaurant used or creating your own beer brand.The brewery consists of a brewing part(mashing system/brewhouse),fermentation part and other auxiliary equipment.
Beer brewhouse introduction
The compact Brewhouse section consists of two universal apparatus: Mash-Lauter tun (M-L) and Kettle-Whirlpool tun (K-W). Both devices are able for heating, which gives a wide range of opportunities for the implementation of creative ideas of brewers. Small dimensions and well-thought-out piping system of the brewhouses makes the workflow simple and convenient.
Combined 2-Vessels Brewhouse System:
1*500L Mash-Lauter Tun
1*500L Kettle-Whirlpool Tun
1*1000L Hot Liquor Tank
2*3T wort pumps
1*7m2 plate heat exchanger
1*Hops filter
1*Aeration device
1*External wort grant (optional)
1*Brew kettle condensate collector (optional)
1*Grist case/hopper (optional)
1*Hop back (optional)
1*Steam boiler(optional for steam heating method)
Heating method | Electricity/steam/gas direct fire heating |
Polishing | Mirror polishing to 0.4-0.6 micron |
Welding | 100% TIG welding |
Certification | CE, PED, ISO9001 |
Control system | Semi-automatic |
Warranty | 3 years |
Manufacturer | Yes |
Cooling system | Dimple plate |
False bottom | 5mm, removable and easy clean |
Manufacturer | Yes |
Material | SUS304 or red copper |
Thickness | Inside: 3.0mm, outside: 2.0mm |
Insulation | Polyurethane 100mm |
Beer fermentation tank
DEGONG beer fermentation tank is made in top grade certified stainless steel materials(2B or precise polish for available surface).Fully equipped pressure resistant, glycol jacketed, stainless steel cylindroconical vessel designed for fermentation, maturation and carbonisation of most types of beverages.
We have specification of 50l~50000l stainless steel beer fermentation tank,also we can produce as our client's request.
Fermentation tank(CCT/Unitank)
| V total=1300l, V net=1000l; Н = 2550 mm , Ø = 1300 mm, Material: Steel AISI 304 – Thermal insulation (polyurethane) – 100mm; – Rotary cleaning ball – Upper/side manhole – Wort-hose connection DN 32 – CIP connection DN 32 – Cooling jacket (cone + cylinder) – Pressure-relief device – Temperature sensor – Sampling valve – Level indicator – Carbonation stone – Hops adding port |
Weather you want to brew craft beer or brew commercial/industrial beer,weather you want to start a new beer brewery project or expand your brewing scale.No matter what you want to brew lager or ale, stout beer or light beer,barley beer or wheat beer,fruit beer or corn beer,low concentration beer or high concentration beer....DEGONG brewing equipment always can meet your requirement.
