Vodka Gin Copper Still Alcohol Distillery Equipment 1000L Distillation Column Distiller for Sale
Home » Brewery Equipment » Distilling System » Vodka Gin Copper Still Alcohol Distillery Equipment 1000L Distillation Column Distiller for Sale

Product Detail

Share to:

Vodka Gin Copper Still Alcohol Distillery Equipment 1000L Distillation Column Distiller for Sale

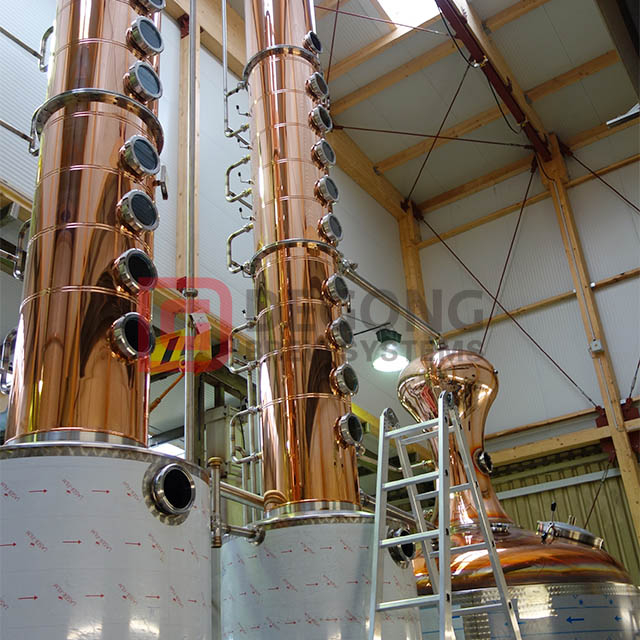

1000 liter alcohol distillation equipment designed for high purity spirits vodka and gin up to 96% abv. Consists of a 1000L copper pot, a whisky helmet, gin basket, 9+9 plate distillation column with partial condenser, condenser and parrot outlet and safe collection of heart, head/tail spirits and three storage tanks composition.
Availability:
Quantity:
  • DG-1000L
  • DEGONG

1000L Column Distiller


Item Name
1000L Column Distiller
Model
DG-1000L
Spirits to make
Vodka, Gin, Whisky, Brandy, Rum, Tequila, Moonshine etc
Component
Columns, dephlegmator, Gin basket, condenser, proof cover parrot outlet, CIP
Power Supply
110V-220V/ 380-405V/ 50HZ/3P or custom
Heating style
Electric, Gas, Steam, Oil transfer heating etc

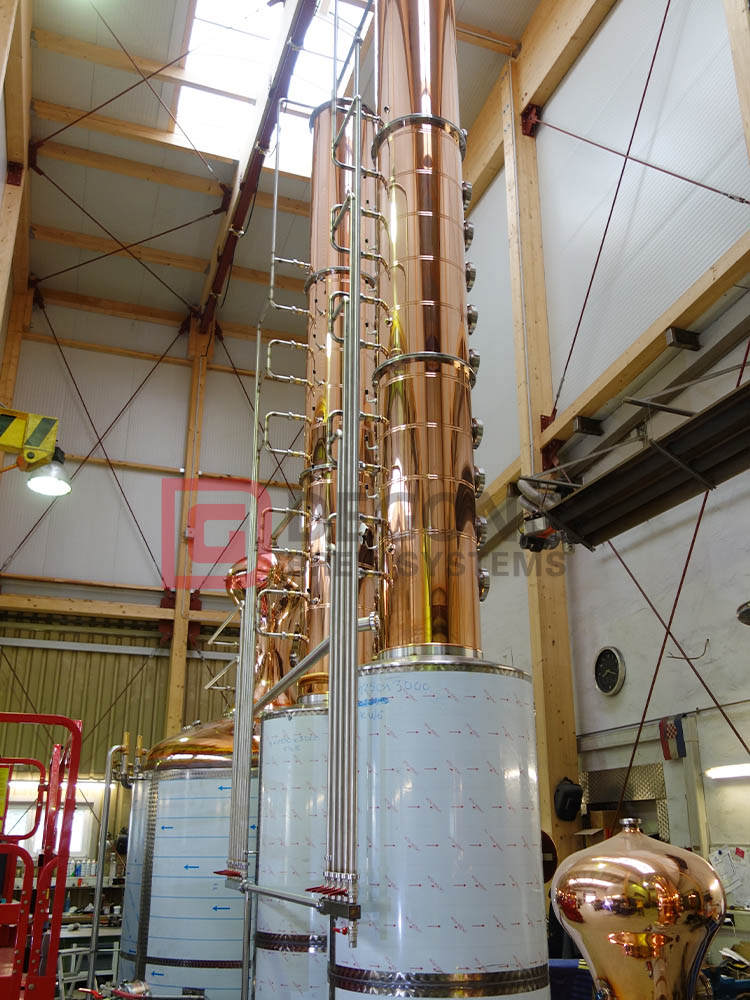

276

DG-III


Model
Design
Usage
DG-I

Pot

Helmet

Column (Short Or High)

Dephlegmator

Condenser

Design for 70-90%abv low proof spirits
Whisky, Brandy, Rum, Tequila
DG-II
Pot

Helmet
Column (Short Or High)

Dephlegmator

Gin Basket
Condenser

Compared with DYE-I with one more gin basket
Could distilling gin with netural spirits
Design for 70-90%abv spice spirits
Gin, Whisky, Brandy, Rum, Tequila
DG-III
Pot

Helmet
1st Column (Short)

2nd Column (High)

Dephlegmator

Gin Basket
Condenser

Compared with DYE-II with one more high column
Could distilling gin with netural spirits
Could distilling low proof spirits with short column
Design for 96%abv for vodka and gin
Vodka, Gin, Whisky, Brandy, Rum, Tequila
DG-IV
Pot

Helmet
1st Column (Short)

2nd Column (Short Or High)
Dephlegmator
Condenser

Compared with DYE-III remove gin basket
Could distilling low proof spirits with short column
Design for 96%abv for vodka
Vodka, Whisky, Brandy, Rum, Tequila

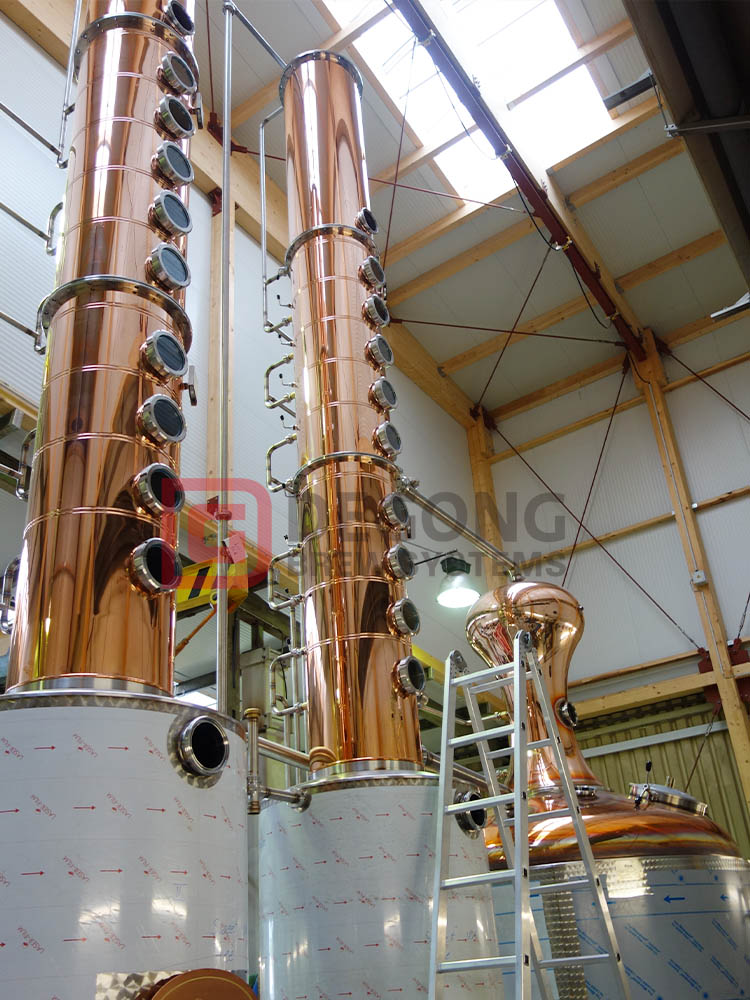

275


Equipment details

Plate distillation column: within the column are bubble cap trays, the vapor rises up the tube inder the bubble caps and bubbles out from under the cap and through the standing liquid on each tray. The standing liquid overflows at a certain depth to the next tray beblow


277

269


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
