Stainless Steel Universial Craft Beer Cylinder-conical Tank fermentor 1000L with Top / Side Hatch

CCT have a cooling jacket over the entire height of the cylindrical and conical part. ССT are warmed by polyurethane foam 70-100 mm thick. The external covering of CCT is made of food mirror stainless steel.

Insulation:
Material:
Thickness:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000
Fermentation system introduction:

The fermentation area consists of a specific (at the customer's choice) number of CCT (cylindrical-conical tanks) of a corresponding capacity and a control panel containing the automation for maintaining the desired beer temperature inside each CCT.


CCT have a cooling jacket over the entire height of the cylindrical and conical part.  ССT are warmed by polyurethane foam 70-100 mm thick. The external covering of CCT is made of food mirror stainless steel.


QQjietu20191227101231.webp-min

Cylinder-conical Tank with side hatch

CCT equipped with:

  • top or side (at the choice of the client) the inspection sealed hatch;

  • a small hatch for a yeast (top hatch);

  • fittings for connecting CIP-station and carbon dioxide baloon;

  • rotary washing head;

  • bottom valve for draining yeast sediment and washing liquid;

  • tap for supply wort and beer drain;

  • sampling valve;

  • beer temperature sensor;

  • automatic valve.


bright-beer-tank-detail-min

Fermentation tank components

such as side manhole;thermometer,carbonation stone etc.


Technology parameters:

-Head space: 25%

-Thickness: Inner shell 3mm;outer shell 2mm

-100mm insulation

-Dimple cooling jacket with inlet and outlet

-Top dry hopping

-Shadow less side man way

-Relief valve

-CIP connections

-Racking arm

-Temperature and pressure gauges

-Level gauge, carbonation stone, sight glass as option


清酒正反-min

Bright beer tank


Bright beer tank features:

  • Glycol cooling jacket on cone and bottom

  • Side or top manway

  • CIP arm and CO2 blow off arm

  • Mechanical relief valve

  • Shockproof pressure gauge

  • Rotating racking arm

  • Dry hopping port

  • Carbonation stone

  • Sight level

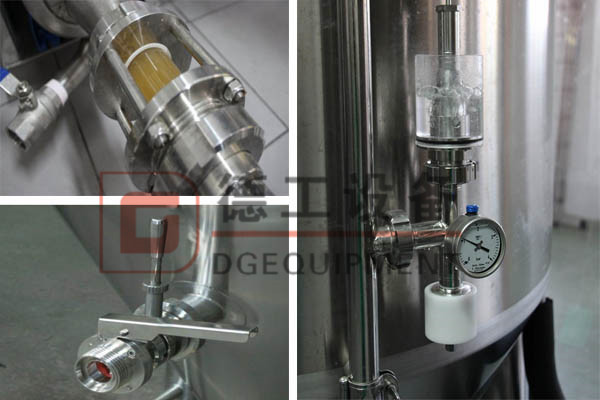

拼图1_副本

Components(pressure gauge;safety valve,raking arm etc.)


Our services:

1. Will provide tank design drawings for your confirmation before production;

2. Customized design is avaliable;

3. Packing & Delivery:

Packing: LCL: Plstic films, bubble films, steel frame, wooden case

              FCL: Plstic films, bubble films inside the container

Delivery time: 30-35 days depends on quantity

4. Warranty:

We'll provide free maintaining the main equipment within three years and accessory equipment within one year.

We'll supply lifetime maintenance and technical service.

H2-min

Pakage and delivery
