500L Double Wall Dimple Jacket Stainles Steel Conical Insulated Beer Fermentation Tank Available

Fermentation tank is a vertical, tapered, cylindrical vessel for the beer fermentation and maturation processes.Beer fermentation tanks,also refer to Uni-tank,which are vessels of various size usually made from stainless steel that contain a mixture of malted grain, hops, yeast and water to create a liquid collectively known in the brewing process as wort. Fermentation tanks vary in temperature depending upon the beer being produced.

Material:
Insulation:
Polyurathane:
Jacket:
Quantity:
  • DGET-500L
  • DGET
  • 8438400000


Fermentation tank is a vertical, tapered, cylindrical vessel for the beer fermentation and maturation processes.Beer fermentation tanks,also refer to Uni-tank,which are vessels of various size usually made from stainless steel that contain a mixture of malted grain, hops, yeast and water to create a liquid collectively known in the brewing process as wort. Fermentation tanks vary in temperature depending upon the beer being produced.

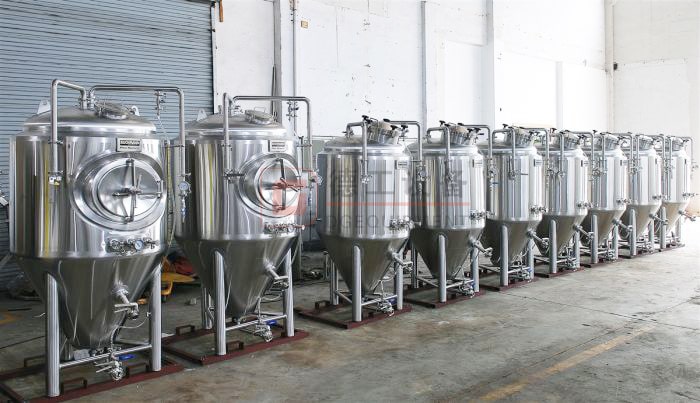

500L fermentation tank


Fermentaiton tank Features


What is beer fermentation tank

Fermentation tanks, or more commonly fermenters, are key components in beer brewing.Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.


Size:

Technical parameter:

Details configuration accessories


Gross capacity:650L

Useful capacity:500L

Outer :Ø960mm;

Inner:Ø800m

Height: 2150 mm;

a.Stainless steel 304 sanitary construction

b.100% TIG welded and sanitary polished

c.Design pressure is 0.3MPa,using pressure is 0.15MPa

d.4heavy duty stainless steel legs with adjustable height and leveling footpads

e.Interior:thickness 3mm; Outerior:thickness 2mm

f.Interior treatment:Mirror polishing

g.Mirror polishing to 0.4μm without dead corner.

h.Jacket:stainless steel 304,thickess 1.5mm

i.Insulation:100mm Polyurethane

j.60 degree conical bottom

k.Heat exchanger area:2.9m2

l.Side mahole

m.Lifting ear

n.Temperature sensor

o.Pressure guage

p.Machinery regulator

q.Breathing valve

r.Hops adding hole

s.Simple valve

t.Raking arm

u.Valves&fittings

v.Add carbonation stone

w.blow-off/ clean-in-place (CIP) tube

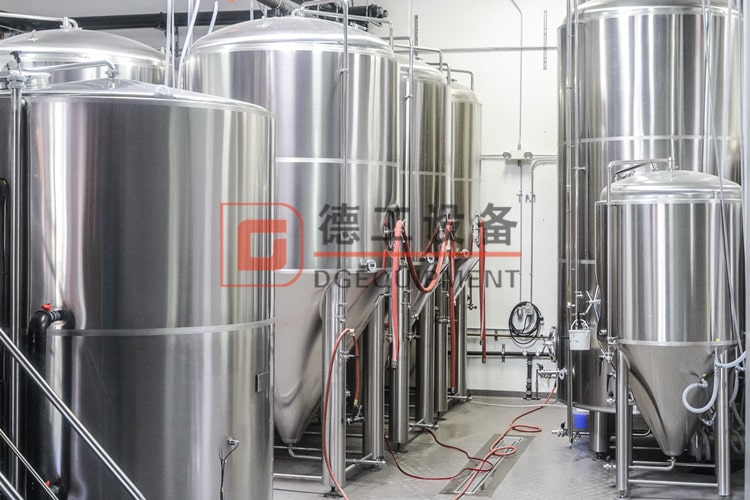

Fermenting vessels


Technical date


Sprinkler head

Removable

Inspection Opening

Oval shape (on top cover / on cylindrical part)

Vacuum Safety Valve

DN 50 / DN 80 fitted on top cover

Overpressure Safety Valve

DN 25 fitted on top cover, preset to 1,5 bar / 3,0 bar

Handling Eyelets

2 - 4 pcs

Sampling Valve

DN 15

Valves

DN 25 / DN 40 / DN 50

Temperature Sensor

Needle type PT – 100, 1 - 3 pcs

Suppression Device with Manometer

DN 25 / DN 40

Certification and RTG tests

TÜV or Slovak Technical Inspection


Tank body

Tanks are available with torispherical and conical bottom

Torispherical lid resists high pressure and design according to DIN Standard

Conical bottom assures the easier removal of yeast from the tank

Tanks are available with side, top and bottom manholes depending on the size and your needs

Top manholes can handle high pressure, easily to handle and made in insulated version

Side manholes are can be easily cleaned without any blind area

Material quality of the whole tank is food grade SUS304/SUS316/AISI304/AISI316

Etched and passivated inner surface with a roughness less than 0.4 µm to avoid the contamination spots that are hard to wash

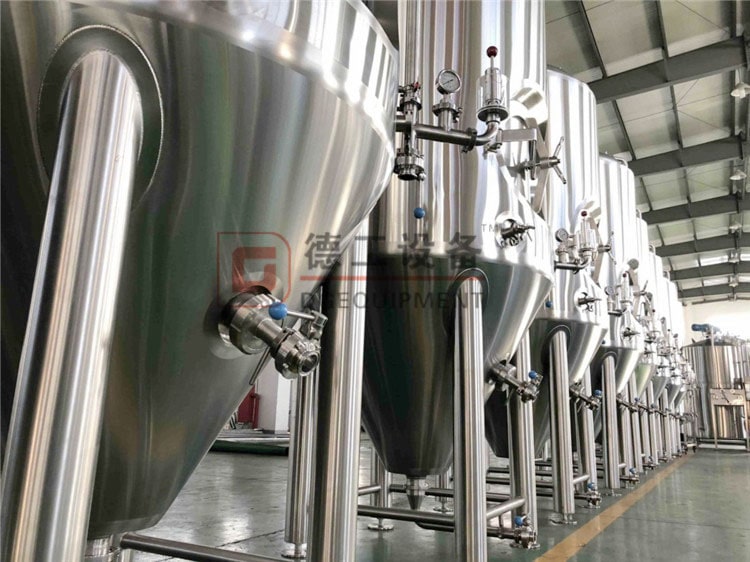

fermentation tank


Cooling

2-3-4 cooling zone on cylinder and cone depending on the size

Cooling jackets made with the spot welding technology

100 mm PU foam insulation with a thermal conductivity of 24 mW/mK for the safest storage of heat and economical energy use

100 % stainless steel coating available in a variety of surface finishes such as 2B pickled, different surface roughnesses, polished and marbled


Fittings

All pipes and fittings are made in accordance with DIN Standard

Material quality of all fittings are food grade SUS304/SUS316/AISI304/AISI316

Vacuum and pressure safety valves, complying with all standards and positioned for an easy cleaning

Stainless steel pressure gauge, optionally can be ordered in flat membrane version

Technological pipings on the tank (beer pipe, yeast pipe, CIP pipe) produced with using the bending technology where no welding is used resulting that there are no infection points that might occur at welding jointst

Depending on tank sizes, each tank equipped with 1-2-3 pcs of accurate thermal sensor


Carbonation stone of fermentation tank

=

Side manhole fermenter


Delivery&Packing

We will choose Wooden case to protect the equipment from being damaged in transit.If the equipment's height exceed the container's height,we will put down the equipment and fix it by iron frame.

Packing-DEGONG


Company

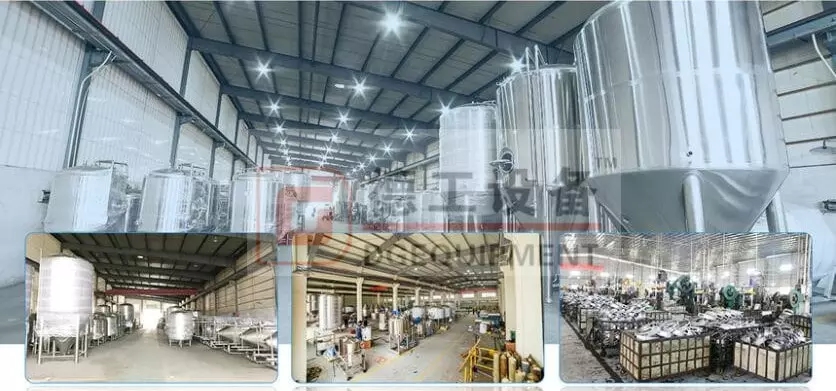

gongzuojian
