| Brite beer tank 5bbl 7bbl 10bbl 15bbl 20bbl carbonate and serve |
A brite tank (also known as a bright tank, bright beer tank, etc.) is used for carbonation of beer, as a serving tank. Our bright beer tanks are ideal for micro breweries and nano breweries where space may be limited. These brite tanks can be used for storing and serving carbonated beer and eliminate the hassle of cleaning beer kegs.
20bbl stainless steel brite beer tank in our factory yield
Like all of our products, we only use sanitary fittings and hardware. See below for details. Many sizes are possible, if you don't see the size you want, please contact us with your needs.
Our brite beer tank comes with a sight glass for determining the volume of beer in the tank. This is accomplished by providing a valve and hose barb at the bottom of the tank and a hose barb at the top of the tank. Using pressure rated clear beer tubing (not included), you can measure the volume in the tank.
Fermentation tanks and brite beer tanks
Prefer non-jacketed brite tank options?
Single wall brite beer tanks
Our 20 bbl brite tank has a unified jacket that keeps your beer cold down to the last pint – it functions as either a serving tank or a packaging tank. The shadowless side manway helps ensure more effective cleaning via CIP.
This jacketed 20 barrel brite tank is a great option for a standard brite beer tank for brewers who want precise temperature control for lagering brite beer or for serving tanks on display. If walk-in cooler space is at a premium for your location, easily install this brite tank on your glycol line and put it on display! This 5 bbl brite tank can also be used for kombucha brewing.
Hops port on the dished head;drain outlet;support legs
Material: Premium food grade 304 Stainless Steel
Features of this 20 bbl brite tank:
Shadowless Side Manway for easy cleaning
Sample valve or quality testing
(2) Butterfly valves
Adjustable feet for leveling on uneven floors or fine height adjustments
CIP arm with port for pressure gauge (gauge sold separately) and rotating spray ball
Self-cleaning sight glass fittings use clear draft beer line (not included)
Inner tank material thickness is 3mm, jacket and outer shell thickness is 2mm
0.15Mpa working pressure (0.3Mpa available as special order)
Ports for carbonation stone, PRV (carb stone and PRV sold separately)
Also known as a Bright Beer Tank
Optional accessories:
Carbonation Stone
Pressure Relief Valve
Pressure Gauge
Butterfly Valve on the CIP arm

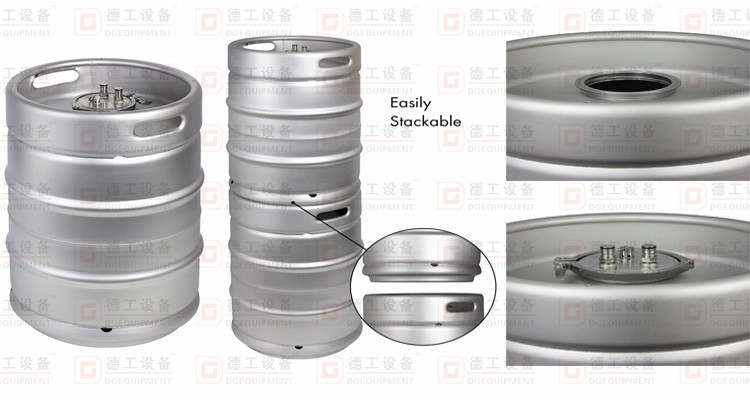

Available beer kegs
| Contact Alice today |
Our experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With our brewhouse you will hit your gravity targets quicker and run up and down the platform less often.
