DGET-1000L
DGET
8438400000
A complete brewing process requires many brewing parts. Milling, brewing, heat exhange, fermentation, maturation, filling, packaging, water treatment, filter and other auxiliary equipment.Brewing is the production of beer by steeping a starch source (commonly cereal grains, the most popular of which is barley) in water and fermenting the resulting sweet liquid with yeast.Most beer is fermented with a brewer's yeast and flavoured with hops.
| Turnkey brewery equipment: |
--Brewhouse

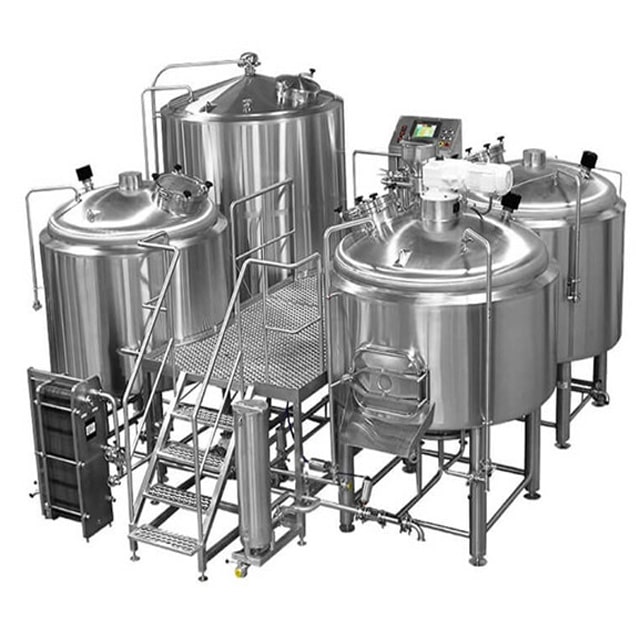

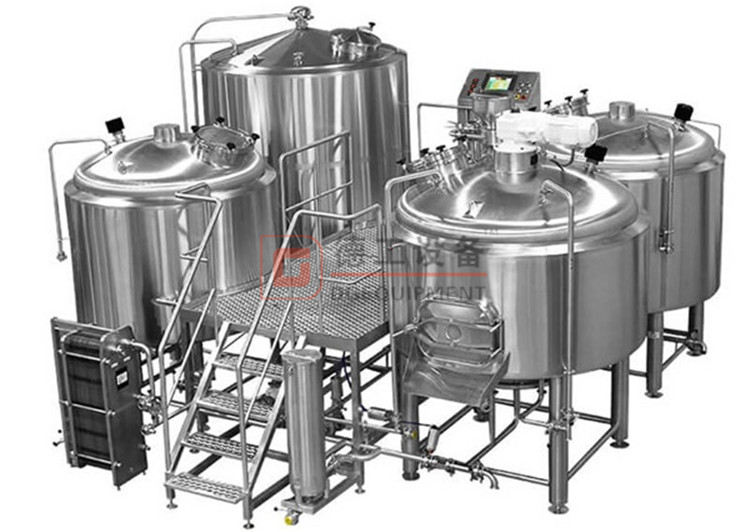

Multi-vessel customized brewhouse
Mash & lauter tun
Vessel bottom and cylindrical sides are insulated with a minimum 100mm of high heat, insulation, glass top manway. Solid Rectangular side manway allows for easy access and grain out portage.
304ss Wedge Wire Screens, 0.7mm constructed and firmly affixed to vessel floor, removable sections allow screen sections to be removed.
Grist Hydrator Assembly is top-mounted with post hot/cold liquor mixing station for consistent grist hydration of the Mash.
Under Screen CIP System with sprayer head assemblies allow the bottom of the Lauter screens and vessel dish bottom to be cleaned in place.
RTD Mash Temperature sensor for monitoring internal mash temperature inserts into welded Thermowell on vessel sidewall.
Lauter Tun Manometer level gauges to monitor mash bed pressure differential.
Adjustable Footpads on plates
Brew Kettle/Whirlpool with HLT
304ss Brew Kettle / Whirlpool . Glass top manway. Requires external venting to the outside and make up air per local codes.
Kettle Temperature RTD sensor for accurate process control.
Wort Pump, with variable speed control.
Whirlpool with an integrated tangential inlet to create ideal whirlpool formation
CIP Tank Spray ball CIP spray head assembly.
Brewhosue pipelines,raker ,false bottom filter
Control Panel
Semi-automatic control, with automatic control PLC optional
Integral Controls allows for intuitive Brewhouse operation and Cellar
Control functions from one central location on the Brewhouse platform. Includes readouts and controls for HLT, CLT, Brew Kettle, Lauter Tun,fermenter
Pump Controls and Variable Speed frequency drive for Mash Pump and on/off controls for Hot Liquor Pump.
Semi-automatic control panel
Plate Heat Exchanger
SUS304 2-Stage Plate Heat Exchanger for chilling wort
Two stage heat exchanger
Ergonomically designed working platform
SUS304 Platform between Brewhouse Vessels with stainless non-slip grating, stairs, and handrails.
SS construction working platform
Fermenters

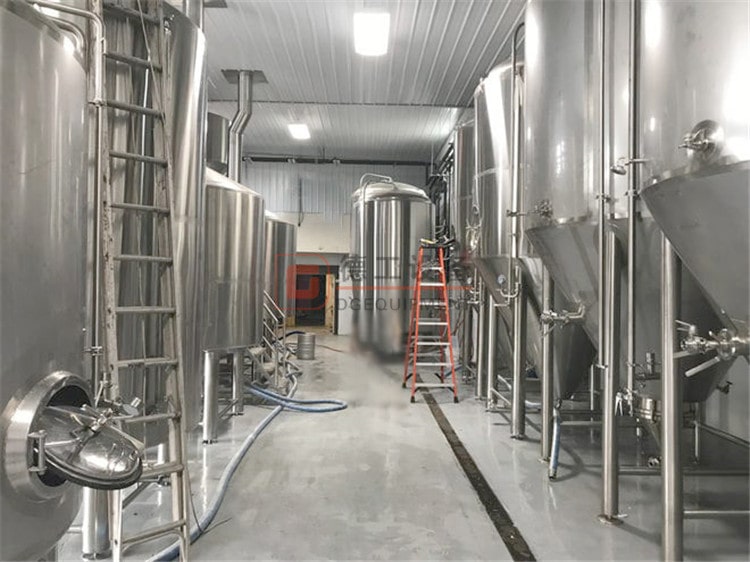

Brewery fermentation tanks
Basic Features:
304SS with Dual Glycol Jacket and insulated with 100mm PU insulation.
Top manways offer superior sanitation and ease to add hops to the vessel.
Rotate Racking Arm allows for easy racking arm rotation, without the need to loosen any clamps. Simply turn the handle and the racking arm rotates.
Entirely 304ss Butterfly Valves, Bottom port to facilitate yeast removal.
Entire body a sanitary 2B or #4 finish.
Pressure Vacuum Relief Valve, Tri-Clamp Connection.
CIP Tank Spray Ball has spinner spray head assembly and exterior CIP arm.
Blow Off Arm helps assembly clear of primary fermentation blow off exhaust and residue.
Fermentation tanks part
| Our company: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
DGET’s certification
| Packaging & Delivery |
1. Main tanks, vessels and machines will be packaged with steel frames.
2. All items wrapped with soft package for protection.
3. Standard shipping containers will be used for general purpose.
4. All equipments will be loaded into containers according to exact container layout drawings.
5. After loaded into containers, all equipments will be well fixed to the containers.
Fermentation tanks loaded into containers
| Contact information: |
DGET-brewing equipment for launching your own facility or private brewery for selling beer in selling points.
Warmly welcome your visit, please contact me quickly for more brewery equipment information.
