DGET-10BBL
DGET
8438400000

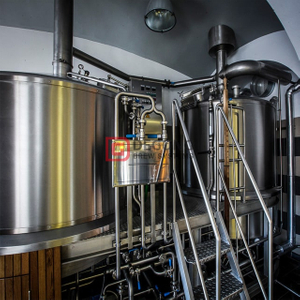

2 vessel microbrewery equipment
Work platform with staircase and guardrails. The central layout provides easy access to all workstations and connections, as well as great control and supervision over the entire work process. The anti-slip and washable surface provides a safe work environment and easy maintenance.
| 10BBL Steam heating brewhouse: |
10 BBL Steam heating Brewhouse Includes:
Mash Tun / Lauter Tank
Brew Kettle / Whirlpool
Stainless Steel Work Platform with Handrails
20 BBL hot liquor tank
Fully Welded Sanitary Process Piping System
Complete Electrical Package
Dished top and spent grian port
(1) Mash Tun/ Lauter Tank Assembly:
1400mm Inner diameter all stainless steel 304 construction, dished top.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.

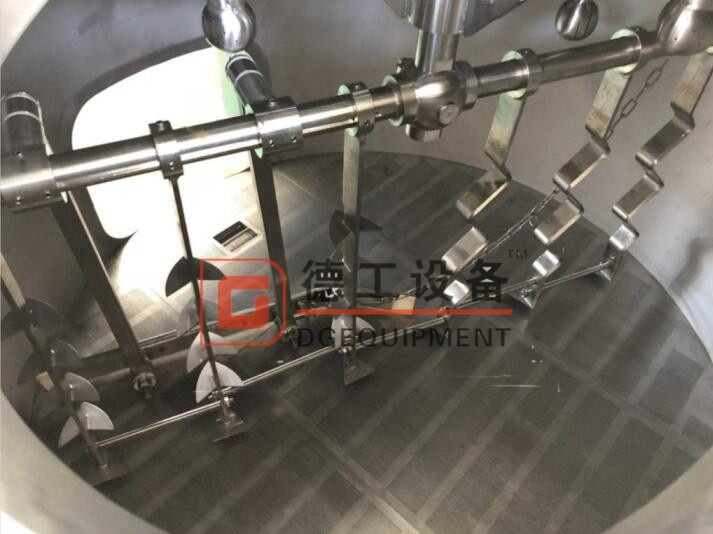

Mash mixer motor and gear box assembly installed on top of unit. Features to include:
Motor with VFD installed.
Stainless steel mixer paddle.
Auto mash out assembly to include
1-Removable mash-out Chute discharging to a remote waste tub.
2- Internal mash grid assembly with removable screens for ease of 3- 370mm sealed access door.
4- 350mm sealed top man door access.
5- Thermo-well installed with RTD for measuring temperature in Mash / Lauter Tun (Please note that we recommend a Digital wand to measure multiple places in Mash / Lauter Tun to gauge an accurate temperature).
1- Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
2- Leg assembly with standard anchor pads.
3- 100mm polyurethane insulation with polished stainless steel outer shell.
Grist hydrator assembly included.
Single or Two stage plate heat exchanger
（2）Brew Kettle Assembly:
1400mm Inner diameter all stainless steel T-304 construction, dished top.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained.
Internally mounted/removable trub dam.
Internally mounted ladder assembly for easy cleaning access.
1-Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
2-Thermowell installed with RTD for measuring temperature in Brew Kettle.
3-Leg assembly with standard anchor pads.
4-100mm polyurethane insulation with stainless steel outer shell.
5-159mm steam flue with condensation gutter and drain port
Sieve plate
(3) 20 BBL Hot Liquor Tank Assembly:
1-1400mm inner diameter vessel. Total height 2700mm
2-Dished top and bottom.
3-Fully welded steam jackets with rear protruding steam/condensate nipples.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained.
4-350mm sealed top man door access.
5-Thermo-well installed for your supplied temperature probe.
6-Leg assembly with standard anchor pads.
7-100mm polyurethane insulation with stainless steel outer shell.
8-The HLT includes an electrically actuated steam valve that is pre-wired into our control panel for temperature control.
9-Hot liquor tank pump,motor, all stainless steel 304 assembly
Top access hatch
Sanitary Piping System:
1-Stainless steel work platform with handrails.
2- Fully welded sanitary process piping package including:
All Sanitary Gaskets
Butterfly Valves;Site Glasses;Tri Clamps
3-Transfer pump,motor.
Pump mounted to the bottom of the access platform and complete with all piping connections.
Dual stage all stainless steel Mueller heat exchanger assembly mounted to the underside of the access platform. We do offer a single or two stage heat exchanger with our systems dependant of your specific needs.

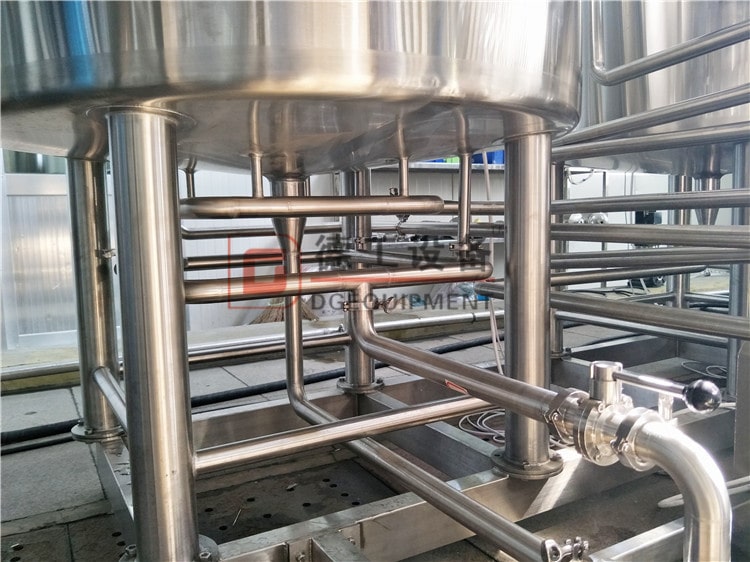

Brewhouse pipeline
Our main system power requirements are standard 380V 3 phase power. Alternate supply power options are available upon request. Some cost increases may apply.
| Fermentation tank features: |
Double jacketed 60º cylindro-conical thermal-insulated fermenters
These thermal-insulated fermenters are also cylindro-conical at 60ºC, they are made of stainless steel 304 and they have a double jacket in the cylinder and cone.
Fermentors/Unitanks Stock

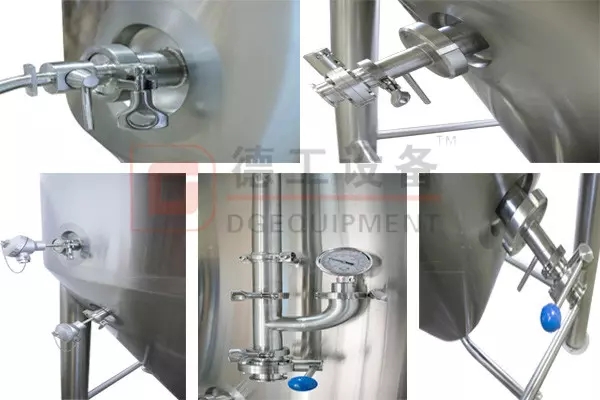

Fermentation tank details
10BBL Beer Fermentor | Material:stainless steel 304 1.Inner thickness:3.0mm;outer thickness:2.0mm 2.Jacket thickness:1.5mm 3.Inner surface treatment:welds grinded to Ra 0.6um 4.Mirror surface finish inside. 5.Insulation: Polyurethane-thickness 100mm 6.cone 60 degree resist compression design,dripping 7.Heat exchange area: 3.5 m2 8.Vessel pressure:1.5 bar/3.0 bar |
Yeast adding tank | Adopts sus 304 stainless steel fine polished process,outer stainless polishing. Adding yeast sight glasses,aseptic air mouth,and wort pipe connection mouth. |
| Our company: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Our equipment is displayed at the international exhibition
| Packaging & Delivery |

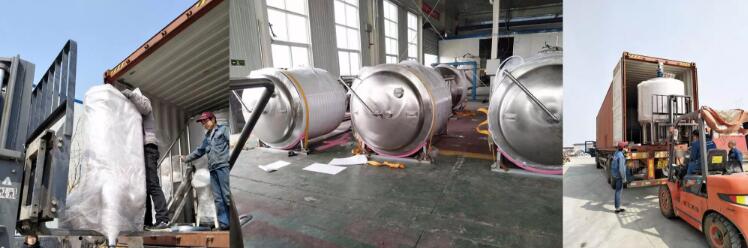

Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready to ship
| Contact information: |
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
