The fermentation area consists of a specific (at the customer’s choice) number of CCT (cylindrical-conical tanks) of a corresponding capacity and a control panel containing the automation for maintaining the desired beer temperature inside each CCT.
|Thickness of material (mm):|
1000L bright beer brewing equipment fermentation tank
CCT have a cooling jacket over the entire height of the cylindrical and conical part. ССT are warmed by polyurethane foam 70-100 mm thick. The external covering of CCT is made of food mirror stainless steel.

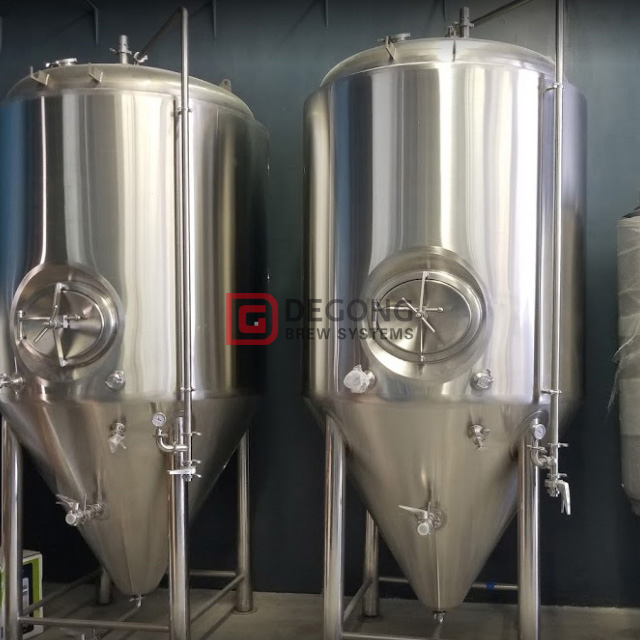

Double jacketed 60º cylindro-conical fermenters
These fermenters have the minimum characteristics that we advise for the professional production of beer. They are made of stainless steel 304, they are cylindro-conical at 60º and they have a double jacket in the cylinder and cone to control the temperature.
The temperature regulation is also precise. The control system allows for precise regulation of the temperature of the fermentation for each style of beer being made. Furthermore, it allows you to lower the temperature 2-3ºC for two or three days to clarify the beer once the fermentation has finished.
|Fermentation tank main features:|
§ Designed and manufactured according to ASME pressure vessel standard-ASME VIII.
§ All material according to ASME standard. (Certification is available upon request.)
§ Inner Shell: 4mm, 304 Stainless Steel
§ Outer Shell: 2mm, 304 Stainless Steel
§ NB registration according to customer’ requirement and federal law.
§ Inner cooling jacket design pressure 3bar
§ 25% head space for fermenting process.
§ Minimum 3 inch Thermal Polyurethane Insulation with both cone and shell coolant jackets.
§ Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.
§ Tank inner side is polished within 0.6µm sanitary finish.
§ Tank outside is 2B or #4 (brushed stainless) stainless steel plate
§ Shell and bottom cone cooling jacket for better temperature control.
§ Pillow Plate on shell body and cone;
§ Hook outside on the shell for ladders.
§ Other customization possibly available upon request.
Fermentation tank with side manay

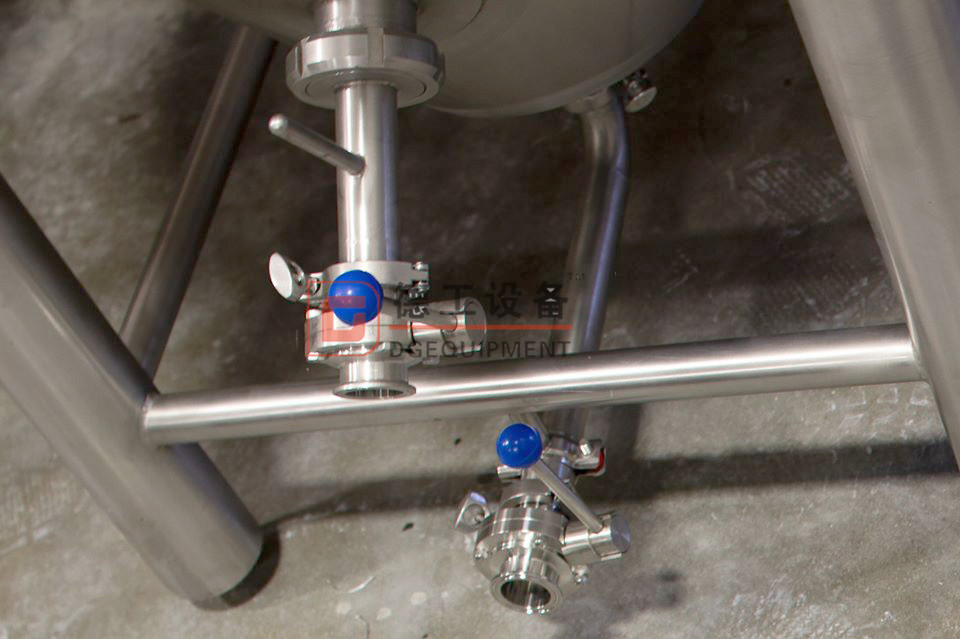

Rotating racking arm and drain outlet

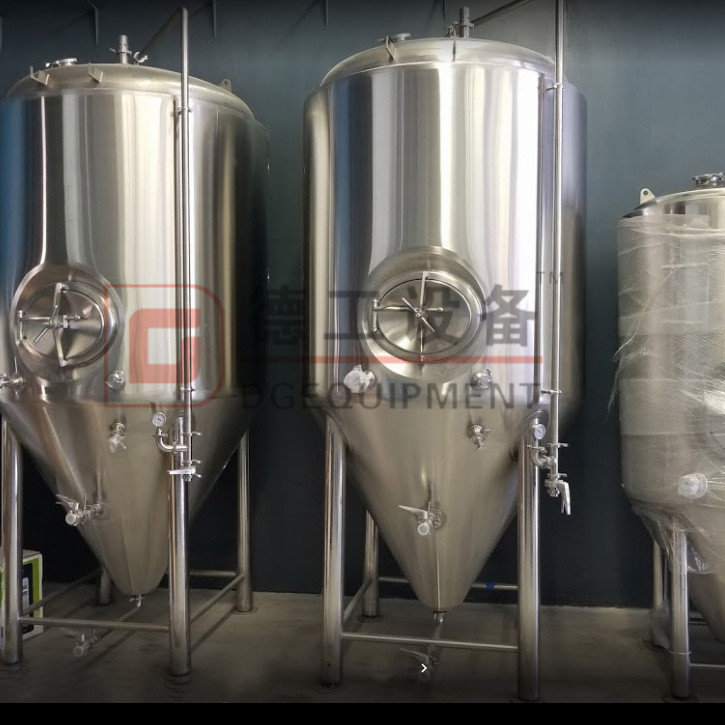

Brewery equipment fermentation tank
Safety valve,racking arm and pressure gauge
3D model fermentation tank

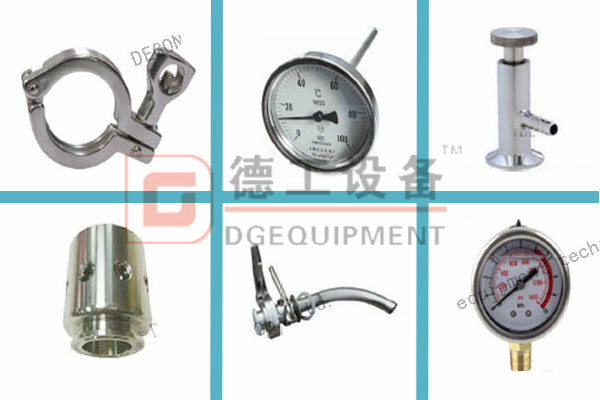

|Fermenter main components:|
§ Manhole on the top or front
§ Level Indicator (standard) for inner tank.
§ Vacuum/Pressure combined valve. Tank top fittings, pressure gauge.
§ Built in rotary spray ball within the inner tank for cleaning.
§ Sanitary sampling valve, with the shortest connection on the tank, easily CIP cleanable.
§ Other customization possible upon request.
|DGET brief introduction|
|Packaging & Delivery|
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment fermentation tank
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
