| Material: | |
|---|---|
| Insulation: | |
| Control system: | |
| Electric component: | |
| Heating method: | |
| Quantity: | |
DGET-1000L
DGET
8438400000
| Production of beer brewing equipment |
Mill System | |||
01 | Mill Machine | 1 piece | 500Kg/h; Breaker Roll Type; Adjustable mill degree; Power:2.2kw; Voltage:230V; Model:Fm-011; Faster Roller Speed: 700rpm Crushing Particle Size: Adjustable Ratio of Magnetic Metal Material:≤0.003g/kg Temperature of Rollers after Production:≤56℃ |
Basic information | 1.The beer brewhouse contains four functions,mash,lauter,boiling and whirlpool.You can combine the functions in two tank or three tank freely.And we usually add a hot liquid tank and cold water tank to improving mashing efficiency. 2.Heating method,there are electric heating,steam heating and gas heating.For 10bbL beer brewhouse system,we often recommend steam heating. |
Technical parameter | Useful capacity:1400L,total capacity:1000L Heavy duty false botton with pillar support system Fully insulated vessel SS CIP High-flow rotary spray ball with 360 degree of coverage Interior light Sparge ring assembly Top mahway(tempered glass) Side manway for spent grain out Gap of the sieve is 0.7mm automatic spent grain removable system |
Other component | 1.SUS Plate heat exchanger 2.VFD motor of rake/agitator.VFD motor of wort pump 3.Pipelines&valve 4.ABB/Siemens motor 5.Platform 6.Oxygen system 7.Grant 8.Grist&mash in system 9.Yeast feedder 10.Hops filter |

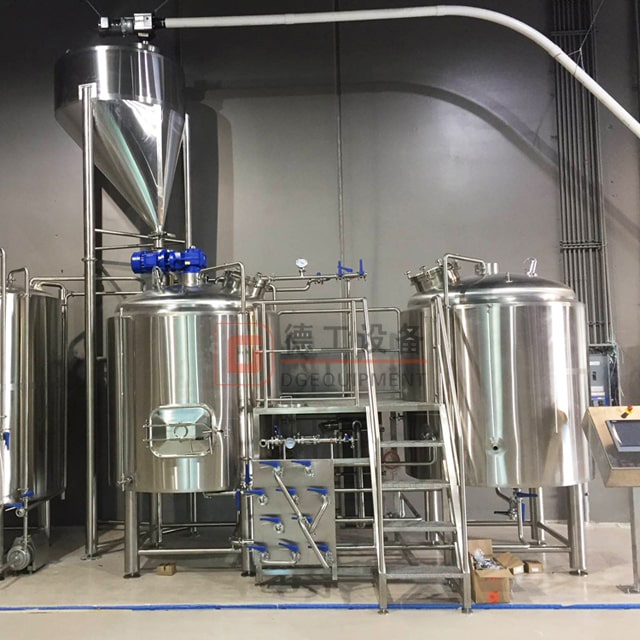

3-vessels beer mashing system
mashing details

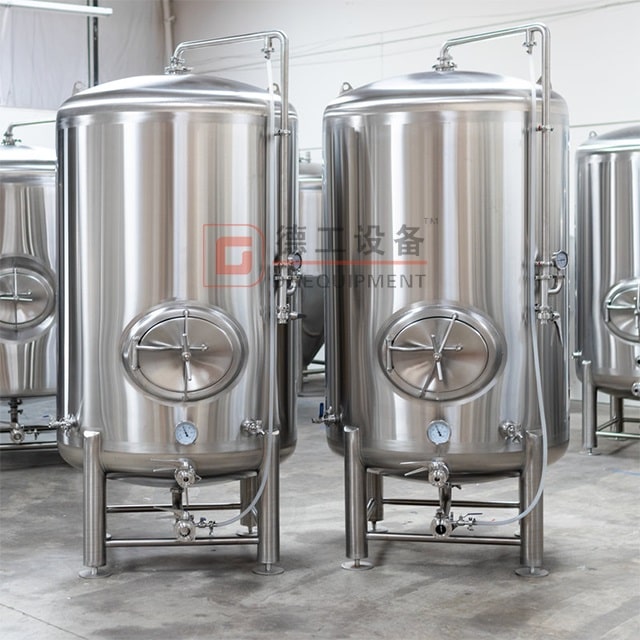

Basic information | The fermentation vessel is equipped with a separate cooling zone that can be individually controlled and fully insulated. Includes CIP tube and cleaning head. The materials and surface treatment used depend on the intended application and customer specifications. |
Technical parameter | Stainless steel 304 sanitary construction 100% TIG welded and sanitary polished Design pressure is 0.3MPa,using pressure is 0.15MPa 4 heavy duty stainless steel legs with adjustable height and leveling footpads Interior:stainless steel 304,thickness 3mm Interior treatment:Mirror polishing Outerior:stainless steem 304,thickness 2mm Jacket:stainless steel 304,thickess 1.5mm Insulation:100mm Polyurethane 60 degree conical bottom Heat exchanger area:5.89m2 Side mahole |
Cleaning system | |
Component | Washing pump Alkali tank Sterilization tank Control box |
| Features | Stainless steel304, thickness: 2mm Inner surface treatment: welds grinded to Ra 0.6µm. Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming. |
Cooling system | |||
01 | Glycol tank | – 1pc | 1.Material: Inner(SUS304),thickness:3.0mm; Outer:2.0mm(Stainless steel); 2.Insulation: Polyurethane-thickness 100mm. 3.Temperature mode: PT100 temperature probe,temperature transmitting, temperature control panel display |
02 | Refrigerating unit | -1pcs | Medium：Freon R-404A Working voltage:230V |
03 | Circulate pump | – 2pcs | Flow：3 m3/h, Lift：25m, Power:0.75KW; |

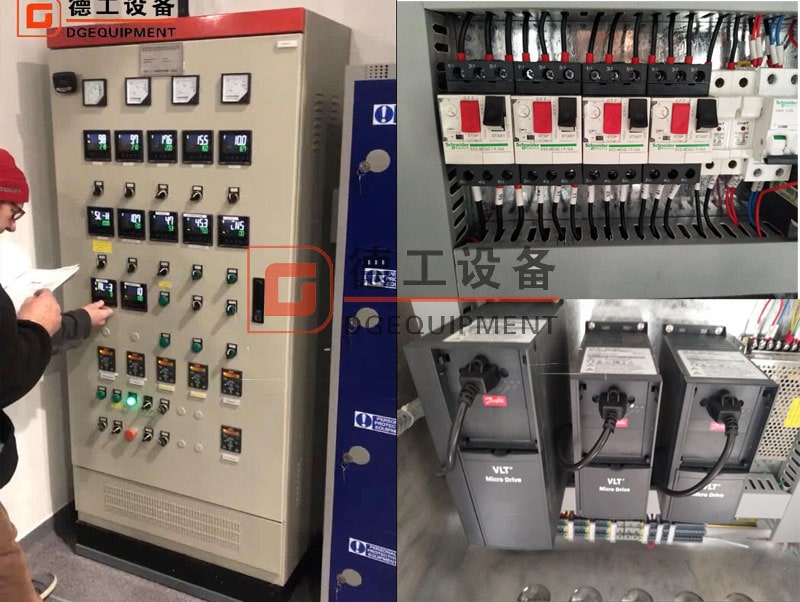

Control system | |||
01 | Mashing control | Manual operate Instrument Semi-Auto-control European standard Siemens,Schneider,Omron component 1 set
| Mixing, rotation, wort pump |
02 | Fermenting control | Temperature, pressure, lamp | |
03 | Cooling control | Machine unit, pump, temperature | |
04 | Cleaning control | Cleaning pump | |
05 | Miller control | ||
Specifications：
Available capacity of 50L to 10000L system
SUS 304/SUS316/Copper clad,Inner Thickness=0.3mm,Outer thickness=0.2mm
Optional heating style of steam, electric and direct fire for brewhouse tanks
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
PLC control panel with Siemens,Omron,Schenider element,and accord with EU standard
VFD controlled reducer and wort pump
Assembly sanitary rotary spray balls for cleaning
PU insulation,thickness:100mm
Temperature sensor(RTD) in a thermowell
Rake and mash agitator assembly with top/bottom reducer

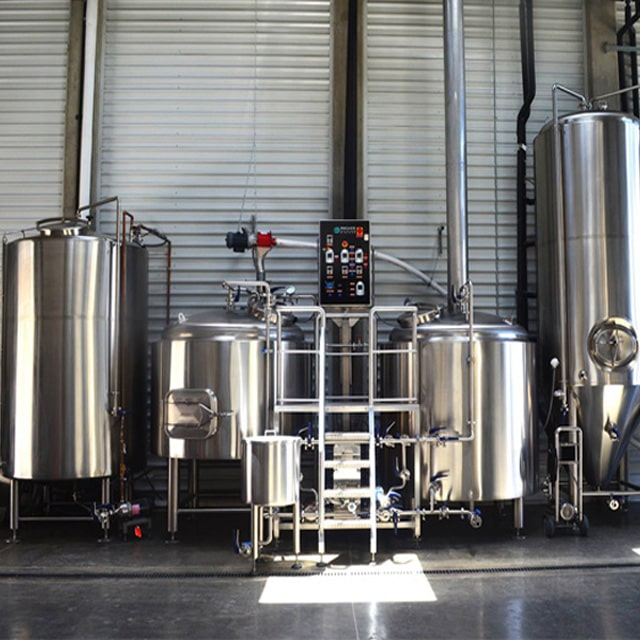

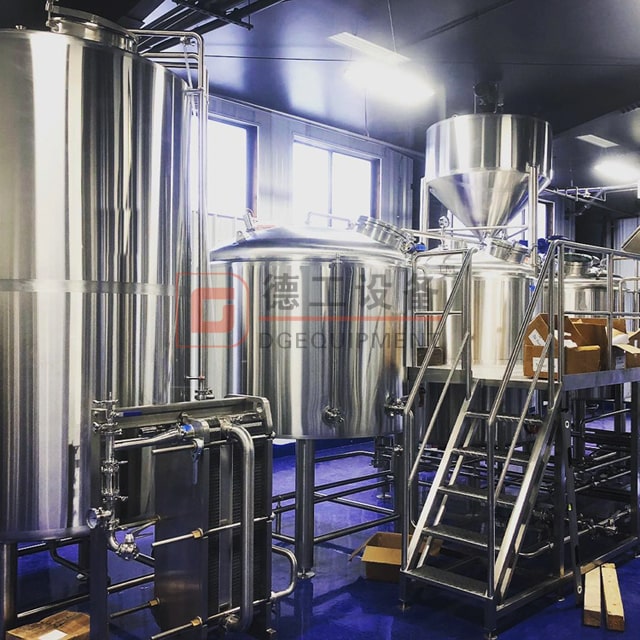

| Our equipment shows in customer's brewery |
| Delivery |
| Service |
