| Thickness of material (mm): | |
|---|---|
| Material: | |
| Heating method: | |
| Insulation: | |
| Certificate: | |
| Quantity: | |
DGET-4000L
DGET
8438400000
1.mash tun
Equipped with suitable jacket and mixer to ensure temperature rise rate, avoid coking
large volume, as well as wort boiling, improve the overall system’s efficiency.
2.lauter tun
Combined plow knife structure increase lautering efficiency,increasing the diameter of the center circular construction has improved lautering efficiency and spend grains discharge speed greatly. Use specially designed raking arm to raise main shaft seal, avoid leaking to improve sanitation.Can be used as mash tun, meet a variety of process demands of craft beer.
3.boiling tun
With inner heater, jacket, mixer. This design makes the kettle tun can be used as adjunct cooker or mash tun, meet the special demands of craft beer process; benefit for heating low-temperature wort more.Inner heater functions to wort forced circulation
4.whirlpool tun
Specially designed whirlpool tun bottom accord with hot trub sedimentation characteristics, combined with specially designed hot trub collection zone, can make the hot trub more closely and be discharged directly no need for washing, avoid remixing hot trub into wort when we pump the wort to PHE.

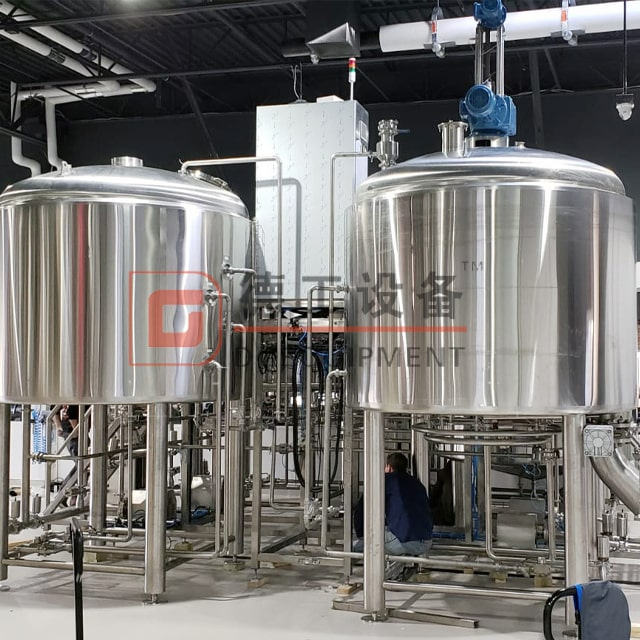

4-vessel brewhouse system
4-vessel brewhouse system 3D drawing
We are able to supply fermentation tanks and bright beer tanks that meet international standards for pressure vessels. All tanks can be designed and manufactured according to our customer’s specific requirements.
Typical specifications include:
60°& 70°bottom cone angle for fermenters
Dished bottom for bright beer tanks
25% head space for Fermenters; 10% for Brite Beer tanks.
Multiple zone cooling jacket.
Shell and Cladding: 304 stainless steel.
100mm Polyurethane insulation.
Butterfly valve, sample valve, pressure safety valve and anti-vacuum valve are optional.
Tri-clamps and gaskets, port for pressure gauge.
Stainless steel legs with adjusted footpads.
Side or top manway.
CIP pipeline with spray ball
conical fermentation tank
Cooling unit always includes glycol chiller, glycol water tank and sometimes an extra cold water tank. It provides cooling media to both wort cooling and fermentation cooling
Used for cleaning and disinfection of whole set of equipment
Movable Alkali tank & Sterilization tank, can be heated by electricity or steam
Used for Electrical control of whole set of equipment
It has mainly 2 types. PLC type and digital type
