1BBL-10BBL China Brewing Equipment Cylinder Conical Fermentation Tank Customized Brewhouse System for Sale

DEGONG turnkey beer equipment

Brewhouse system combination

• Combined mash/lauter Tun(SUS304)

• Combined Wort boiling/whirlpool(SUS304)

• Motorized rakes in Mash/Lauter Tun

• plate heat exchanger

• operation plateform

• VFD to control motor speeds

• Condensation Collection

• Level Gauge

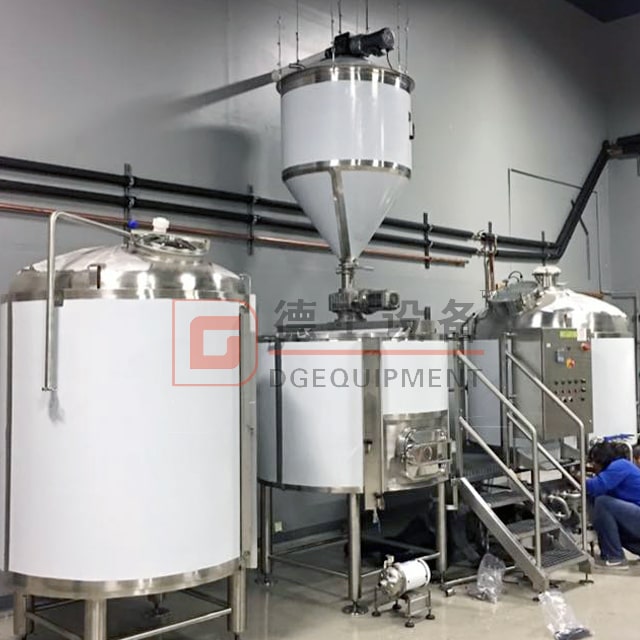

3-vessel mash/lauter tun+boiling/whirlpool tun+hot water tank

DEGONG brewhouse system features

1. Mash tun with a cone head, shell bottom, heat jacket and an interior agitator, made with 304 stainless steel.

2. Lauter tun with cone head, flat bottom and racking machine inside, made with 304 stainless steel.

3. Boiling tun with cone head, cone bottom and an external boiler for heating, made with 304 stainless steel.

4. Whirlpool tun with cone head and slope bottom made with 304 stainless steel.

5. Balance device with sight glass made with 304 stainless steel.

6. Sanitary centrifugal pumps

7. Wort cooler plate-type heat exchanger for cooling wort, made with 316 stainless steel.

8. Hot water tank with cone head, cone bottom and plate-type heat exchanger for heating water, made of 316 stainless steel.

9. Cold water tank  includes plate-type heat exchanger for cooling water, made of 316 stainless steel.

10. Brewhouse includes a operation plateform for observing the vessels from above, along with supporting staircase and safety handrails.

the mash system is running

Fermentation system combination

Fermentation tank with the bottom of cone, mechanical regulator valve, pressure valve, breather valve, sample valve, made with stainless steel 304

Bright beer tank with Titanium rod, carbonation stone, temperature probe, breather valve, cleaning ball, mechanical regulator valve, made with stainless steel 304

Yeast adding tank made with stainless steel 304

DEGONG fermentation system features

1. The inner wall of the tank must be smooth and flat, and the stainless steel should be polished, with no uneven surface and no granular protrusions.

2. The top part of the tank. The top of the tank is a dish-shaped or tapered head. The central opening is used to place a detachable large-diameter flange to install CO2 and CIP pipes and their connectors.

3. The tank is a cylinder and is the main part of the tank. The height of the fermenter depends on the diameter and height of the cylinder. The outside of the tank is used to install cooling devices and insulation layers, and a certain position is installed to install temperature and pressure measuring elements.

4. The bottom of the cone. The included angle of the cone bottom is generally 70 °. The height of the cone bottom of the fermentation tank is related to the included angle. The smaller the included angle, the higher the cone bottom. The outer wall of the cone bottom should be provided with a cooling layer to cool the yeast deposited on the cone bottom.

conical fermenter drawing

Fermentation tank advantage

• Laser-welded cooling jackets in a variety of configurations

• Automated seam welding of all shell components

• Tank readily customized to meet clients requirements

• Designed and built to International Pressure vessel standards

If you are interested in beer equipment, get in touchi with me freely.
