10BBL turnkey industrial stainless steel fermentation tank for sale

Degong's fermentation tank is certified with ISO,CE and TUV,featuring high quality and being applied in beer bar,restaurant, beverage factory all over the world. It can be used in commercial and industrial brewery for brewing the unique taste of beer. The fermentation system is consisted of fermenter,bright beer tank, yeast tank and other accessories under the technical view.

Quantity:
  • DGET-10BBL
  • Degonget
  • 8438400000
Overview


Degong's fermentation tank is certified with ISO,CE and TUV,featuring high quality and being applied in beer bar,restaurant, beverage factory in more than 50 countries all over the world. It will be the best choice for the  buyer who want establish the  commercial and industrial brewery for brewing the unique taste of beer. The fermentation system is consisted of fermenter,bright beer tank, yeast tank and other accessories under the technical view.


fermention tank (2)_副本

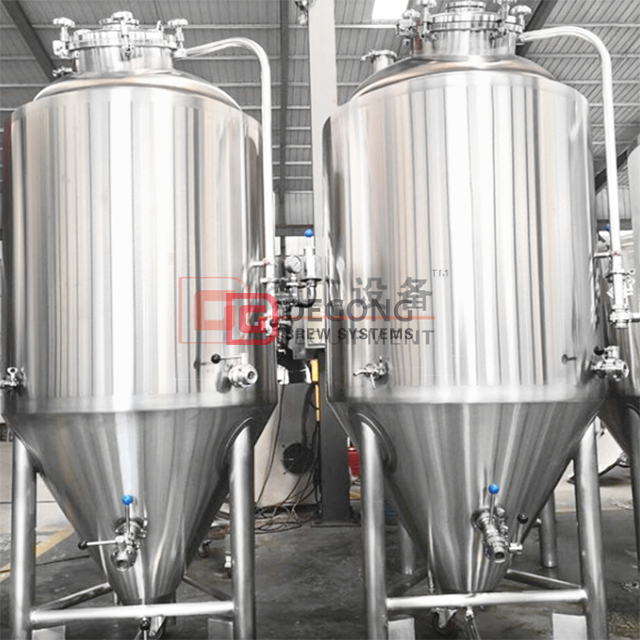

10BBL fermenter of DGET


Fermentation tank


Depending on the type of yeast, the beer will be top or bottom fermented. The beers are given these names because after fermentation the yeast will settle either at the top or the bottom of the fermentation tank. When the fermentation process has been completed, the yeast is removed. Now, the green beer already contains all the elements of the final product.

Technically speaking, the Fermentation system is consist of fermenter, yeast tank, brite beer tank , and accessories.

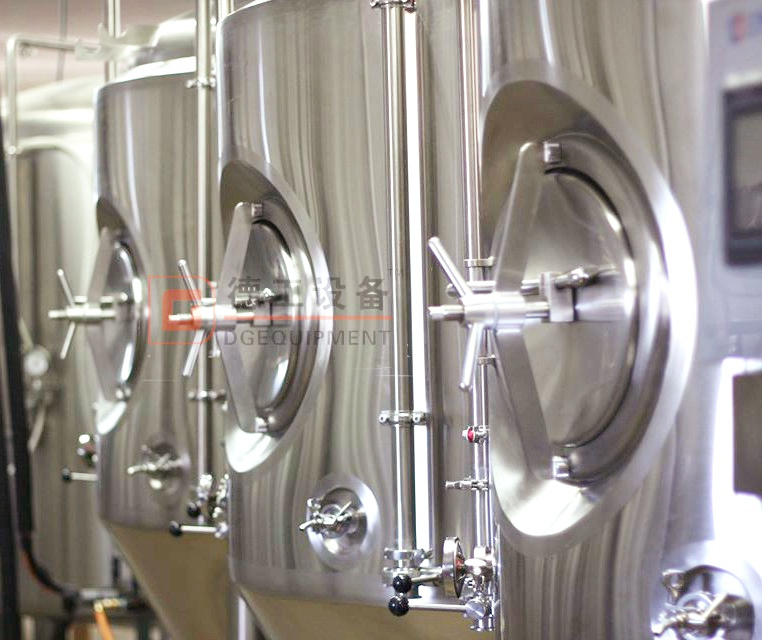

fermention tank detail

fermentation tank with side man hole


Technical parameter:

Material  (SUS304) thickness Inner thickness: 3.0mm; Outer thickness: 2.0mm;External-Jacket thickness: 1.5mm
Interior Finish Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)
Exterior Finish Oil brushed finish (2B, 8K Mirror finish optional)
Inner treatment Interior full polished to 0.2~0.4 μm without dead corner
Insulation Insulated with high density Polyurethane foam 100mm
Cooling method Glycol Jacket

Vessel Pressure

practical pressure:1.5 bar;design pressure:3.0 bar

Equipment with
cone 60°resist compression designdripping


Ancillary components:

  • 100% TIG welding with pure argon gas shield

  • Glycol Jacket: Dimpled plate on cone and side

  • Sanitary side mounted manway with pressured door

  • TC connected CIP arm with 360° coverage spraying ball

  • CO2 blow-off arm with butterfly valve

  • Full sanitary metallic sealed sampling valve

  • Mechanical safe valve PVRV 2 bar on top

  • Hydraulic shock pressure gauge on CIP arm

  • Rotating racking arm and port on cone with butterfly valve

  • Tri-clamp discharge arm with butterfly valve

  • Thermowell for high accuracy temperature sensor

  • 4 pcs completely SUS304 heavy duty legs with leveling pad and legs support

  • Dry hopping port 4'' TC with solid end cap


Cold water tank

The cold water tank is mainly to provide the cold water tank to cool down the temperature of hot water during the first phase of wort cooling process. In this way, the wort can be cooled to desire temperature much easier at second phase by glycol water tank. In other perspective, it can lengthen the using life of chiller, which is a also a necessary part of a whole brewery system.

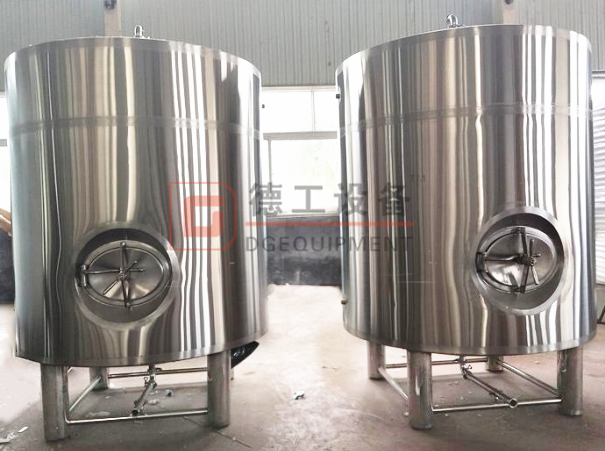

cold water tank



Brite beer tank


The bright beer tanks made by Degonget use top class stainless steel (SUS304), surface treatment can be 2B or precise polish or mirror polished. All fittings installed with tanks using top brands like ABB, Siemens, Omron, etc.

Bright beer tanks is a piece of brewing equipment as they serve to mature, clarify, and carbonate the beer after fermentation. In some cases, they also double as serving vessels in brewpubs, eliminating the need for kegs.

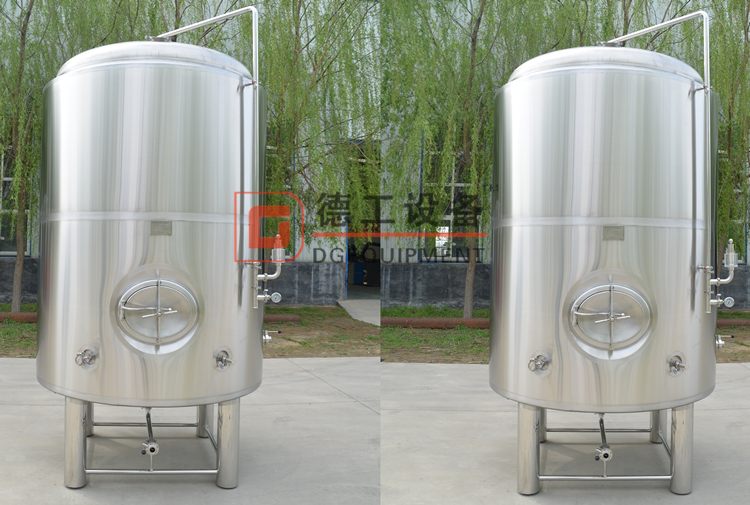

DSC_1054_副本


Technical parameter:


  • Stainless steel(304)sanitary construction

  • Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm

  • External-Jacket(SUS304) thickness: 1.5mm

  • 100% TIG welded and sanitary polished

  • Design pressure 0.3 MPa, working pressure <0.2 MPa.

  • Interior Finish: Sanitary 2B finish, Pickled and Passivity;

  • 4 heavy duty stainless steel legs with adjustable height and leveling footpads

  • Insulation: Polyurethane-thickness 100 mm.

  • CIP arm and spray ball 360 degree coverage. Easy clean slide over pipe connection with keeper pin.

  • Pressure gauge

  • Thermometer gauge

  • Lifting lugs

  • Side man way door

  • Carbonation stone assembly

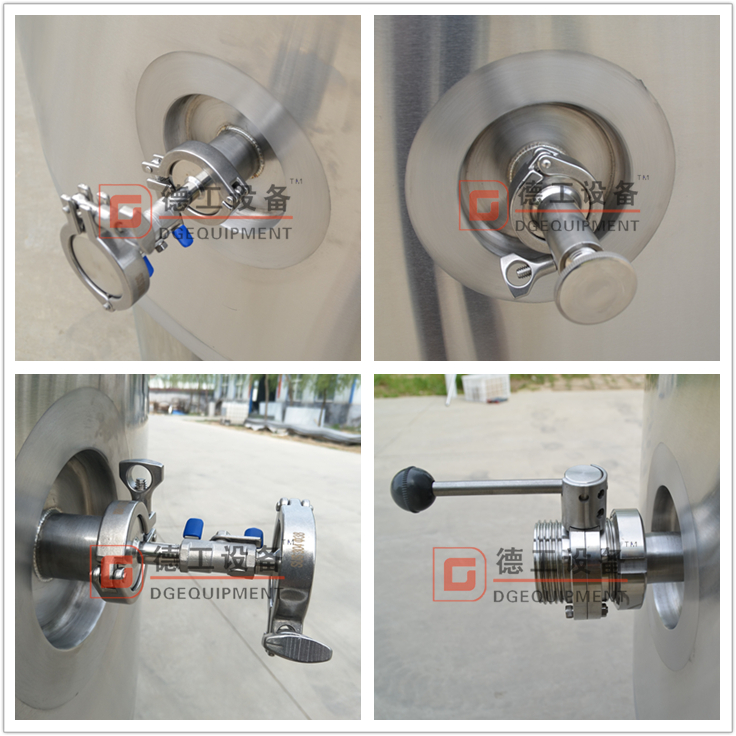

DSC_1026_wps图片_副本


Packing&delivery


Packaging type : standard wooden package

Package details : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

Delivery: by sea



未标题-1


Our certificate


With the high standard of brewery equipment both in row materials and manufactures, DEGONG have passed 4 international certification: ISO9001,ISO14001,SGS ,TUV and CE



01


Contact us

Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
