2000L automatic industrial stainless steel beer brewery equipment for sale

The full line of the brewery equipment are consisted ofmill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories.All of the equipment are made of SUS304,with certificate of ISO,CE,TUV for high standard.The components we use for the set of system are from the world renowned companies such as ABB, Siemens, Omron, etc.

Thickness of material (mm):
Size:
Material:
Heating method:
Certificate:
Quantity:
  • DGET-2000L
  • Degonget
  • 8438400000

Overview

The full line of the brewery equipment are consisted of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories.All of the equipment are made of SUS304,with certificate of ISO,CE,TUV for high standard.The components we use for the set of system are from the world renowned companies such as ABB, Siemens, Omron, etc.We focus on each brewing system to stringent testing procedures before publishing them in the market.

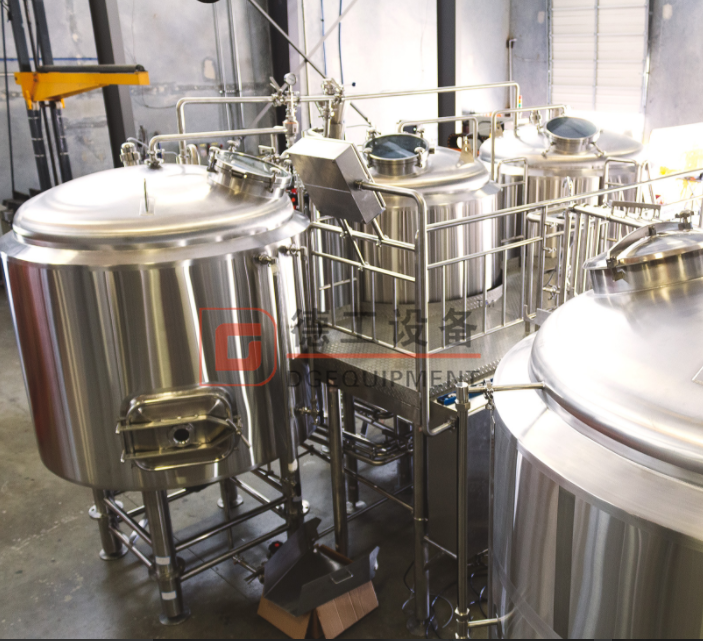

mash system_副本

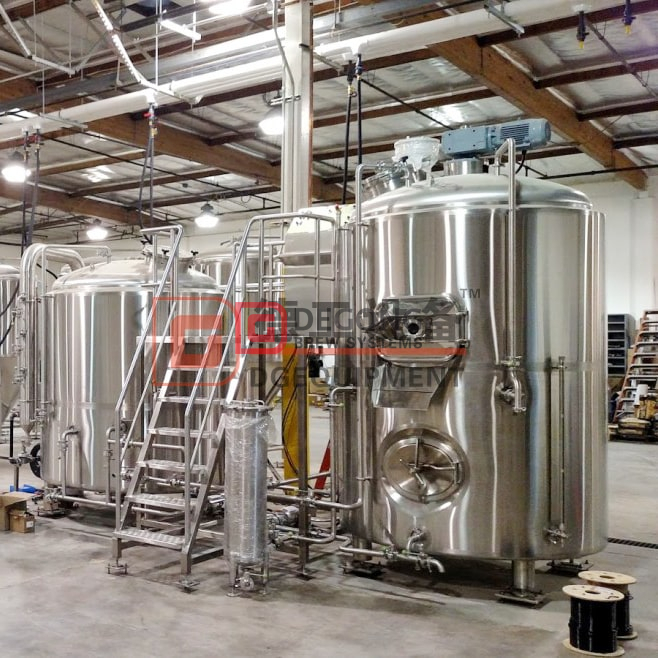

3-vessel brewhouse equipment


Brewhouse system


Brewhouse system is the vital part of the beer brewing process. DEGONGET manages the design, engineering, build, and installation of a custom brewhouse to help you achieve and replicate your unique brewing process. In the end, you have a long-term, sustainable system that maximizes efficiency and space in your brewery.

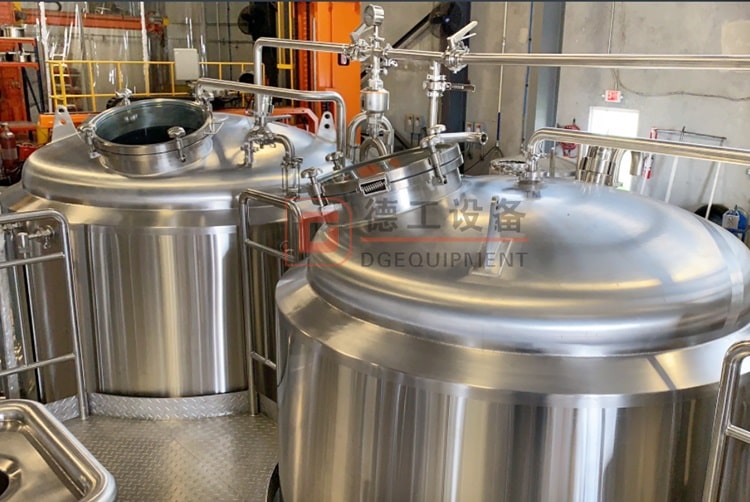

02

3-vessel brewhouse system with top manhole


Feature and technican parameter

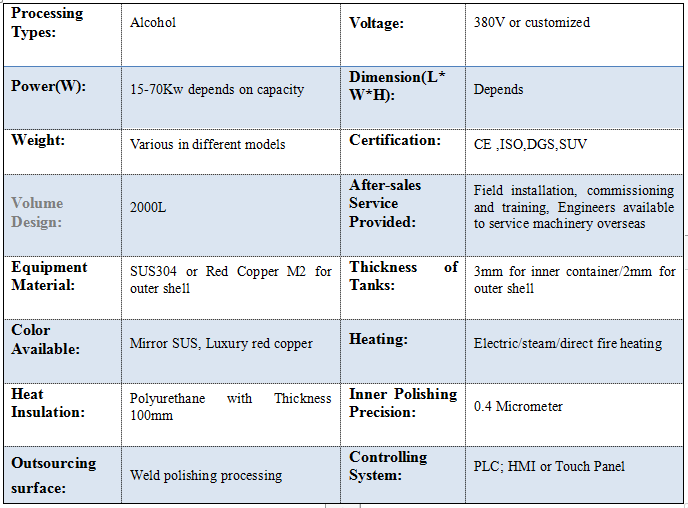

QQ图片20200415170202


  • Material: Inner(SUS304),thickness: 3.0mm;

  • External-Jacket(SUS 304), thickness: 2.0mm;

  • Cylinder (sharp type, SUS304), thickness: 2.0mm.

  • Inner surface treatment: welds grinded to Ra 0.6µm.

  • Insulation: Polyurethane-thickness 100 mm.

  • Temperature way:Double metal thermometer

  • Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

  • CIP 360 degrees Omni bearing cleaning

  • Integrated CIP System

  • Hot Liquor Tank –Designed and Sized for Double Brew efficiency

  • Cold Liquor Tank –Fully insulated and integrated

  • Stainless steel 304 pump with ABB or Siemens motors

  • Mash / Lauter Tun with grain raker

  • Boiling/whirlpool tank with whirlpool port and stir blades

  • 304 stainless steel operate platform and stairs

  • Plate heat exchenger design pressure:1.0Mpa

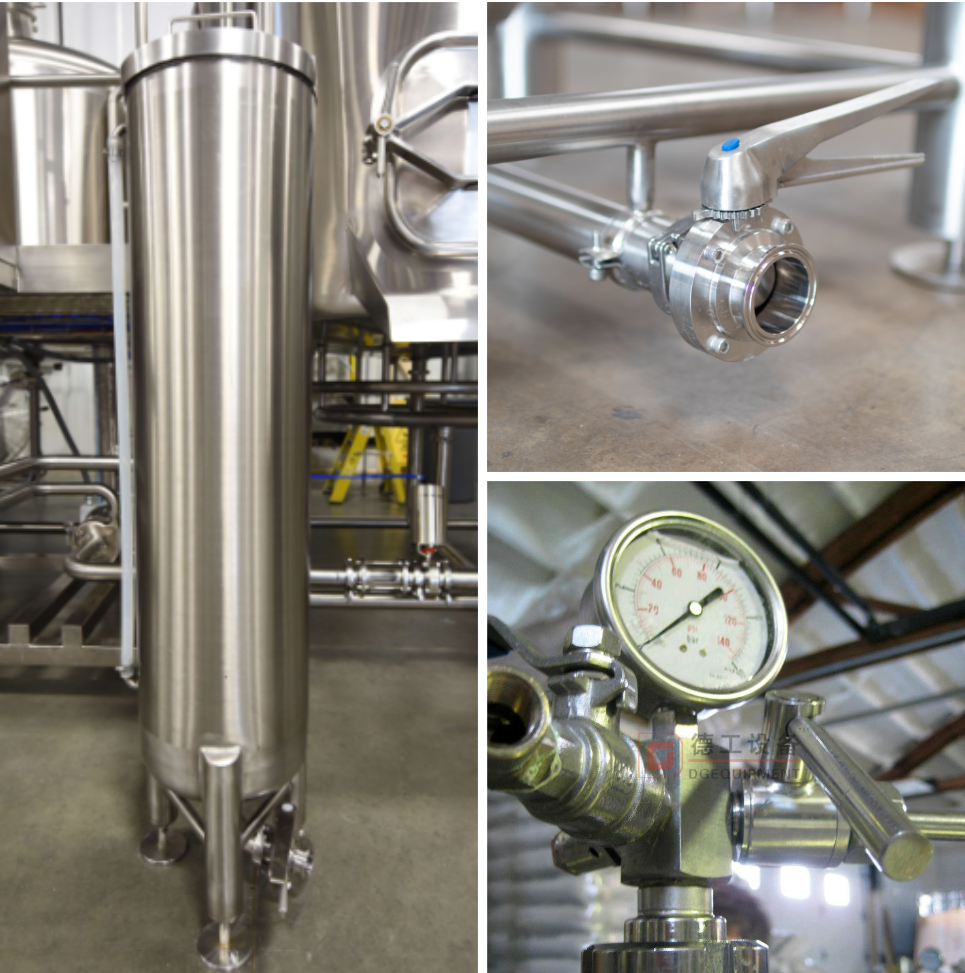

YEAST TANK PUMP AND PRESSURE GAUGE

yeast tank and pressure gauge of brewhouse equipment


Fermentation system

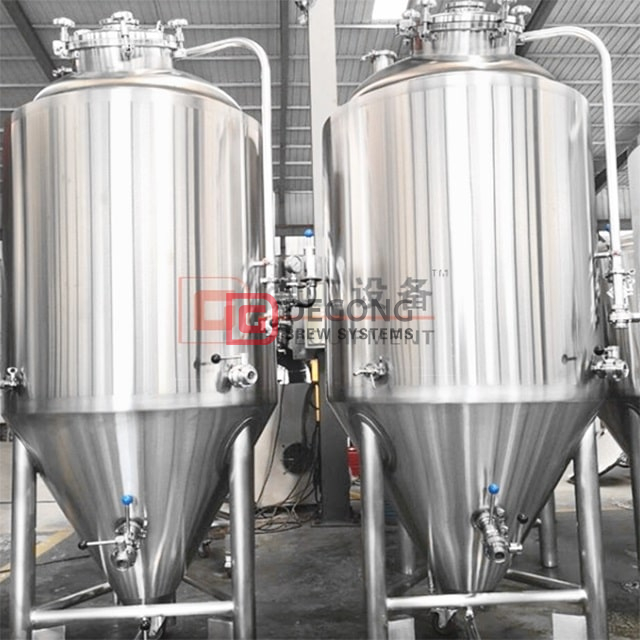

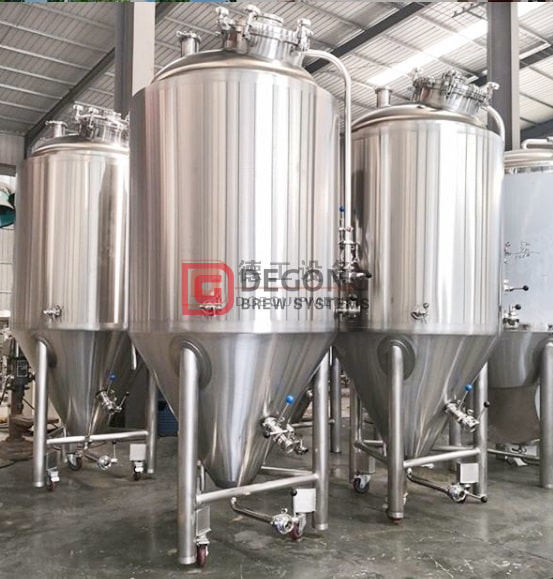

Varieties of customer needs have given us many opportunities to innovate and build thousandsof custom fermentation vessels in a wide range of shapes and sizes. Your unique needs may call for indoor or outdoor fermenters that are leg-, roof-, or skirt-mounted. Technically speaking, the fermentation system including fermenter,bright beer tank,yeast aiding tank and accessories.

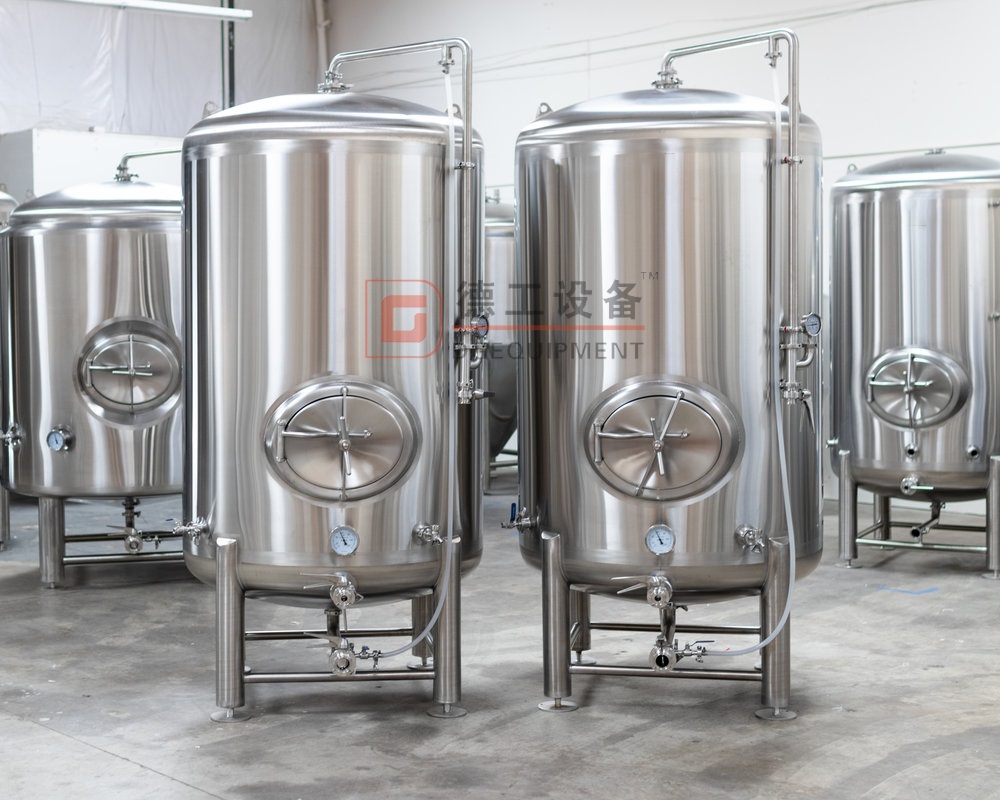

bbt

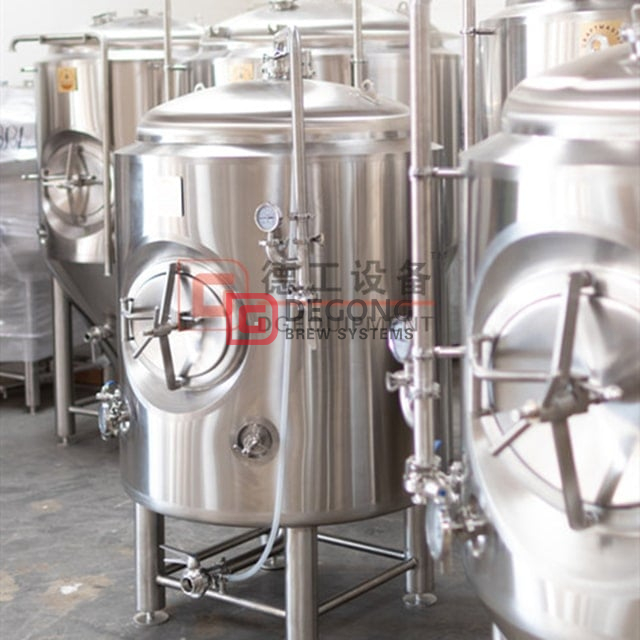

2000L bright beer tank


Feature and technican parameter

  • Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm; External-Jacket(SUS304) thickness: 1.5mm;

  • Heat exchange area:5.09 ㎡

  • Equipment with : cone 60°resist compression design,dripping

  • 100% TIG welding with pure argon gas shield

  • Interior Finish: Sanitary 2B finish, Pickled and Passivity;

  • Exterior Finish: Oil brushed finish (2B, 8K Mirror finish optional)

  • Interior full polished to 0.2~0.4 μm without dead corner

  • Insulated with high density Polyurethane foam 100mm

  • Glycol Jacket: Dimpled plate on cone and side

  • Sanitary side mounted manway with pressured door

  • TC connected CIP arm with 360° coverage spraying ball

  • Full sanitary metallic sealed sampling valve

  • Mechanical safe valve PVRV 2 bar on top

  • Hydraulic shock pressure gauge on CIP arm

  • Rotating racking arm and port on cone with butterfly valve

  • Tri-clamp discharge arm with butterfly valve

  • Thermowell for high accuracy temperature sensor


DSC_1026_wps图片_副本

accessories of BBT


Cooling system


  • Glycol tank: 2400L

  • Cold water tank:3600L

  • Refrigerating unit

  • Glycol water Circulate pump, VFD control

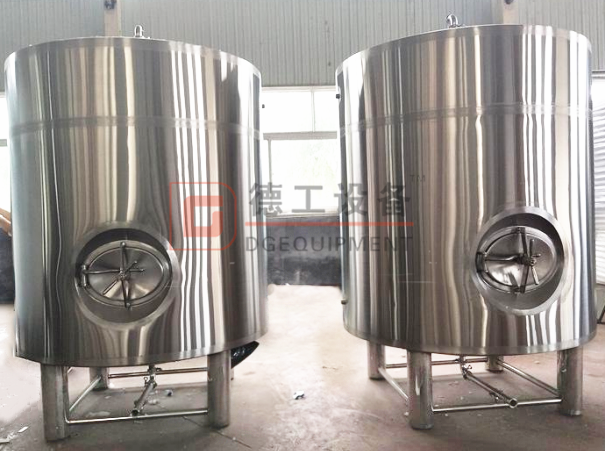

cold water tank


Control system


  • Semi automatic control system or PLC fully automatic control system if requeste

  • Siemens/Schneider/Omron components

  • PC or mobile remote control if requested

  • Individual control system for brewhouse system and fermentation system


QQ图片20200415090137

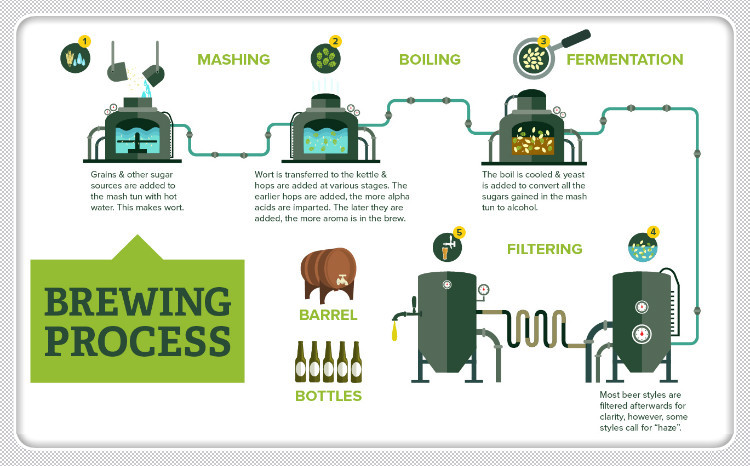

Brewing process


41416334_2031832500202419_4870214853186289664_o_副本


BrewingProcess_1_副本


Packing&delivery


  • Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport.

      Sheet iron case and so on are available according to customers' special demand.

  • Transport : By sea.

  • Punctual delivery time:

     - We put your order into our tight production schedule to ensure the punctual delivery time.

     - Production or inspection report before your order packed.

     - Shipping notice/ insurance to you as soon as your order is shipped.


Our certificate


With the high standard of brewery equipment both in row materials and manufactures, Degong have passed 4 international certification: ISO9001,ISO14001,SGS ,TUV and CE


01


Contact us

Each brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
