Overview
DEGONGET brewhouse system are built entirely of 304 stainless steel and can be customized entirely to your needs. Whether you are looking for smaller, single tanks for nano/pilot systems or large, full rake agitation systems with combination vessels or separate mash mixer and lauter tuns, we can manufacture the tanks which can fit your need for your brewery.
Mush/brewhouse heated via steam,electric or direct fired
Flexible brewhouse designs to accommodate your available square footage and ceiling heights
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination，configurations from 2-vessel to multi-vessel designs

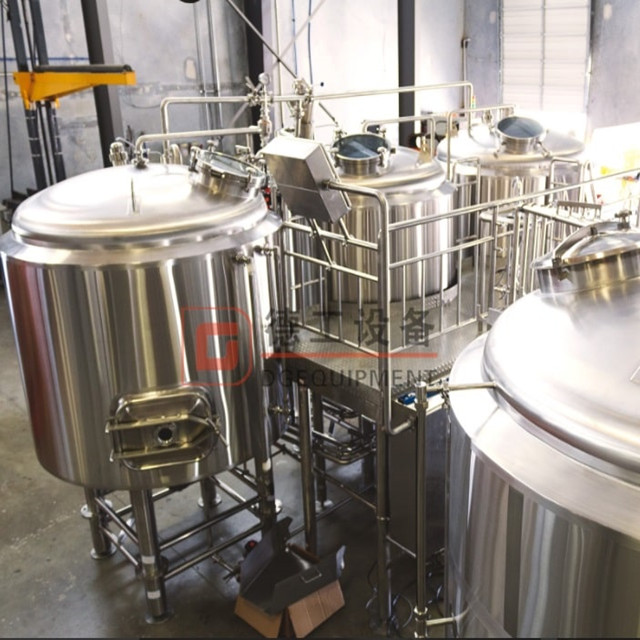

Brewhouse system
Mash/lauter tank
Material: Inner(SUS304),thickness: 3.0mm;
External-Jacket(SUS 304), thickness: 2.0mm;
Cylinder (sharp type, SUS304), thickness: 2.0mm.
Inner surface treatment: welds grinded to Ra 0.6µm.
Insulation: Polyurethane-thickness 100 mm.
Temperature way:Double metal thermometer
Outsourcing surface: Weld polishing processing
Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
CIP 360 degrees Omni bearing cleaning
Integrated CIP System
Hot Liquor Tank –Designed and Sized for Double Brew efficiency
Stainless steel 304 pump with ABB or Siemens motors
Grain raker
304 stainless steel operate platform and stairs

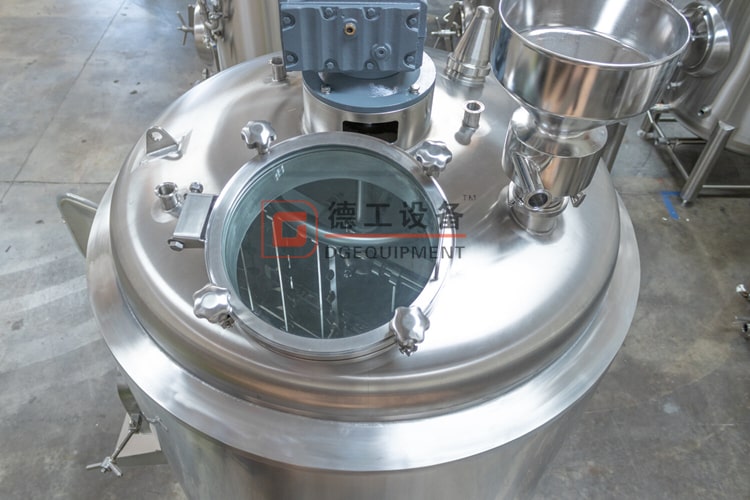

over view of the mash/lauter tank
Kettle/whirlpool tank
Material: Inner(SUS304),thickness: 3.0mm;
External-Jacket(SUS 304), thickness: 2.0mm;
Cylinder (sharp type, SUS304), thickness: 2.0mm.
Inner surface treatment: welds grinded to Ra 0.6µm.
Insulation: Polyurethane-thickness 100 mm.
Temperature way:Double metal thermometer
Outsourcing surface: Weld polishing processing
Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
CIP 360 degrees Omni bearing cleaning
Integrated CIP System
Hot Liquor Tank –Designed and Sized for Double Brew efficiency
Stainless steel 304 pump with ABB or Siemens motors
whirlpool port and stir blades
304 stainless steel operate platform and stairs

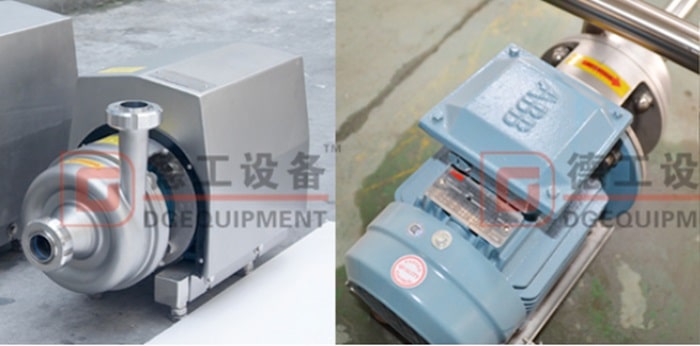

wort pump& ABB motor
Hot water tank
Material: Inner(SUS304),thickness: 3.0mm;
External-Jacket(SUS 304), thickness: 2.0mm;
Cylinder (sharp type, SUS304), thickness: 2.0mm.
Inner surface treatment: welds grinded to Ra 0.6µm.
Insulation: Polyurethane-thickness 100 mm.
Temperature way:Double metal thermometer
Outsourcing surface: Weld polishing processing
Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
CIP 360 degrees Omni bearing cleaning
Integrated CIP System
Hot Liquor Tank –Designed and Sized for Double Brew efficiency
Stainless steel 304 pump with ABB or Siemens motors
Beer brewing process
The brewhouse system are the vessels for the process of mashing.
After the malt is crushed, it should be transferred into the mash/lauter tun to dissolve the substances in the malt. The crushed malt is then mixed with the brewing water and heated.The insoluble substances in the mash are separated from the liquid in the lautering tun. The husks and other matter sink to the sieve base. They form spent grains cake, which is a natural filter.
Wort boiling is a fundamental step in the production of premium-quality beer. Hops are added to the wort and boils the mixture in the kettle. Then it will be drain out in the whirlpool tank.
Packing&delivery
Standard packing:
Cord ,film membrane
Firm membrane, wood box for free fumigation
Transport: by sea
Delivery :
- We put your order into our tight production schedule to ensure the punctual delivery time.
- Production or inspection report before your order packed.
- Shipping notice/ insurance to you as soon as your order is shipped.
Our certificate
Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.
Contact us
Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
