DGET-10HL
Degong
8438400000
Over view
Degong's craft tuenkey beer brewery equipment certified with ISO,CE and TUV,featuring high quality and being applied in beer bar,restaurant, beverage factory in more than 50 countries all over the world. It will be the best choice for the buyer who want establish the commercial and industrial brewery for brewing the unique taste of beer.

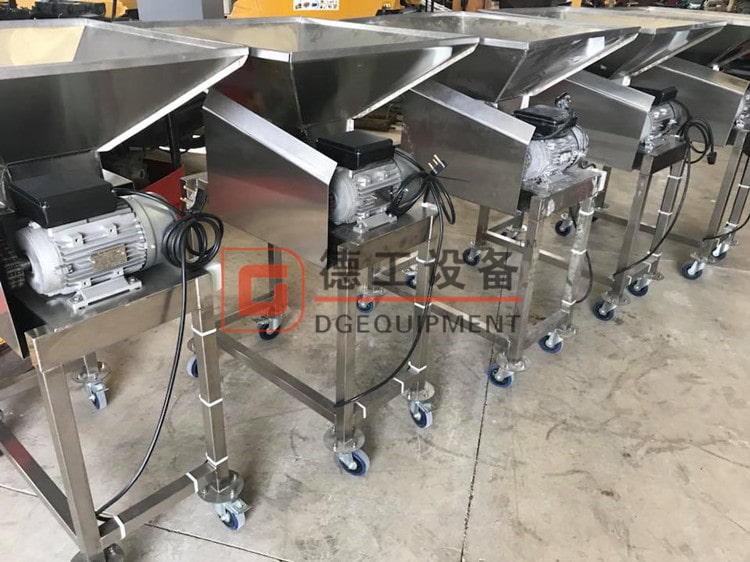

Malt miller
300-500kg/h
Doubel roller
Nosie: 45db or so

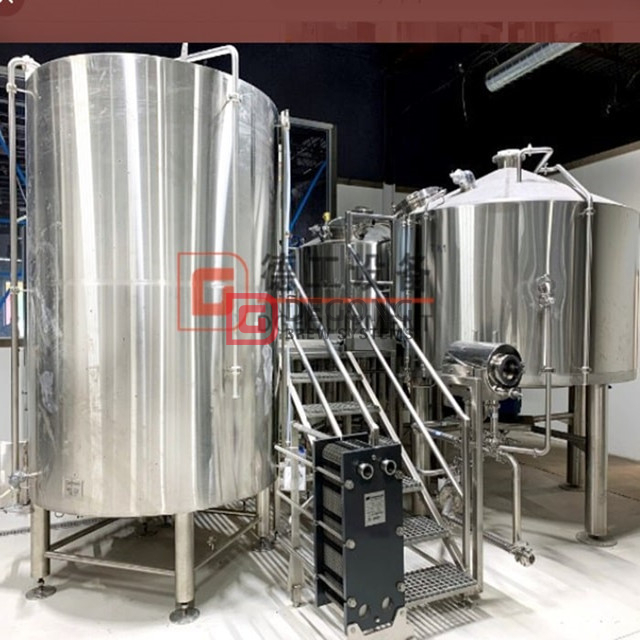

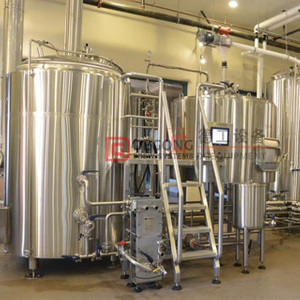

Mashing system
Mash/Lauter tun
Kettle/whirlpool tun
Steam heating method
hot water tank
Tubular glass level indicator
Tangential wort inlet
Side mounted grain outdoor with grain chute
Laser cutting V-wire False Bottom
Heating exchanger: 10 square meters
Wort pump: ABB motor, VFD control
Wort aeration device
Yeast adding tank
Seamless food grade stainless steel 304 pipes
Working platform
Technical parameters:
Design Volume : | 1bbl-10bbl | Voltage: | 380V/220V or customized |
Power(W): | 15-70Kw depends on capacity | Temperature way: | Double metal thermometer |
Jacket Pressure: | Design pressure 0.3 M Pa, working pressure <0.2 M Pa |
Certification:
| CE ,ISO,TUV
|
Inner surface treatment: | welds grind to Ra 0.6µm. | Outsourcing surface | Weld polishing processing |
Equipment Material:
| SUS304 or Red Copper M2 for outer shell
| Thickness of Tanks:
| 3mm for inner container/2mm for outer shell
|
Insulation | Polyurethane Insulation | Insulation thickness: | 100 mm |
Color Available: | Mirror SUS, Luxury red copper | Heating: | Electric/steam/direct fire heating |

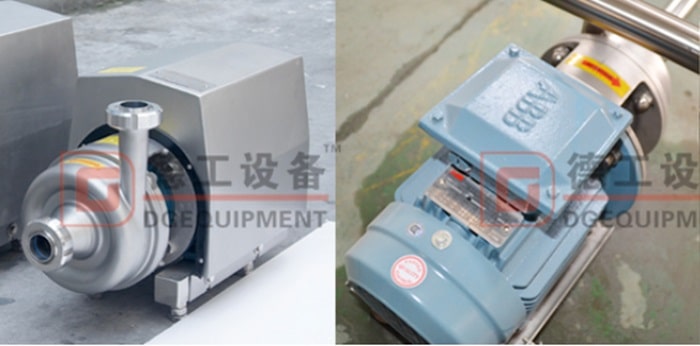

wort pump&motor and details of brewhouse system

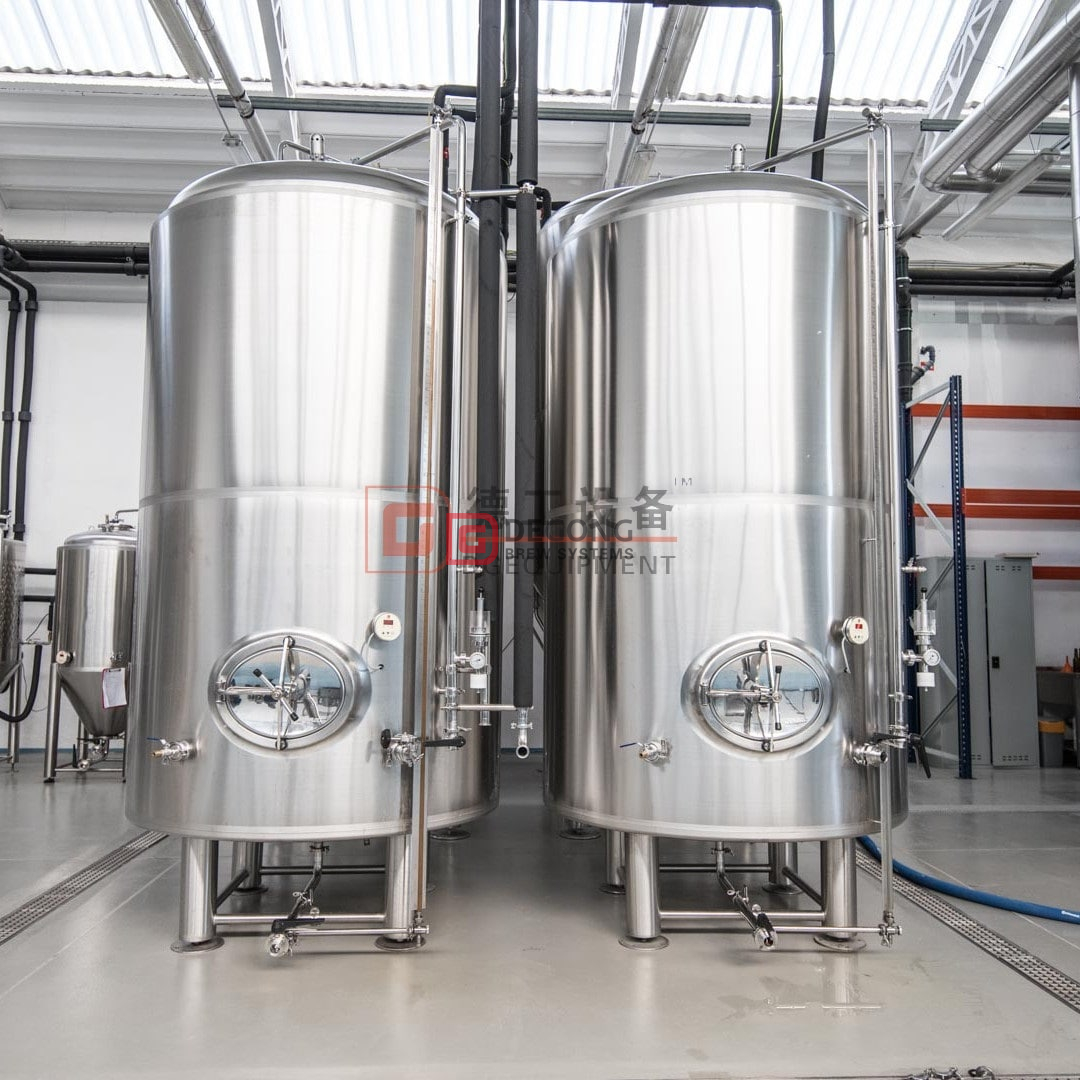

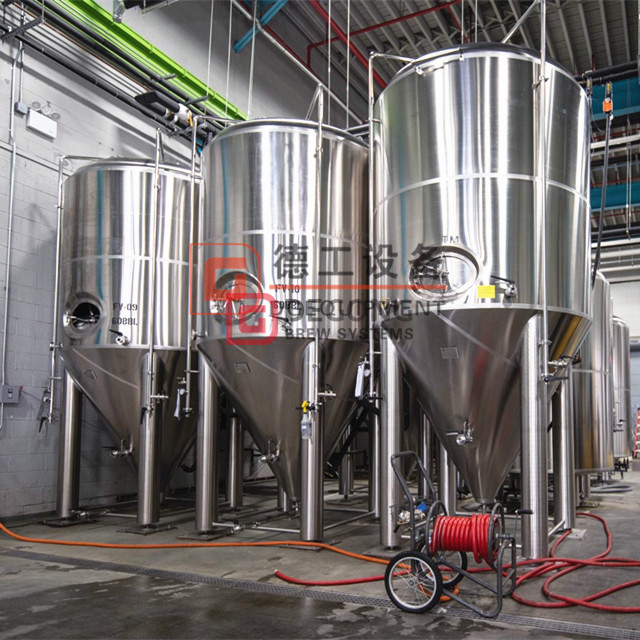

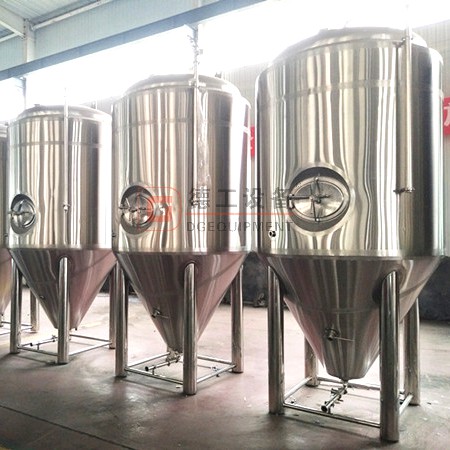

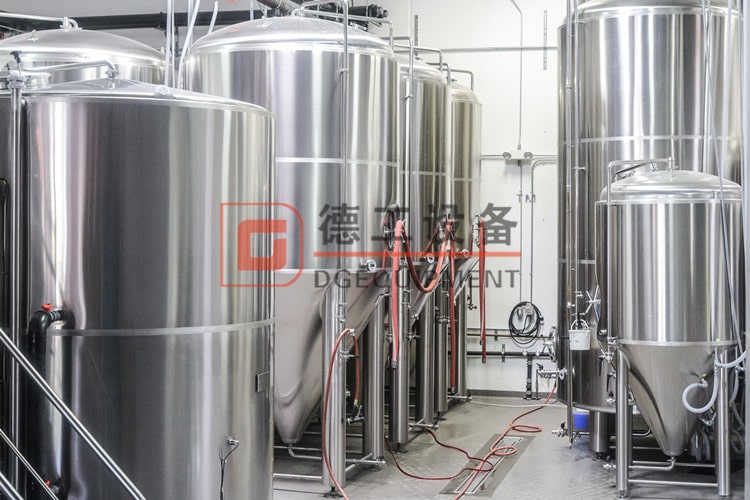

Fermentation system

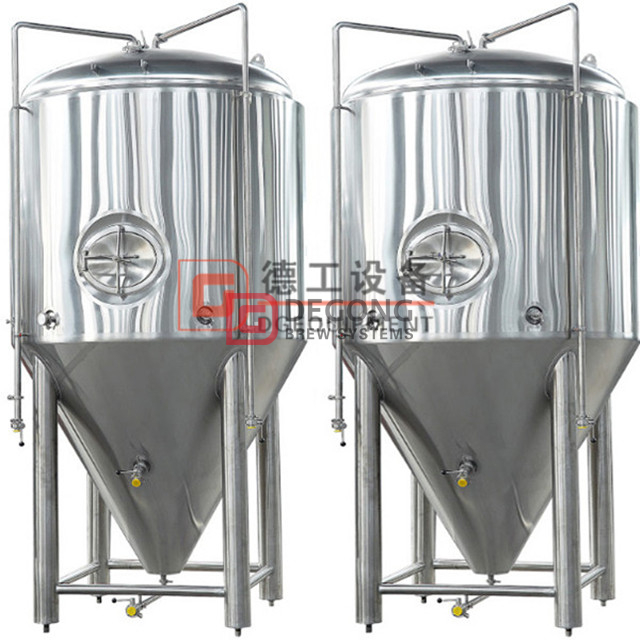

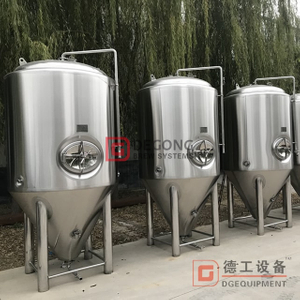

Generally Fermentation Tank structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .It is made up of Fermentation Tank ,Bright Beer Tank, yeast adding tank and other accessories and quantities are based on customer's request. According to different fermenting request, structure of fermentation tank be be designed accordingly.
Technical parameters:
Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
External-Jacket(SUS304) thickness: 1.5mm;
Oval head cone bottom, thickness: 3.0mm.
Surface: Finish2B – cold-rolled, annealed, pickled

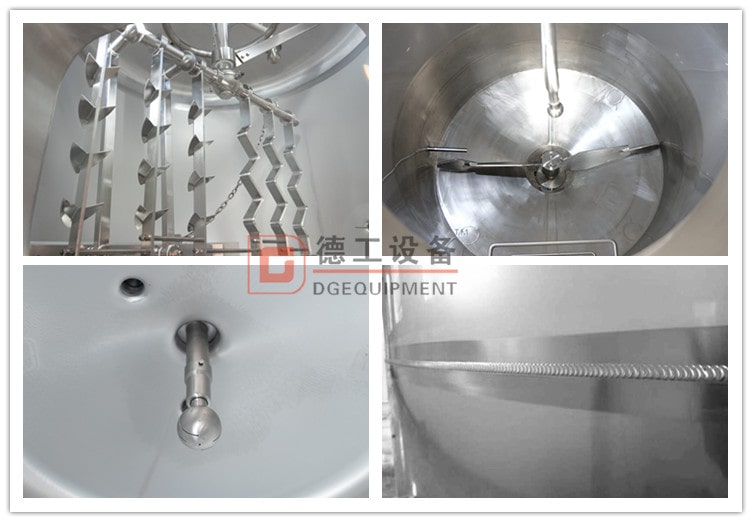

Inner surface treatment: welds grind to Ra 0.6μm (attached 360 degree Omni cleaning ball).
Mirror surface finish inside.
100% TIG welding with pure argon gas shield
Insulation: Polyurethane-thickness 100 mm.
Equipment with : cone 60°resist compression design，dripping 10.Temperature drop.
Cleaning System: All-round cleaning
Vessel Pressure: test pressure 3 bar, working pressure 1.5 bar

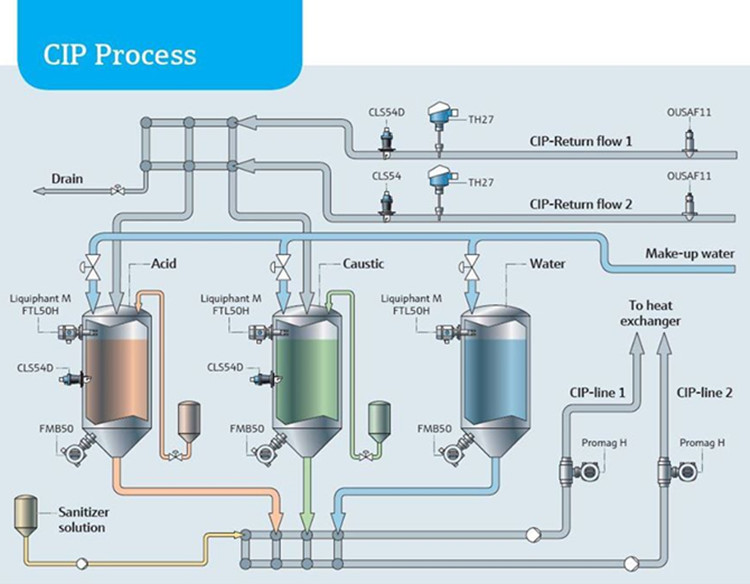

CIP system
Cooling system
Semi automatic control system or PLC fully automatic control system if requested
Siemens/Schneider/Omron components
PC or mobile remote control if requested
Individual control system for brewhouse system and fermentation system
glycol water line

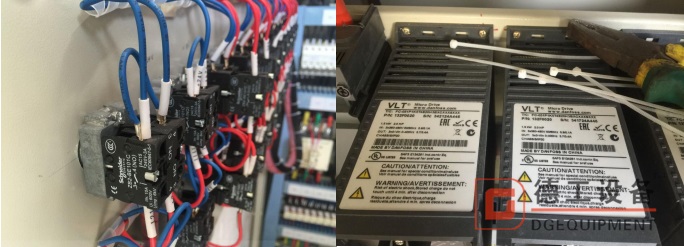

Control system
Control system is the soul of a whole set of brewery equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.

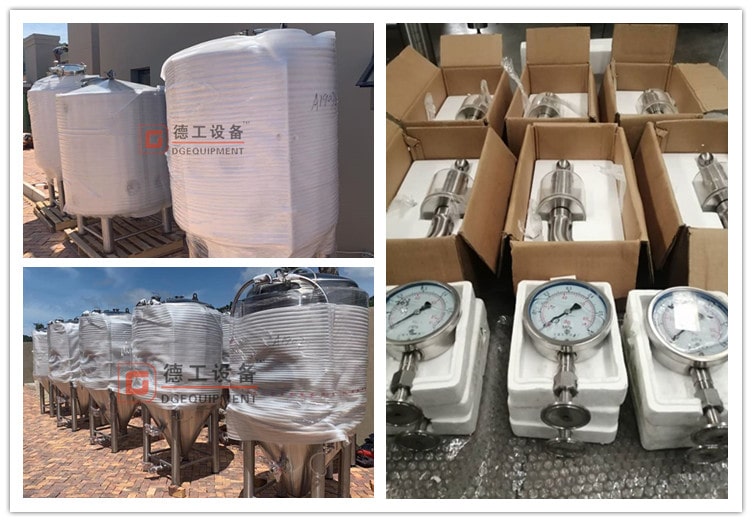

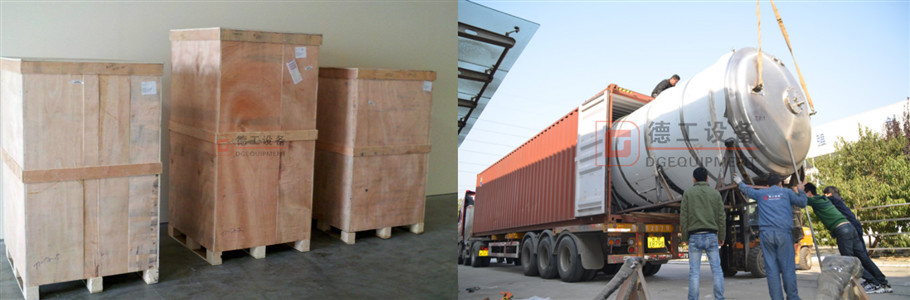

Packing&delivery
Standard packing:
Cord ,film membrane
Firm membrane, wood box for free fumigation
Delivery :
- We put your order into our tight production schedule to ensure the punctual delivery time.
- Production or inspection report before your order packed.
- Shipping notice/ insurance to you as soon as your order is shipped.
Our certificate
Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.
Contact us
Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
