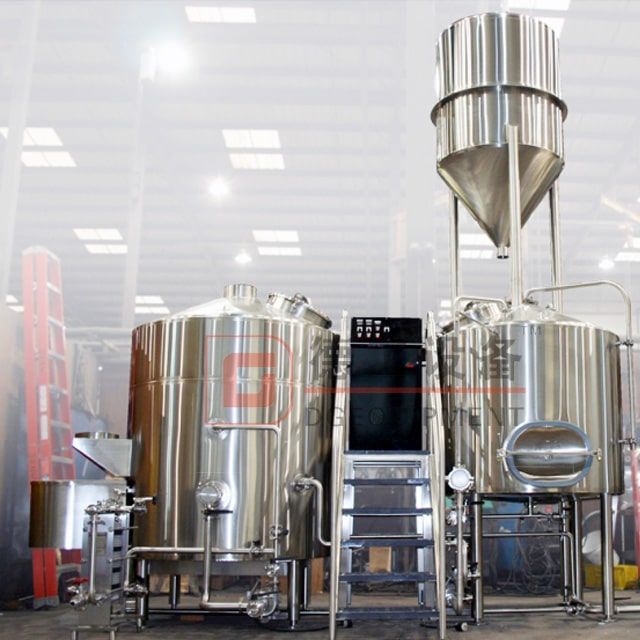

700L Brewery Equipment Combined Electric&steam Heating 2/3 Vessels Beer Brewhouse Brewing System

700L beer brewery equipment produced by DEGONG is a set of professional brewing system for the production of craft beer/commercial beer/filter beer/sterilized beer. Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste. If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels, tourist and shopping centers......

Thickness of material (mm):
Insulation:
Heating method:
Construction:
Material:
Quantity:
  • DGET- 700L
  • DGET
  • 8438400000

700L beer brewery equipment produced by DEGONG is a set of professional brewing system for the production of craft beer/commercial beer/filter beer/sterilized beer. Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste. If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels, tourist and shopping centers......

DEGONG brewing equipment


Beer brewhouse introduction

Beer brewhouse system is the most important part in the brewing process. The degree of mashing of wort is related to the flavor and effect of beer fermentation.

beer brewhouse



All the main parts of the brewhouse system are made of stainless steel 304 of international standard.Adopt modern automatic plasma, laser wire cutting, pure argon gas welding and other manufacturing technology, The inner of tank which contact with malt adopt all mirror polishing treatment and external part adopt grinding polishing treatment.Ensure to provide customers with advanced technology, quality, affordable, luxury and beautiful beer mashing system



3-Vessel brewhouse basic configruation


1.Mash tun

1. Adopting high-efficiency Maitreya jacket heat exchange technology and applying scientific steam turbulence principle to achieve maximum heat conduction and energy-saving effect, while adopting fully automated temperature control technology to ensure the heating speed and heat preservation time’s accuracy of each process stage of saccharification

2. Choose the international advanced hanging speed control system, adopt frequency conversion and automatic control stirring method to ensure the uniform mixing of the mash in the process of gelatinization and saccharification, which can maximize the optimum biological activity of mosts enzymes in the process of gelatinization and saccharification, thus ensuring the best quality and highest production rate of beer at the source.

electric and steam heating beer brewhouse



2.Lauter tank

1. Adopt advanced and scientific special-shaped raker structure system and hydraulic automatic lifting technology to ensure stable groove turning and groove output, also improve the filtration speed and production efficiency, and maintain good transparency and juice yield of wort.

2. Choosing international advanced suspension and mixing devices, equipped with frequency conversion, speed regulation, automatic control technology, makes the operation more convenient and flexible, simple maintenance, and cost savings.



beer lauter tank



3.Boiling kettle/Whirlpool tank

1. Adopt advanced in-body boiling and pressurization technology to increase the boiling strength, greatly increase the evaporation effect of dimethyl sulfide, promote the polymerization of protein and other condensables, and realize the rapid separation of boiling wort and polymer.

2. Adopt the extracorporeal circulation mixing technology to accelerate the heating rate of the early wort boiling, so that the temperature of the wort is always kept uniform and consistent during the heating process, and prevent denaturation of regional wort soluble matter caused by local overheating, thereby ensuring the The boiling quality of wort.

3.With a tangential port to achieve separation of coagulum and wort

 beer brewhouse mashing details


Beer fermentation tank

Each fermenting and storage tank is completely manufactured from stainless steel, operable up to 3 bar pressure and comes with CE certification, PU-insulation, cooling jackets, cleaning nozzles and automation of temperature and pressure. All tanks can be operated individually for different beers.

Component: It is consisted of Shadowless manhole, apunding valve,PRV, Aseptic sample valve, Pressure gauge, Rotate racking arm, Butterfly valve, Solenoid valve and etc.

beer fermenter

Function: Use for keep wort fermentation or maturation.

Material: Stainless steel 304 or 316,or red copper

Capacity: effective volume is 50L-30000L, 1BBL-300BBL

Cooling method: dimple plate or glycol cooling jacket around tank.

Cooling media: glycol water or alcohol water.

Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized).
