DEGT-800L
DEGT
8438400000
800L beer brewing equipment is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned.Such breweries are generally characterized by their emphasis on flavor and brewing technique.The service includes: complete set of microbrewery equipment, installation turnkey, recipes and technology of branded beers, staff training and more.Microbrewery comes complete “turnkey". The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.

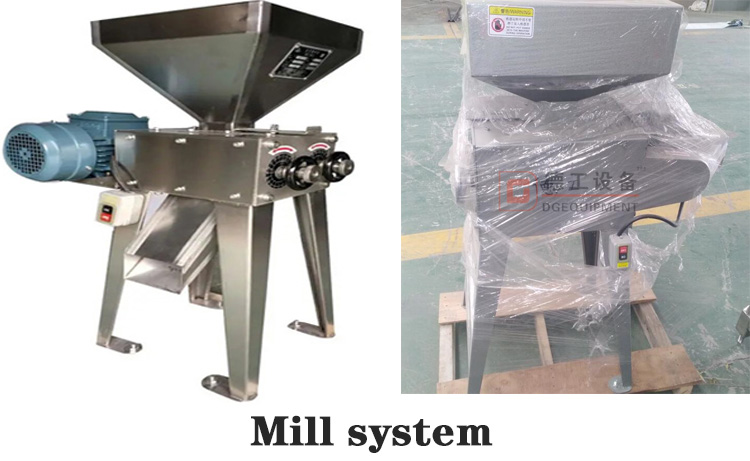

The process of mill accelerates the dissolution and decomposition of starch in barley, and promotes the leaching of soluble substances. The principle of mill malt is not to break. The husk of the malt is used as a natural filter layer when the wort lauter. It should not be too fine and should be kept as complete as possible, which will improve the efficiency of mash.
First, mash system has three heating method, including: direct fire heating(gas), steam heating and electric heating.
Electric heating: The equipment is heated by electric heating pipes.
Steam heating: The equipment is equipped with a steam jacket and a steam boiler is also provided. (Steam boiler: electric boiler, diesel boiler, gas boiler)
Direct fire heating: There is a boiler under the saccharification equipment to burn gas. Now the direct fire heating equipment mainly burns gas.
Second, mash system can be combined freely, as follow:
Two-vessel:
Mash Lauter tun & Kettle Whirlpool tun
Mash Lauter tun +hot water tank & Kettle Whirlpool
Mash Kettle tun & Lauter tun +Whirlpool tun
Three-vessel:
Mash tun & Lauter tun & Keetle Whirlpool tun
Mash Lauter tun & Hot water tank & Kettle Whirlpool
Four-vessel
Mash tun & Lauter tun & Kettle & Whirlpool tun
All kinds of mash system
Third, about mash system parameters:
Material:Inner(SUS304),thickness:3.0mm
External-Jacket(SUS304),thickness:3.0mm
Cylinder(sharp type,SUS304),thickness:3.0mm
Inner surface treatment :weld grindede to Ra 0.6μm
Insulation: Polyurethane-thickness 100mm
Temperature way: Double metal thermometer
Outsourcing surface: Weld polishing processing
Jacket Pressure:design pressure 0.3 MPa,working pressure ＜0.2MPa
CIP 360 degrees Omni bearing cleaning
Wort pump:Stainless steel 304 food
Plate Heat exchanger:Completely 304SS corrugated plates
Operation platform: Platform frame is constructed entirely of stainless steel with a stainless steel diamond plate deck. A stainless waterright electronics enclosure is mounted to the back of the platform.Stairs are constructed of stainless steel diamond plate deck material.

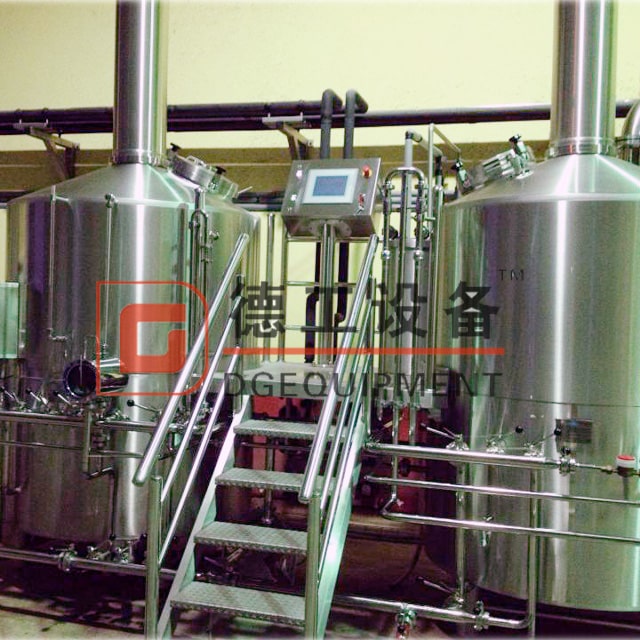

Brewhouse details: side manhole, spent grain hatch, ABB motor, butterfly valves, PT-100, sight glass, raker, food grade pipe, leg and adjustable foot.
Fourthly, for mash system details show:
If you wantn to bulid a new beer brewery, please contact me freely, with satisfactory service.
