DGET-5HL
DEGONGET
8438400000

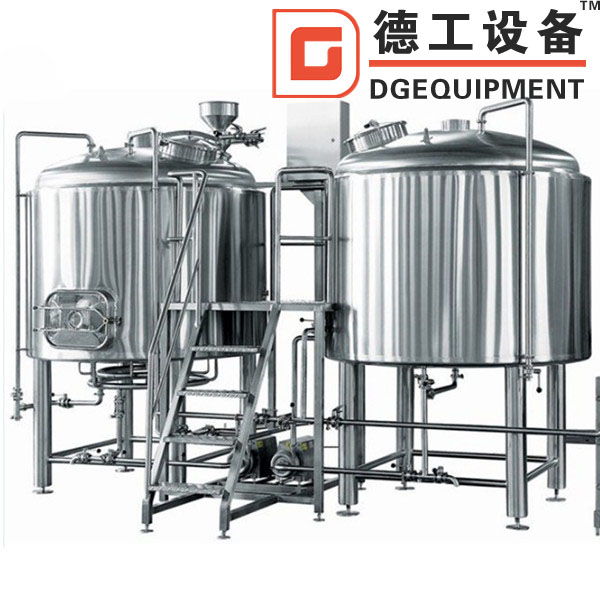

5HL 2-vessel beer brewhouse brewery system assembled in Japan
Brewhouse, deemed as a beating heart of your craft brewery equipment, is vital to the quality of your beer. A weak and defective brewhouse can not work and last for long. Its main mission is to extract the useful matters like protein, sugar and get the wort ready for fermentation. How the brewhouse is structured and the used components directly affect the working efficiency. The most concerned specifications of a brewhouse are listed below. By the way, our brewhouse is custom built if you have your own specific requirements.
| Material of brewhouse | Non-magnetic & food grade stainless steel 304, AISI 304, Red copper | |
| Structure of brewhouse | 3-vessel (mash/lauter; kettle/whirlpool; hot water tank), 4-vessel (mash/lauter; kettle; whirlpool; hot water tank) | |
| Heating method | Gas; electric; steam heating method | |
| Insulation | PU (polyurethane) | |
| Brand of pump | ABB motor | |
| Brand of motor of raker | SEW; ABB; SIEMENS | |
| Plate heating exchanger | 25 square meters; Dual cooling zone | |

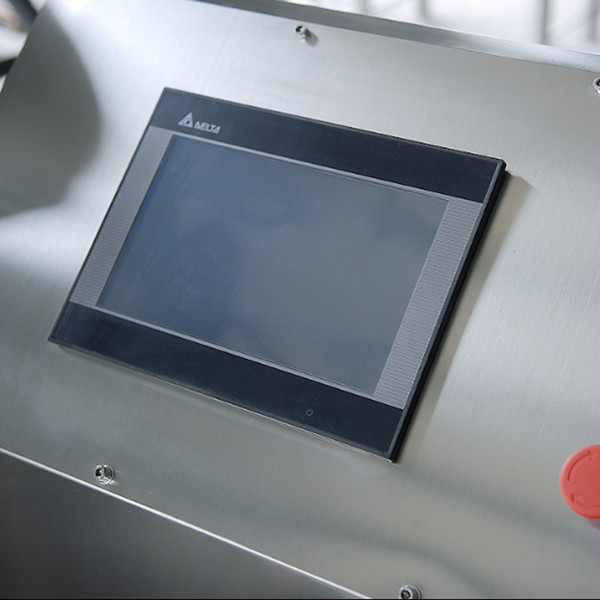

| Control method | Fully automatic control method | |
| Valve | Pneumatic valves | |
| Cleaning | With water spraying high -low ball of 360 degree coverage | |

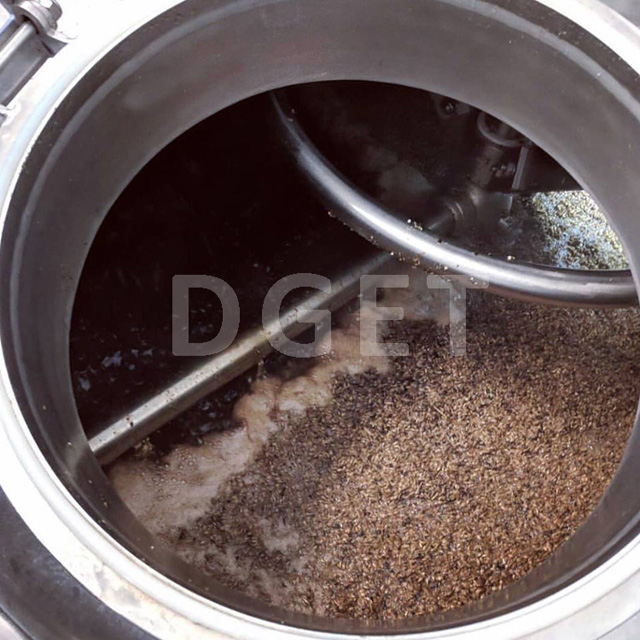

Water spraying; Mashing; Wort grant; Top manhole of brewhouse; Spent grain discharging; pipes of brewhouse
Plate heat exchanger & wort pump; Connecting pipes; pressure gauge; Pneumatic valve built in pipes; connecting pipes; fermentation tank

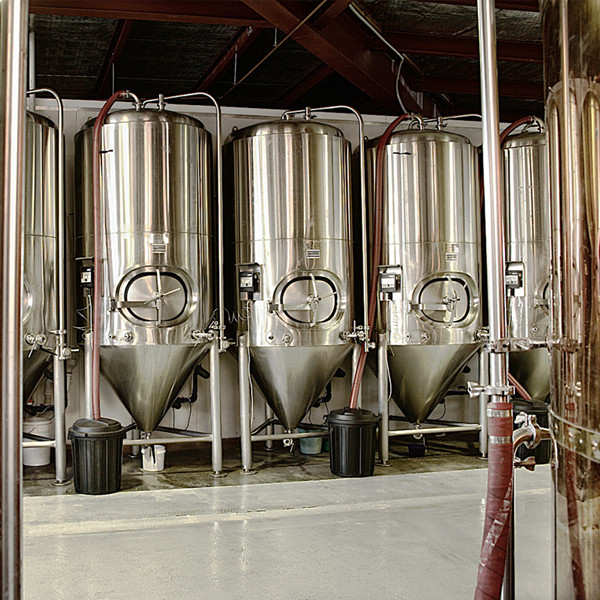

5HL conical jacketed beer fermentation tank
After the wort is transferred into fermenter, the fermentation process that lasts for a certain time starts. Yeasts consume oxygen to reproduce themselves at the first stage. During the second stage, alcohol and water are formed by anaerobic respiration. The beer is drinkable after the fermentation process.
Customizing tanks to fit a space is common and no additional charge in most cases. Degong has designed and installed stackable fermenters, brite tanks and serving tanks. These systems save space, take advantage of available clearance and look incredibly appealing to brewery goers.
| Material of brewhouse | Non-magnetic & food grade stainless steel 304, AISI 304, 316L | |
| Structure of fermenter | Conical fermenter, cone angle is 60 degree | |
| Cooling method | Dual dimple jacket zone | |
| Insulation | PU (polyurethane) | |
| Manufacturing technique | 100% TIG welded with argon gas protection | |
| Manhole | Side manhole | |
| Max pressure | 3.0 bar | |
| Working pressure | 1.5-2 bar | |
| Components | Pressure relief valve, dry hopping hole, lift lugs, pressure gauge, thermometer, temperature sensor, sample valve, racking arm, drain, mechanical regulating valve, Carbonation stone well option available, ladder hooks, | |
| Cleaning | With water spraying high -low ball of 360 degree coverage | |
| Connection | Complete clamp connection | |
Pipes of fermenter; Fermentation tank; Pipes of fermenter; pressure gauge
Project in Korea, Canada, USA, Colombia
Project in USA, Switzerland, Canada, Chile
Degong has obtained CE ISO TUV certificates by far.
DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.
DEGONG was established at 2009, and we are world-renowned for professional beer equipment manufacturing and wine equipment manufacturing. We research and develop beer brewing system and beer bottling machine independently from 2012, and we have developed overseas market successfully.
Now we have established sales services network of more than 10 core agents,more than 100 distributors and project contractor. We have finished thousands of project.
