DGET- 500L
DGET
8438400000

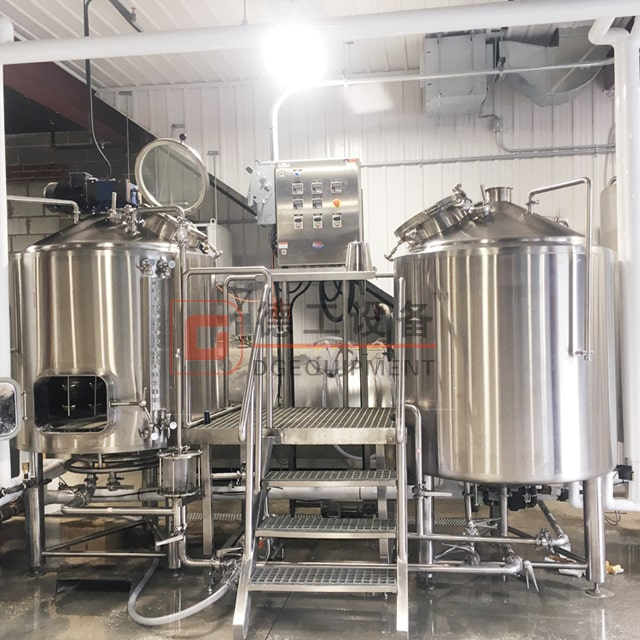

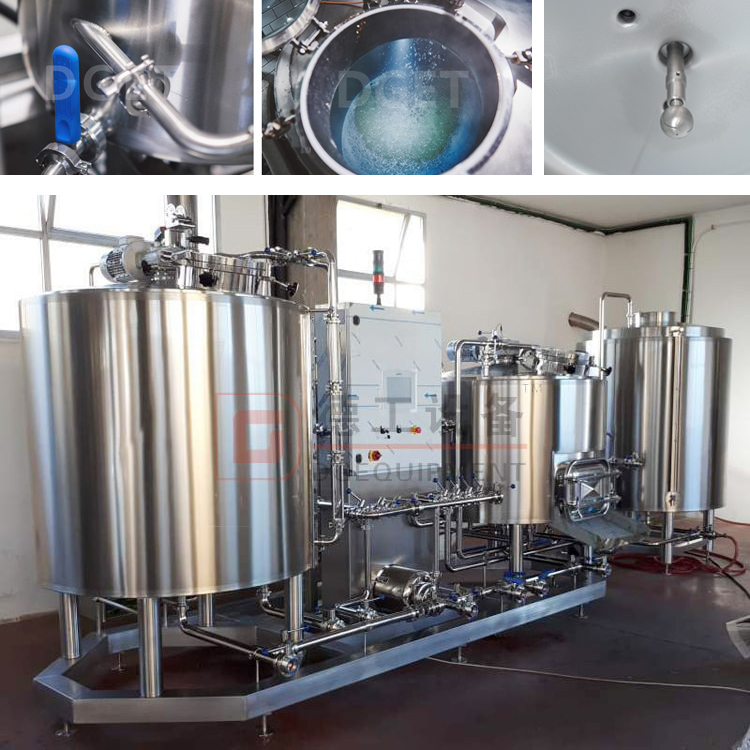

500L beer brewhouse is consisting of an AISI 304/316 stainless steel single-block structure with all its parts already connected, it is ready for operation after connection to the electric or steam line and to the water lines.Complete with a mash / kettle tun, a lauter / Whirlpool tun, a hot water tank and cooling exchanger, it also provides the possibility to connect another tun for the production of double batches.
Details of 500L micro brewey equipment
Made of AISI 304 stainless steel
Combined kettle / whirlpool tank with agitator on top
Lauter Tun with rotary raker to cut and extract spent grain
option to choose between steam or electric heating
double-walled thermal insulation
cooling system
side hatch with chute to unload spent grain)
hygienic stainless steel fluid distribution piping and valves
liquid transfer pump
flowmeter to check the filtration speed and wort clarity
adjustable mixing speeds
intuitive and user friendly control panel with automatic temperature control and agitator control
stainless steel extractable filtration mesh to ease cleaning
agitator blade lifting device
Mash Tun / Brew Kettle/Whirlpool
– volume total approx. 650 lit
– volume useful approx. 500 lit
– insulation 60 mm mineral wool
– spiral canals for steam heating
– double jacket for steam heating
– manhole cover on top dia. 400 mm, glass
– CIP ball with fitting and connection
– vapour chimney length 300 mm
– gear motor with mixing paddles
- tangential inlet
Lauter Tun
– volume total approx. 625 lit
– volume useful approx. 500 lit
– false bottom
– manhole cover on top dia. 400 mm, glass
– rectangular side door
– connection for sparging water
– CIP ball with fitting and connection
– gear motor with rake
Others
– centrifugal pump with frequency control
– pipeline with manual valves, butterfly
– electrical control cabinet for pump and gearmotor control, heating control
– plate heat exchanger
– Hot water tank
Application industrial
The 500l Brewhouse is the ideal model for restaurants and farms that want to offer their customers a small beer production. Also suitable for those ready to take their first steps in this sector, this plant can be useful for testing new recipes or training students in courses organized by schools or Universities of the brewing sector.
Company information
If you have interest in beer brewing industrial,welcome to contact me freely
