DGET- 500L
DGET
8438400000

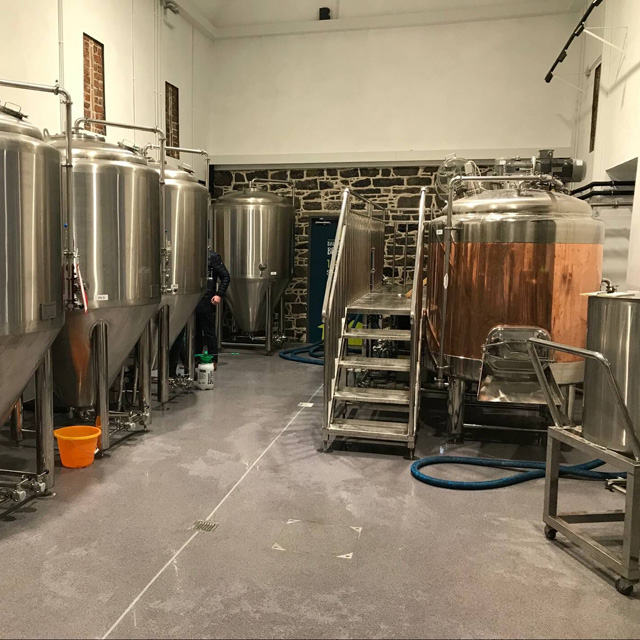

The 500L brewing system is popular not only for small breweries but also for places like bars and restaurants.There are small breweries that specialize in craft beer and serve fresh beers daily to bars, restaurants, etc. While some bars and restaurants directly have their own brewing equipment. On the one hand,they can brew different types of beer according to their own ideas, on the other hand, they can show the brewery equipment to customers to attract more craft beer lovers.Either way,500L beer equipment is a good choice
What does the 500L beer brewing equipment include?
1.Malt crushing system
Component |
|
NOTE:The malt should be crushed in half one hour.Normally brew 1000L beer will need 170-200kg malt,so we will configure miller according to capacity of brewhouse.For 500L brewhouse,200kg-300kg miller is enough. | |

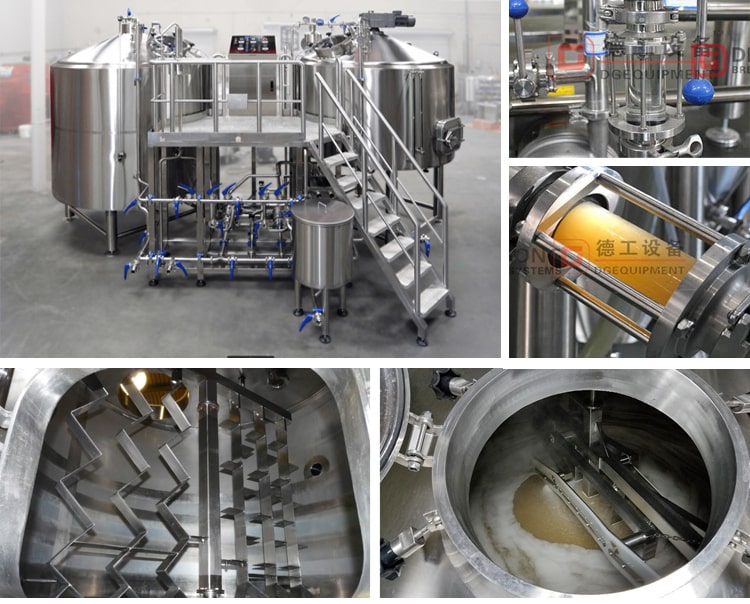

Component | Mashing tun, lauter tun, kettle and whirlpool tank(Can be combined freely,such as mash/lauter tank+boiling/whirlpool tank,or mash/lauter tank+boiling tank+whirlpool tank) Cold liquid tank (CLT), hot liquid tank (HLT) |
Details | 1.Material: Inner(SUS304),thickness: 3.0mm; Outer:2.0mm;Jacket:2.0mm. 3. Inner surface treatment: welds grinded to Ra 0.4µm. 4. Insulation: Polyurethane-thickness 80mm. 5. Temperature way：Double metal thermometer 6. Top mounted 360° coverage CIP spraying ball and port TC Easy clean |
Accessories | Pump, pipeline, heat exchanger, hops filter,wort grant,wort aeration device,false bottom, raker, motor,platform, pipes&valves |
Note:The heating method can be electric heating,steam heating or direct fire heating.For 500L equipment,we recommend electric heating or steam heating. | |
Component |
|
Details | 1. Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm 2.External-Jacket(SUS304) thickness: 1.5mm; 3.Inner surface treatment: welds grinded to Ra 0.4μm (attached 360 degree cleaning ball). 4.Mirror surface finish inside. 5.Insulation: Polyurethane-thickness:100 mm. 6.Equipment with : cone 60°resist compression design， 7.Vessel Pressure:1.5 bar / 3.0 bar |
| Accessories on tank | Vacuum valve,hops adding port,CIP pipe,pressure gauge,mechanical regulation valve,sample valve,carbonation stone,temperature sensor,themometer,drain outlet. |
Note: 1.The fermentation tank and bright beer tank can be top manhole or side manhole For 500L tanks,we recommend top manhole. 2.Some customer don't know how many they will need.Then,you can tell me your brewing plan and our engineer recommend a suitable scheme for you. | |
4.Cooling system
| Component | Glycol water tank,circulate pump,chiller |
| NOTE:The capacity of glycol water tank and chiller is depende on quantity and capacity of fermentation tank and bright beer tank | |
5.Control system&CIP system
| CIP SYSTEM:Alkali tank,sterilization tank and pump |
Control system:The control system can be semi-automatic or full automatic.All of the element is Siemens,Schneider,Danfoss,Omron component |
What should we know before geting an exact price?
1.The brewhouse can be customized to 2-vessels(such as mash/lauter tank+boiling/whirlpool tank),3-vessels(mash/lauter tank+boiling tank+whirlpool tank),4-vessels(mash tank+lauter tank+boiling tank+whirlpool tank).
2.The heating method can be electric heating,steam heating and direct fire heating.You can choose one suitable to you.If steam heating,it will need a steam boiler,the boiler can be eletric boiler,gas boiler or diesel boiler.
3.Quantity of fermentation tank,different customer has different requirement,so we need to know how many fermentation tank do you need.If you don't have idea,you can tell me your brewing plan,such as daily output or monthly output,beer's type or fermentation cycle,our engineer can suggest you a suitable scheme.
4.We should know your electricity power,including voltage,frequence and phases
5.You just need the beer brewing line,or need other auxiliary system,such as bottling line.
Company information
If you want to know more details,welcome to contact me.
