500L Stainless Steel Brewery Equipment Price List Micro Craft Beer Manufacturer Plant In Germany Berlin

We manufacture and supply brewhouse sizes from 50L to 20000L based on customer’s demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.

Thickness of material (mm):
Material:
Heating method:
Quantity:
  • DGET-500L
  • DGET
  • 8438400000

详情_副本

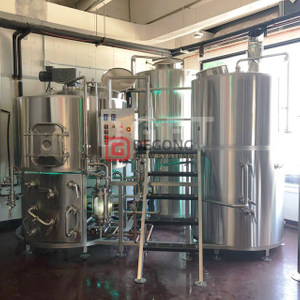

500L 2 vessel brewhouse system


We manufacture and supply brewhouse sizes from 50L to 20000L based on customer’s demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.


Microbrewery equipment:

1. Mash Tun

· 304ss Insulated Mash Tun, with low-pressure steam jackets on the bottom and side cylinder of the vessel for fast response boiling. 100mm Rockwool insulation, with glass top manway.

· 304ss Mash Mixing Paddle engineered to efficiently mix for consistent mash temperature and step mashing capabilities.

· Mash Temperature RTD sensor for monitoring internal mash temperature.

· Mash Pump, with variable speed control.

· CIP Tank Sprayball has CIP head.



2. Lauter Tun

· 304ss Insulated Lauter Tun, vessel bottom and cylindrical sides are insulated with 100mm of high density, chloride-free PU insulation, with glass top manway.

· 304ss Milled False Bottom screens for efficient Lautering and runoff of wort.

· Mash Temperature RTD sensor for monitoring internal mash temperature.

· Sparge Assembly with a temperature gauge to monitor sparge water temperature.

· Airless Grant with illuminated sight glass to accurately monitor Vorlauff.

· CIP Tank Sprayball has CIP head.

· Lauter Tun Manometer level gauges to monitor mash bed pressure differential.



3. Brew Kettle/Whirlpool

· 304ss Steam Fired Mash Tun/Brew Kettle Vessel interior and exterior are #4 brushed finish. Domed Top and insulated with a 100mm of high heat Rockwool insulation. Glass top manway with Clients logo etched onto glass lid (optional).

· Dual Independent Steam Jackets include bottom steam jacket and cylindrical side steam jacket, which allows initial running’s to be preheated with bottom jackets during initial lauter runoff.

· Integral Tangential Inlet for optimal whirlpool effect and trub/hop settling.

· Ventilation Stack Condensation ring, directs condensate outside vessel. Brew Kettle Vent to exterior of building, with customer provided stainless ventilation stack, to be installed by mechanical contractor.

· RTD Mash Temperature sensor for monitoring internal mash temperature inserts into welded Thermowell on vessel side wall. Removable from the vessel’s exterior in event of probe failure, even while vessel is full.

· Wort Pump with variable speed frequency drive control

· CIP Tank Spray ball system with dual static spray heads offer an ideal spray pattern for clean in place operations and complete interior vessel coverage. CIP sprayballs and CIP piping are 304ss to assure longevity of system.



QQ截图20191115113844_副本

Dish head


QQ截图20191115113900_副本

Stainless steel leg

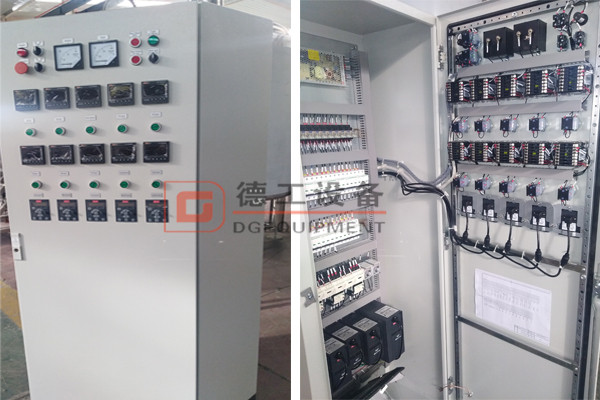

4. Integrated Control Panel

· Industrial Touchscreen Control Panel, 304ss, watertight case. Mounted on brewer’s platform with controlled brewers CPU Integrated module.

· Integral Controls allows for intuitive Brew house operation and Cellar Control functions from one central location on the Brewhouse platform. Includes readouts and controls for Brew Kettle & Lauter Tun.

· Pump Controls and Variable Speed frequency drive for Mash Pump and on/off controls for Hot Liquor Pump.

· Interior vessel Illumination natural spectrum light mounted inside vessel dome.

· Adjustable Footpads ball on plates, allow for leveling of vessel on sloped floors.



控制柜_副本

Integrated Control Panel


5. Plate Heat Exchanger

· 304ss 2-Stage Plate Heat Exchanger for chilling. Stainless steel plates and frame assembly.

· Wort Thermometer upon exit of PHE to accurately stabilize wort temperature.

· Aeration Stone Assembly, including 3A certified Tee’s, non-threaded sanitary sintered aeration stone and sanitary gas check valve, with sight glass.


板换酒花过滤器_副本

 Two-stage cooling plate heat exchanger and yeast addition tank


6. Working Platform

· 304ss Staging Platform between Brew House Vessels, with stainless non-slip grating, stairs, and handrails. Can be configured to your location and design layout.

304ss Frame Assembly, with mounted hard piping firmly affixed.


Equipo-para-fabricar-Cerveza-3_副本

Smooth stainless steel working platform


Features of brewery equipment:

1. Strictly quality control, meet the European quality standard.

2. Accept customized, professional engineers will provide design solutions for you.

3. Double jacket conical fermenter with dimple-plate cooling jacket, perfect welding.

4. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright.

5. The equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation.


DGET brief introduction


公司简介


工作间_副本


After-sales Service Provided

2 years of tank and 12 months of accessories guarantee, lifelong maintenance at cost charge

7x24 hours per week email&phone available

Maintenance, return & exchanges services


Cooperator


客户_副本


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


自家发货

Ready for shipment
