| Thickness of material (mm): | |
|---|---|
| Material: | |
| Configuration: | |
| capacity: | |
| Heating method: | |
| Quantity: | |
DGET-1000L
DGET
8438400000
We manufacture and supply brewhouse sizes from 100L to 20000L based on customer’s demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.
Brewhouse system with plate heat exchanger
| Brewhouse system |
Two vessels brewhouse on 1000 liters includes:
Mash Lauter tun & kettle whirlpool tun at 1400 liters;(hot water tank optional)
Pipelines;
Pump for transfering water, mash and wort;
Remote control.
Working platform with stairs
Three vessels brewhouse on 1000 liters includes:
Mash Lauter tun & kettle tank & whirlpool tank at 1400 liters;(hot water tank optional)
Pipelines;
Pump for transfering water and mash;
Pump for transfering water and wort;
Remote control.
Working platform with stairs

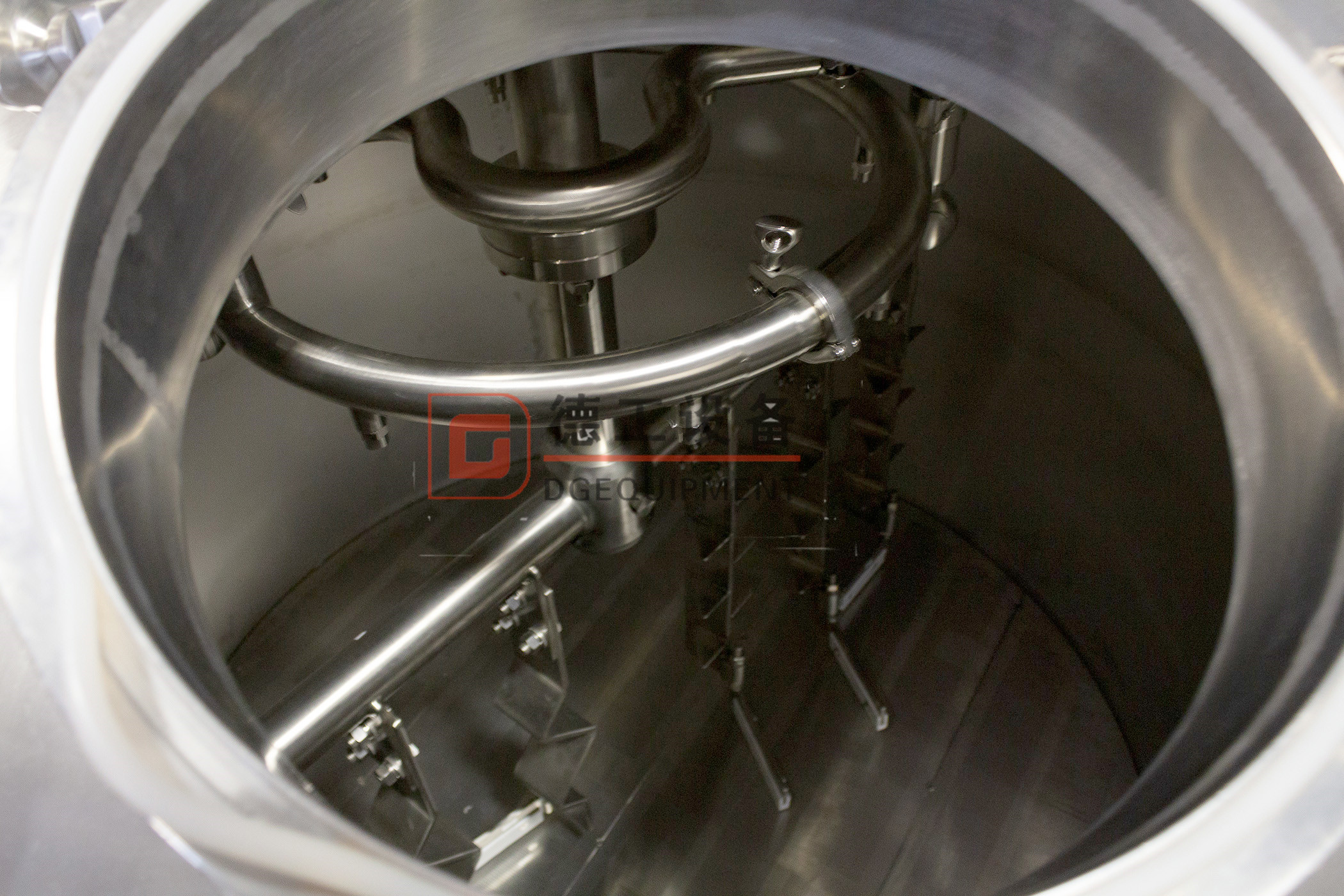

Mash lauter tun with false bottom and raker

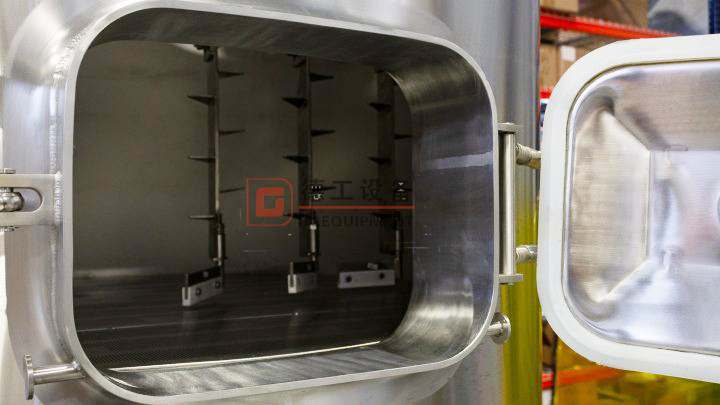

The grain spent port of brewing system
Specification for reference:
1. Request for the electricity: 3 phase 380V or 220V, 50/60 Hz
2. Power: accordance with the capacity or heating way of brewhouse
3. Welding: 100% TIG welding with pure argon gas shield
4. Polish: Grinding polish or mirror polish, polishing up to Ra 0.4um;
5. Accessories: full set of accessories and some wearing parts could be supplied more for spare.
| Fermentation tank(CCT) |
The fermentation area consists of a specific (at the customer’s choice) number of CCT (cylindrical-conical tanks) of a corresponding capacity and a control panel containing the automation for maintaining the desired beer temperature inside each CCT.
CCT have a cooling jacket over the entire height of the cylindrical part. CCTs from 1000 liters also have a separate cone cooling jacket. insulation warmed by polyurethane foam 70-100mm thick. The external covering of CCT is made of food mirror stainless steel.

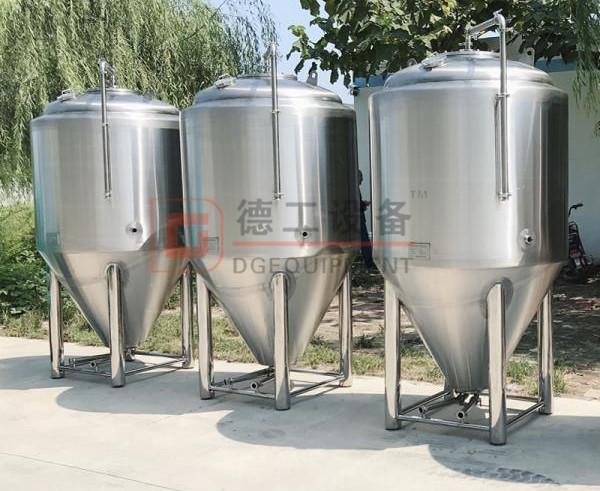

1000L stainless steel fermentation tank for sale
CCT equipped with:
top or side (at the choice of the client) the inspection sealed hatch;
a small hatch for a yeast (option for a side hatch);
fermentation bung;
fittings for connecting CIP-station and carbon dioxide baloon;
rotary washing head;
bottom valve for draining yeast sediment and washing liquid;
tap for supply wort and beer drain;
sampling valve;
beer temperature sensor;
automatic valve coolant supply.

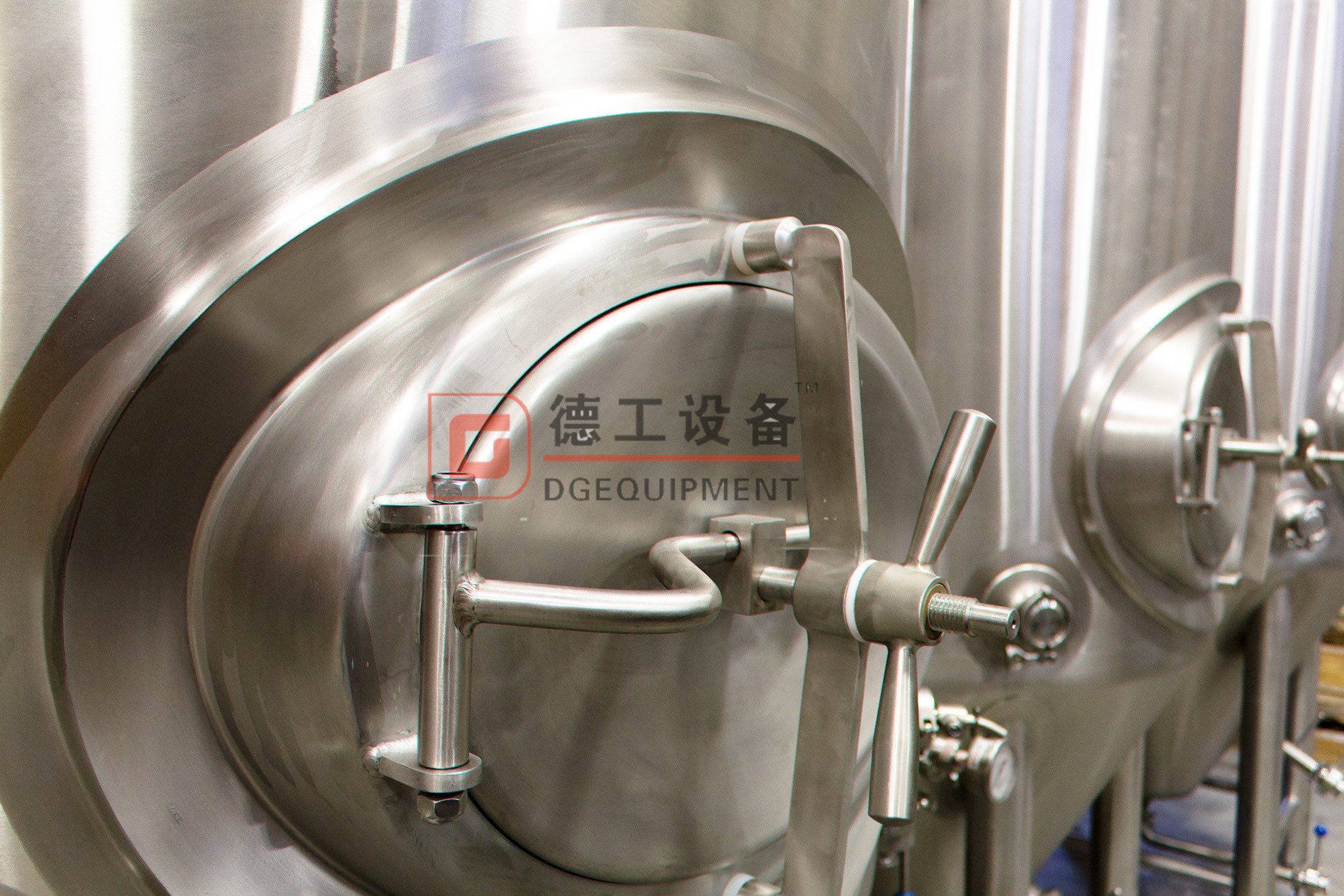

CCT with side hatch
The CCT is designed for internal pressure and can be used both for the primary fermentation and for the maturation (carbonization) of beer and the supply beer for filtering or bottling. The working pressure inside the CCT is up to 3 bar at request.
Washing of the CCT inside takes place in the automatic closed mode using a stationary or mobile CIP-station.

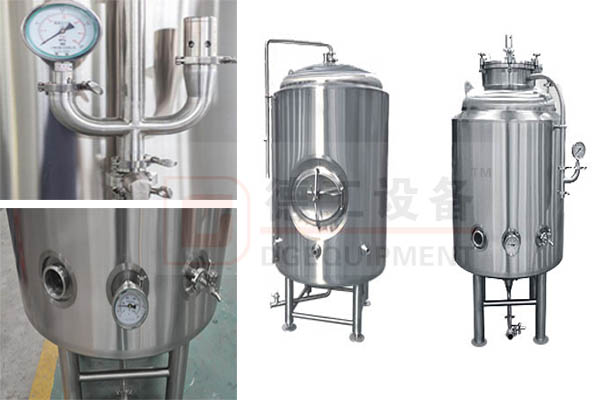

Brite beer tank(pressure gauge and breather valve)
Control cabinets for brewhouse system and fermentation systems
No. | Name | Composition | Specification | Technical parameter |
1 | Milling System | Malt Miller | 300kg/H | Double roller |
Carbon steel spray paint/Stainless steel | ||||
Power:1.5Kw | ||||
2 | Mash system | Mash/Kettle Tun | 1000L | Material:SUS316L/SUS304/copper |
Interior Shell: 2B/mirror plate; TH=3mm | ||||
Dimple, coil jacketed for steam heating,electric | ||||
ABB stirring motor | ||||
80mm rock wool for insulation | ||||
Round glass manhole, dish head,with temperature | ||||
Lauter/Whirlpool Tun | 1000L | Material:SUS316L/ SUS304/copper | ||
Interior Shell: 2B/mirror plate; TH=3mm | ||||
80mm rock wool for insulation | ||||
Lauter tun with round glass manhole,side mounted grain outdoor with spent grain chute,sampling valve,sight glass | ||||
Lauter plate: milling | ||||
Racking device,positive turn cultivating spent grain,reverse discharging spent grain | ||||
Tangential whirlpool inlet | ||||
With cleaning tube, with standard washing ball,cleaning pipeline ISO32 | ||||
Hot liquid tank | 1000L | Material:SUS316L, SUS304,copper | ||
Interior Shell: 2B/mirror plate; TH=3mm | ||||
80mm rock wool for insulation | ||||
Top dish head, bottom conical head, round glass manhole | ||||
Dimple, coil jacketed for steam heating,electric heating tube, combustion chamber | ||||
With a cleaning tube, with a standard wash ball, cleaning pipeline ISO32, overflow port,temperature sensor | ||||
Heat exchanger | SUS304,Two stage cooling | |||
Wort oxygenator | SUS304, venturi principle with sight glass | |||
Yeast Adding Tank | 10L | With valve, sight glass, pipe fittings, hand-held | ||
Wort pump | China top brand, Sanitary SUS304 | |||
Hot liquid pump | China top brand, Sanitary SUS304 | |||
Pipe and fittings | As design | Completely SUS304,including platform and steps | ||
3 | Energy system | Steam heating | ||
4 | Fermentation system | Fermenter | 1000L | Material:SUS316L /SUS304 |
Interior Shell: 2B/mirror plate; TH=3mm | ||||
80 mm PU for insulation | ||||
Dish head,cylinder,60 degree cone bottom(adjustable) | ||||
Top or side manhole, | ||||
With electromagnetic valve or mechanical pressure regulating valve,sample valve,temperature sensor, adjustable leg,Rotating | ||||
Option:Dry hop mouth,CO2 filling device With titanium | ||||
5 | Filtering system (optional) | Candle diatomaceous earth filtration | 1000kg/hr | Power:1.8Kw |
Filter Area: 1M2 | ||||
SUS304 | ||||
6 | Fermentation system | Bright beer tank | 1000L | Material:SUS316L or SUS304 |
Interior Shell: 2B/mirror plate; TH=3mm | ||||
80 mm PU for insulation | ||||
Dish head /bottom,cylinder | ||||
Top or side manway | ||||
With electromagnetic valve or mechanical pressure | ||||
7 | Cooling system | Chiller | 5Px1PCS | Cooling Capacity: 6364Kcal |
Installed Power:4.86kw | ||||
Refrigerant: R22 | ||||
Noise:70-80db | ||||
Coperland compressor | ||||
Ice Water Tank | 2000L | Insulated conical top and sloped bottom | ||
Ice water pump | 3M3 | Sanitary SUS304, VFD control | ||
Pipeline and fittings | As designed | SUS304 | ||
8 | Control system | Mashing and fermentation process Controlling | Floor type | Panel instrument digital |
PLC control with touch screen for special | ||||
9 | CIP System | Acid Tank | 100L | SUS304 |
Alkali Tank | 100L | SUS304 | ||
CIP Pump | 3M3 | Flow:3T Lift:24 | ||
10 | Filling system | Keg Washing machine | 40-60kegs/hr | Double Station Keg Rinser |
Heating: Electric, Power: 15kw(steam for optional) | ||||
Keg filling machine | 30-40kegs/hr | Single Station Keg Filler | ||
Input Power: 0.1 kw | ||||
Bottling line | 400-500 bottles/hr | Manual,8 heads | ||
Can line |
| DGET brief introduction |
| FAQ |
1. How long is your delivery lead time?
A: After 30-45 working days when we receiving your payment.
2. Could you calculate the shipping for me?
A: Yes, please kindly let us know which port is nearest your place.
3. What is your term of payment?
A: Our payment terms are both TT and L/C. 30% for advance payment after signing the contract and before manufacturing, 70% as balance payment after manufacturing all equipments and before delivery.
4. This is the first time I use this kind of machine, is it easy to operate?
A: There are English manual or guide video for showing how to use the machine;
If you still have any questions, we can contact by phone or email, etc;
| Cooperator |
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
| Contact information: |
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
