500L Resrtaurant Used Beer Brewing Equipment Brewery Tank SUS304 Beer Brewing System

The 500l brewing system is very popular. It is not only suitable for microbrewery, but also for small brewpub/restaurant/hotel. DEGONG'S brewing system includes a complete set of configurations from milling to bottling. All electrical components are Siemens, Schneider and Omron. The control of the entire system is PLC control, which can be controlled remotely by computer...

Thickness of material (mm):
Insulation:
Matrial:
Heating method:
Control panel:
Quantity:
  • DGET-500L
  • DGET
  • 8438400000


The 500l brewing system is very popular. It is not only suitable for  microbrewery, but also for small brewpub/restaurant/hotel. DEGONG'S brewing system includes a complete set of configurations from milling to bottling. All electrical components are Siemens, Schneider and Omron. The control of the entire system is PLC control, which can be controlled remotely by computer..


0000-min

Beer brewing equipment can be designed according to the requirements of different brewers.The whole set commercial used beer brewing equipment includes miller, mash system, fermentation system, cooling system, control system, cleaning system, filtration system, sterilizer, filling line (bottle, barrel, can), packaging.



Beer brewing equipment component



Equipments Request

Components

1. Milling System

Malt Miller

2. Mashing System

Mash/Lauter Tun

Boiler Tank

Boiler

Heat Exchanger

Wort Pump

Oxygen system

Other accessories are available:

1. Ornamental Pipe;2.Mashing Pipeline;

3. Yeast Feeder; 4. Venturi Tube; 5. Butterfly Valve DN40;

 6. Butterfly Valve DN32;

 7. Soft Pipe; 8. Dregs Rake;

9. Sugar Measuring Cylinder; 10. Saccharimeter;

3. Fermenting System

Fermentation Tank

Other accessories are available: 1. L-Pipe; 2. Butterfly Valve;

 3. Pressure Gage;

 4. Solenoid Valve;

5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;

4. Cooling System

Glycol Water Tank

Refrigeration Machine

Centrifugal Pump

Pump

Relative Pipes and Valves

5. CIP System

Washing Tank

Sterilization Tank

Pump and Valve

6. Controlling System

Mashing Control Panel

Fermenting Control Panel

Refrigerating Control Panel

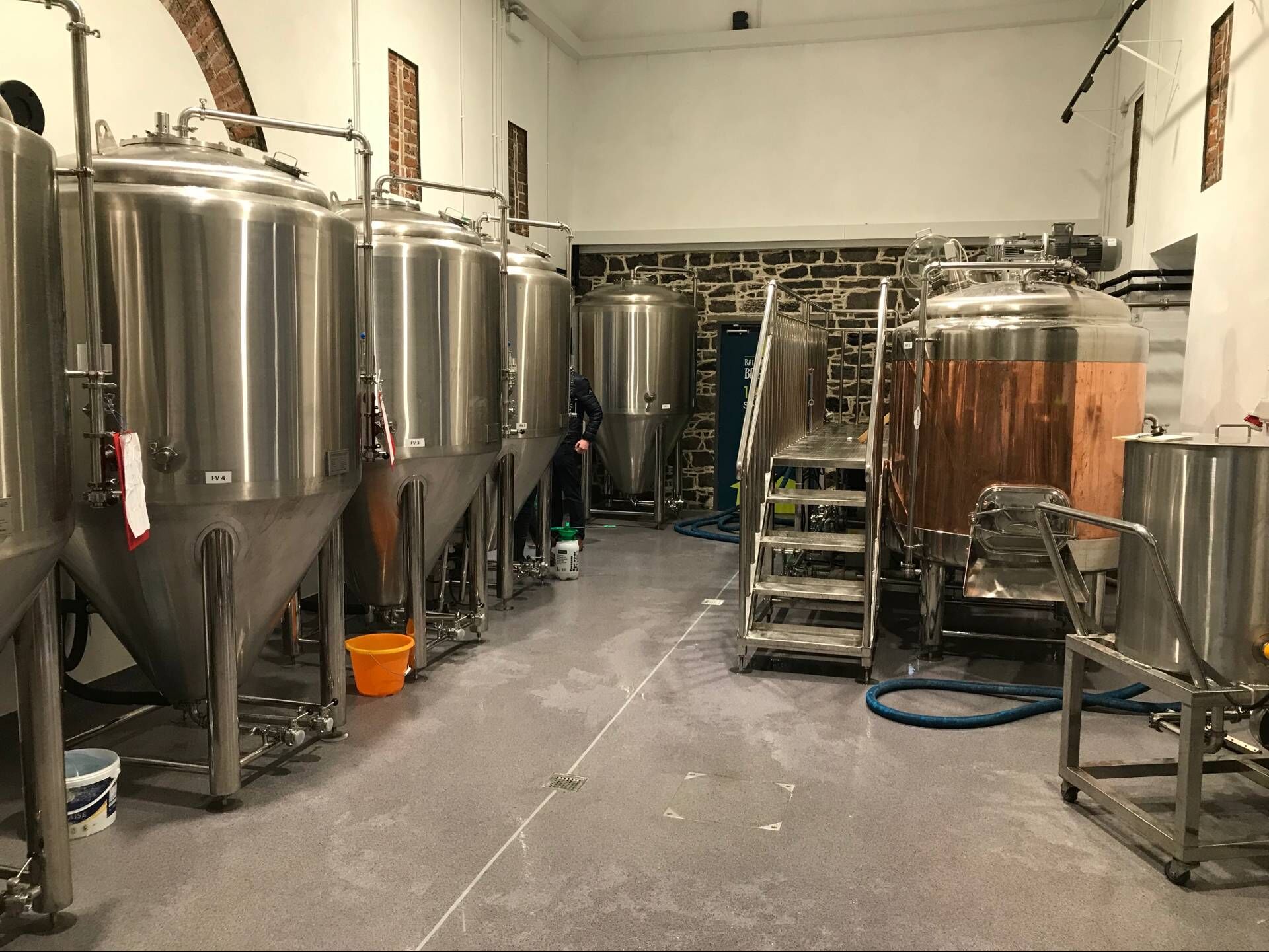

1000l copper 3 vessels beer brewhouse and fermentation tank


beer brewing equipment brewhouse

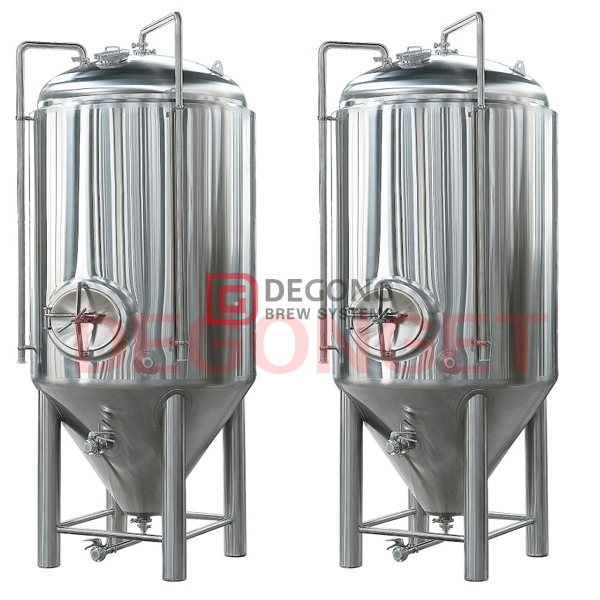

1000L Fermentation tank



Beer brewing equipment features



  • 304 SS or 316LSS or copper(Inner thickness:3.0mm,Outer thickness:2.0mm,Jacket:2.0mm)

  • 30% head space at least for each tank

  • Motorized mash mixers, lauter rakes and spent-grain plow

  • ABB Siemens motors/pumps on the whole system

  • Stainless steel process piping, work cabinet and control cabinet

  • Siemens/Schneider/Omron electric element

  • Grirst hydrator bowl with hot/cold liquor blending

  • Sight level indicators on fermenting system.

  • Insulated with a minimum of 100mm Chloride-Free PU Insulation.

  • Interior Finish: Overall polishing to 0.4 μm without dead corner

  • Adjustable Levelers provide a level tank regardless of floor slope;

  • Design pressusre:3.0bar;Working pressure:1.5bar


Fermentation tank pipe

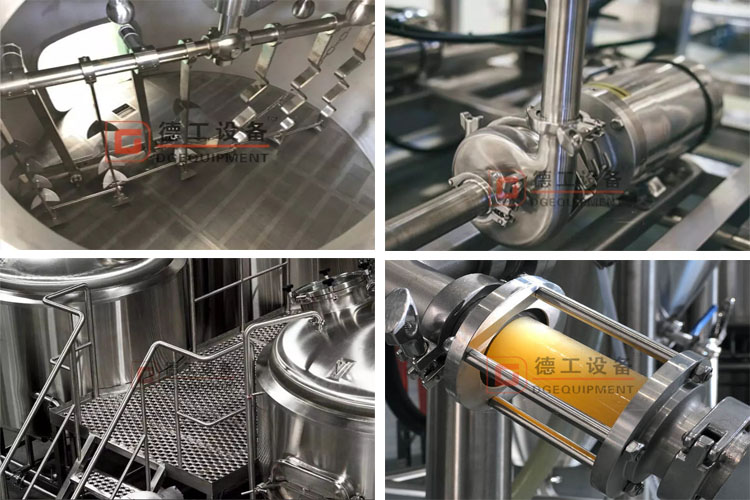

pinxijie

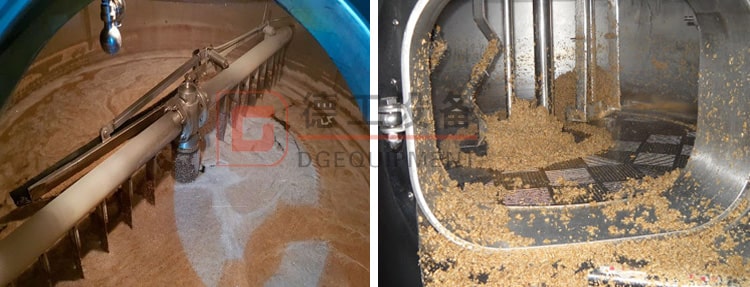

gengdao-1-min

剪贴细节cold water tank and chiller-min


Other type



Size/batch

Fermenters size

Number of fermenters

Beer production per year

Floor space BH+Cellar+filling+store

Height Brewhouse

Height Cellar

2HL(200L)

4HL

4

320HL

30m2

1.9m

1.90m

3HL(300L)

6HL

4

480HL

40m2

2.0m

2.06m

5HL(500L)

10HL

5

1000HL

70m2

2.15m

2.50m

10HL(1000L)

20HL

5

2000HL

100m2

2.5m

3.10m

15HL(1500L)

30HL

5

3000HL

140m2

2.6m

3.40m

20HL(2000L)

40HL

5

4000HL

180m2

2.8m

3.80m

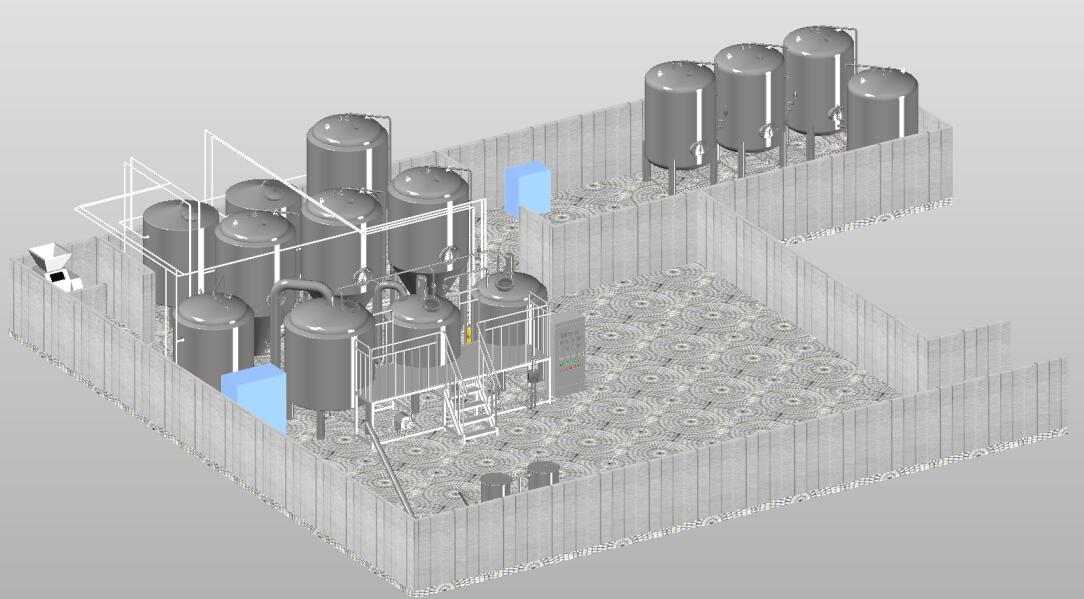

QQ截图20200519162623



Service



After delivering the equipments to our customers, Degong will arrange special worker to do the track service,because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service. Once Degong gets the feedback from customers, we will do our best to deal with it for you.


Installation service of DEGONG



Contact us


Why choose us:

1.Always delivery in time

2.Guarantee is 3 years

3.Install equipment freely

4.Real food grade SUS 304

5.Promise good pre service and after service
