2000L Customizable Side Manhole Stainless Steel Conical Isobaric Pressure Fermentation Tank-Unitank

Fermentation tank is a vertical, tapered, cylindrical vessel for the beer fermentation and maturation processes.Beer fermentation tanks,also refer to Uni-tank,which are vessels of various size usually made from stainless steel that contain a mixture of malted grain, hops, yeast and water to create a liquid collectively known in the brewing process as wort. Fermentation tanks vary in temperature depending upon the beer being produced.

Material:
Insulation:
Polyurathane:
Jacket:
Quantity:
  • DGET-2000L
  • DGET
  • 8438400000


Fermentation tank is a vertical, tapered, cylindrical vessel for the beer fermentation and maturation processes.Beer fermentation tanks,also refer to Uni-tank,which are vessels of various size usually made from stainless steel that contain a mixture of malted grain, hops, yeast and water to create a liquid collectively known in the brewing process as wort. Fermentation tanks vary in temperature depending upon the beer being produced.

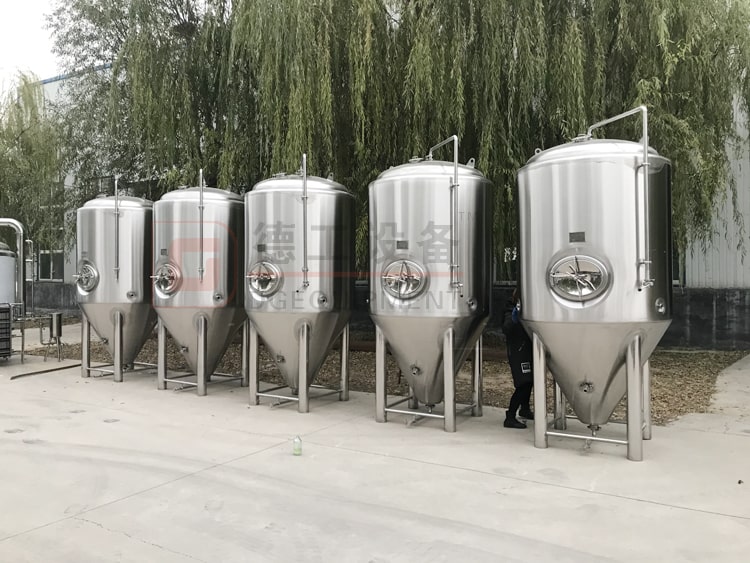

7-min



Fermentation tank features


Tank body

Tanks are available with torispherical and conical bottom

Torispherical lid resists high pressure and design according to DIN Standard

Conical bottom assures the easier removal of yeast from the tank

Tanks are available with side, top and bottom manholes depending on the size and your needs

Top manholes can handle high pressure, easily to handle and made in insulated version

Side manholes are can be easily cleaned without any blind area

Material quality of the whole tank is food grade SUS304/SUS316/AISI304/AISI316

Etched and passivated inner surface with a roughness less than 0.4 µm to avoid the contamination spots that are hard to wash

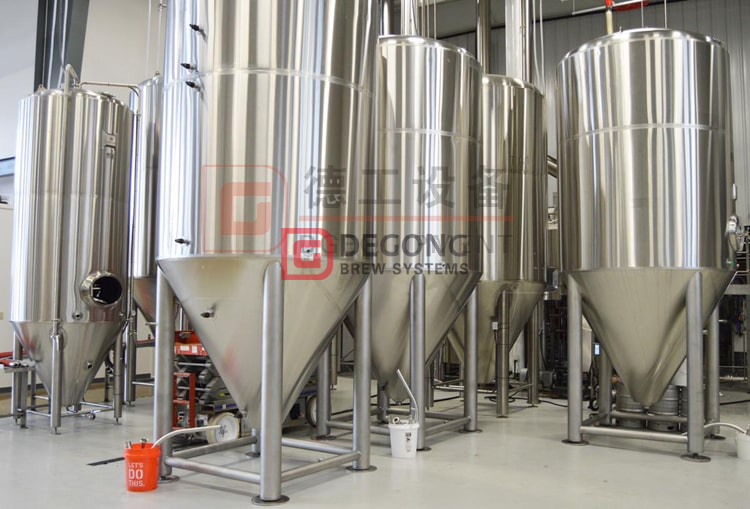

5b2568efbef0d.image-min

Cooling

2-3-4 cooling zone on cylinder and cone depending on the size

Cooling jackets made with the spot welding technology

100 mm PU foam insulation with a thermal conductivity of 24 mW/mK for the safest storage of heat and economical energy use

100 % stainless steel coating available in a variety of surface finishes such as 2B pickled, different surface roughnesses, polished and marbled

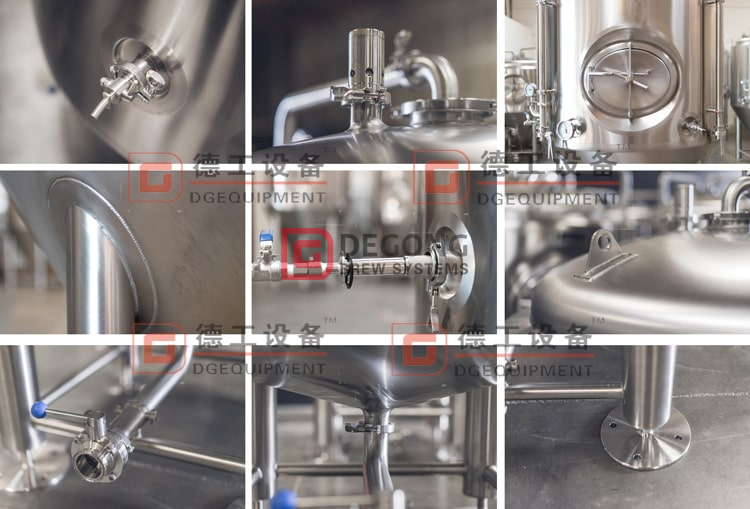

未标题-1-min (2)

Fittings

All pipes and fittings are made in accordance with DIN Standard

Material quality of all fittings are food grade SUS304/SUS316/AISI304/AISI316

Vacuum and pressure safety valves, complying with all standards and positioned for an easy cleaning

Stainless steel pressure gauge, optionally can be ordered in flat membrane version

Technological pipings on the tank (beer pipe, yeast pipe, CIP pipe) produced with using the bending technology where no welding is used resulting that there are no infection points that might occur at welding jointst

Depending on tank sizes, each tank equipped with 1-2-3 pcs of accurate thermal sensor


Technical parameter


Dimensions

We can provide normal dimension if customer dont have special requirement.If have,we will

Design suitable dimension according to customers requirement.

Capacity

Nominal capacity plus 25%

Top Head

Dished head

Lifting Lugs

2 lifting lugs

CIP

Removable CIP & fixed spray ball (180° up, 65mm) on ” TC with ” TC line down to

working height

Wall

Inner thickness 3mm;Outer thickness 2mm.

Bottom Cone

60° cone angle, ”1½ knuckle radius to cone

Cooling Jacket

On sidewall and bottom cone – number of zones determined by tank size

Maximum 0.3MPA working pressure, 1” to ” FNPT inlet / outlet

Legs

4pcs completely SUS304 heavy duty legs with leveling pad and legs support

Insulation

100mm polyurathane

Manway

Top manway or side manway

Drain

1½”  TC butterfly valve c/w “J” pipe

Tank Material

All quality inspected 304 stainless steel alloy

Exterior Finish

2B with all welds ribbon polished

Interior Finish

 2B with all welds TIG welded with heat stain removed

Tank Pressure

Maximum 0.3Mpa

All accessories on tank

•Full sanitary sampling valve

•TC Vacuum Pressure relief valve on top head

•Mechanical relief valve 2 bar on CIP arm

•Shockproof pressure gauge on CIP arm

•Dry hopping port with solid end cap

•Thermowell for high accuracy temperature sensor

•Raking arm

•carbonation stone

•TC RSL Sample valve


Delivery&Packing


We will choose Wooden case to protect the equipment from being damaged in transit.If the equipment's height exceed the container's height,we will put down the equipment and fix it by iron frame.
