Thickness of material (mm): | |
---|---|
Insulation: | |
Matrial: | |
Heating method: | |
Control panel: | |
Availability: | |
Quantity: | |
DGET-1000L
DGET
8438400000
DEGONG can design and manufacture turnkey brewing system for commercial used or restaurant/brewpub/bar used...The brewing system is customized according to your requirement,such as brewhouse configuration(2-vessels or 3-vessels,steam heating or electric heating),quantity of fermentation tank,top manhole or side manhole....If you don't know more about the brewing equipment,our engineer can give you the most professional suggestions according to your brewing plan,such as daily output or others....
The turnkey beer making system includes milling, mashing system, fermentation system, cooling system, CIP and control system.Every system is indispensable and variable.In other words, the system with same size has thousands of different configurations.
Beer Brewing equipment introduction |
Brewhouse :
SUS 304/SUS316/Copper clad,Inner Thickness=3mm,Outer thickness=2mm;Jacket thickness=2mm
2 vessels or 3 vessels or 4 vessels
Optional heating style of steam, electric and direct fire for brewhouse tanks
PLC control panel with Siemens,Omron,Schenider element,and accord with EU standard
VFD controlled reducer and wort pump
Assembly sanitary rotary spray balls for cleaning
PU insulation
Temperature sensor(RTD) in a thermowell
Rake and mash agitator assembly with top/bottom reducer
False bottom for lauter tank with 0.7gap
Grist hydrator with strike water mixing station
Plate heat exchanger for cooling wort
Grant /hop guns for filter or storage first wort
Top glass manhole for checking mashing condition
Sight glass to check if the wort is clean
Wort oxygen system
SUS 304/SUS316,Inner Thickness=3mm,Outer thickness=2mm;Jacket thickness=1.5mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
Insulation: Polyurethane; TH=100mm
Glycol Jacket: Dimpled plate on cone and side
CO2 blow-off arm with butterfly valve
Full sanitary sampling valve
Breathing valve on the top of tank
Mechanical relief valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Dry hopping port with solid end cap
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Thermowell for high accuracy temperature sensor
Product feature |
This set of micro brewery equipment is for micro brewery, especially for pub, restaurant, hotel, etc…
Novel structure and attractive appearance
More competitive price and better quality
CE, ISO, TUV approved equipment
More humanized design which allow you to operate easily
Compact design saving your space
All the materials touching the beer directly are all top quality food grade stainless steel.
We use the first rate valves and manholes for all our equipments.
I am here to guarantee all our customers that the materials are nonmagnetic.
The thickness of the material exactly fit in with what showed in the specification sheet.
If you are a new comer to the beer making field, Don’t worry, I will give you our professional recommendations. And the equipment must be top quality engineered.
Engineer is always available to make the relative 2D and 3D drawings for you for your reference.
Pictures show |

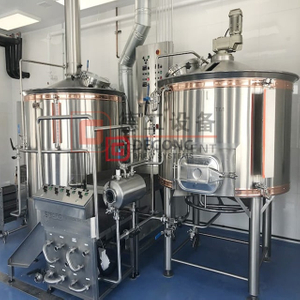

Microbrewery equipment

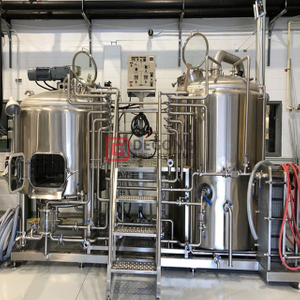

Personal brewery used brewing system

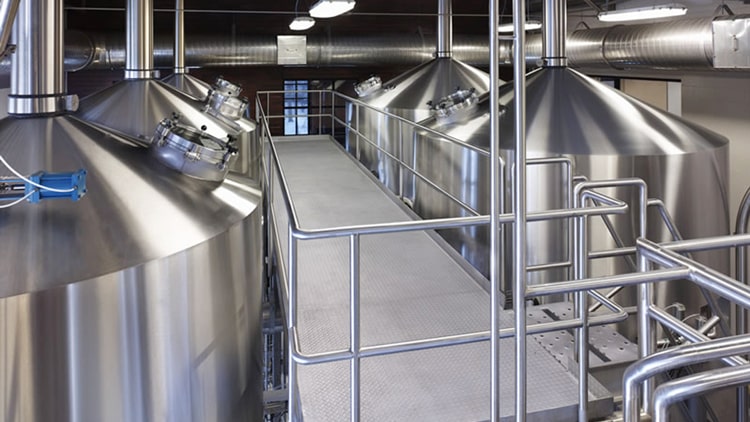

Commercial used large beer brewing system
