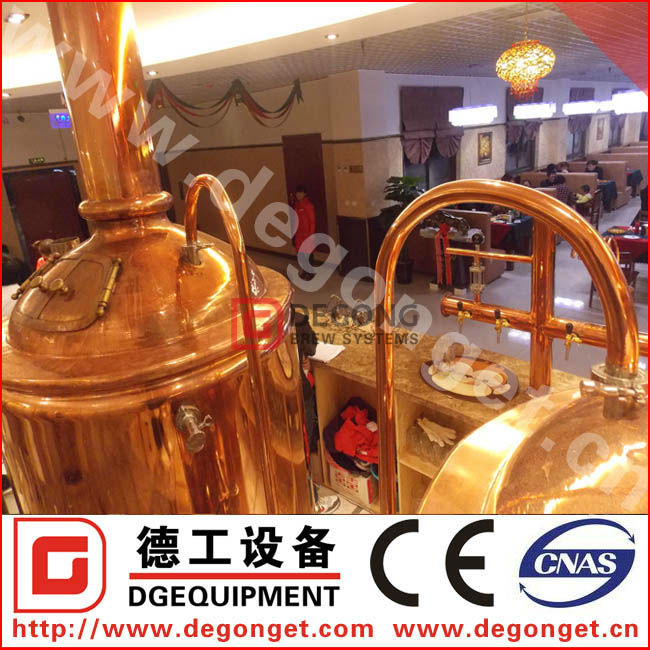

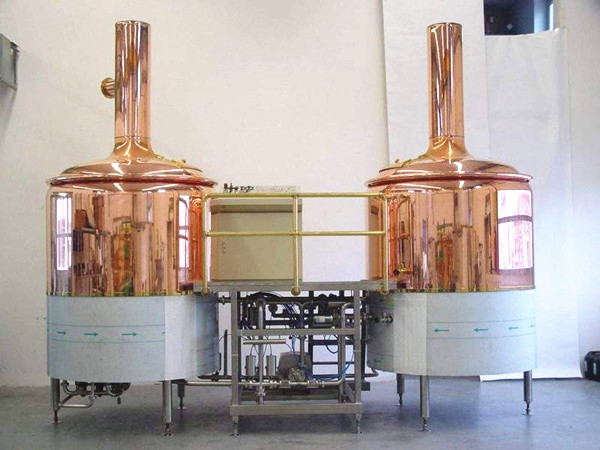

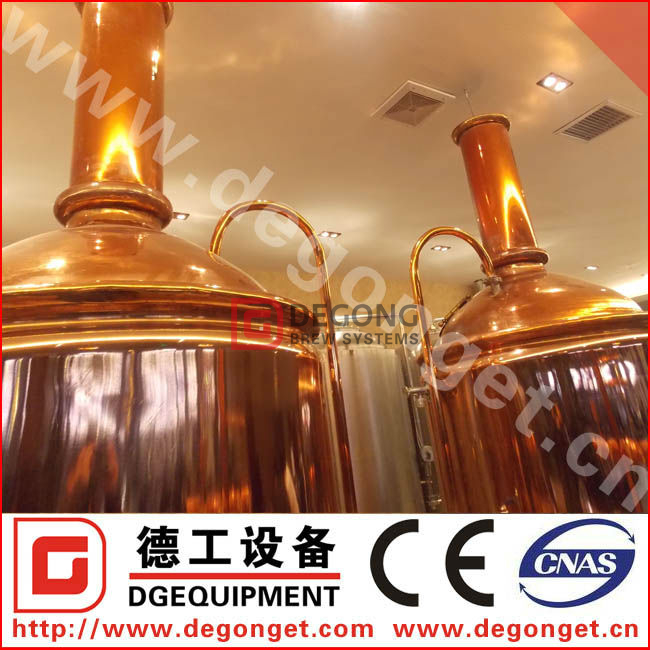

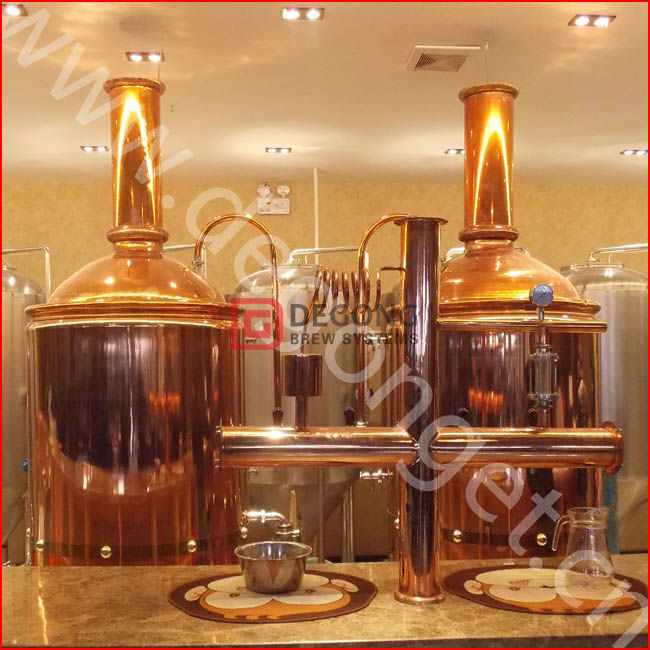

The 500L brewery equipment is completely designed and manfauctured based on our years of experience and customer's feedback. Optimized design and easy installtion. Because it is a set of combined type of brewhosue which means it can save much more space while the productivity is same as the 3-vessel brewhouse. You can brew up to 3 batches per day with the brewhouse. Steam heating method ensure the wort can be heated more evenly which is good for the quality of your beer.
Control method: | |
---|---|
Certificate: | |
Material: | |
Heating method: | |
Type: | |
Quantity: | |
Production description of 20HL brewing system |
500L brewery equipment is used for craft beer brewing. Every brewery equipment is planned and manufactured according to customers' requirements. Our R&D team has been working on the optimization of the brewing system from the principle to installation. With the 2-vessel brewhouse plush a hot water tank and a cold water tank, you can brew about 4-5 batches per day which means you can get up to 2500L beer per day. The system is semi automated so except that you need to switch the valves manually, the other parts are all automated.
Standard configuration list of the 500L brewing system |
Malt milling system | Double roller malt miller *1 | ||
Size: 600*570*570mm | |||
Material: stainless steel or carbon steel | |||
Mash system | 500L mash/lauter *1 | ||
500L kettle/whirlpool tank *1 | |||
1000L hot water tank *1 | |||
Fermentation sytsem | 500L fermentation tank * 5 | ||
Insulation layer PU 100mm | |||
Material: stainless steel 304 | |||
Refrigeration system | 500L glycol water tank *1 | ||
3HP Chiller *1 | |||
Pump *1 | |||
CIP system | Sterlize tank *1 | ||
Alkali tank *1 | |||
Pump *1 | |||
Controlling system | Control cabinet | ||
Stainless steel | |||
PLC |
Main features of the system |

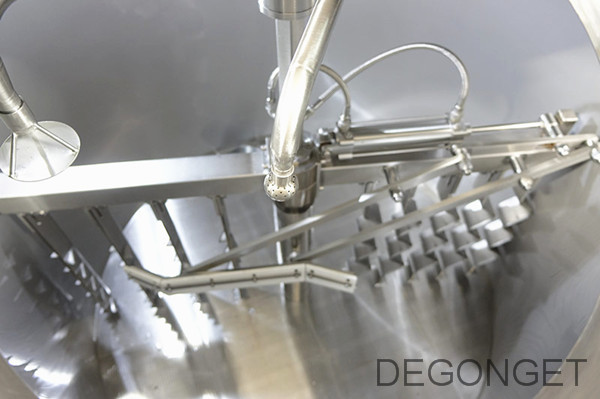

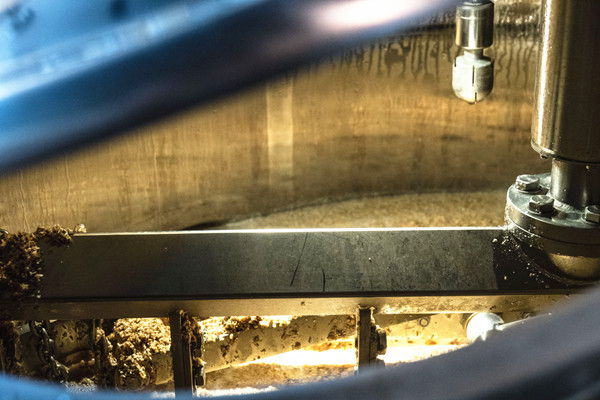

Mash/Lauter tun:
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
- Top domed thermostatic hermetic closed glass manway door.
- VFD agitator motor SIEMENS.
- Top domed lighted sight glass.
– PT100 temperautre sensor probe
– Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
– Bottom mash inlet /outlet.
– Middle side wort/water inlet/outlet.
– Top dome wort /water inlet.
– Middle cone wort outlet.
– Quick installed Spray CIP balls.
Kettle/Whirlpool tank:
Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
– PT100 temperautre sensor probe
– Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
– Bottom mash inlet /outlet.
– Middle side wort/water inlet/outlet.
– Top dome wort /water inlet.
– Middle cone wort outlet.
– Quick installed Spray CIP

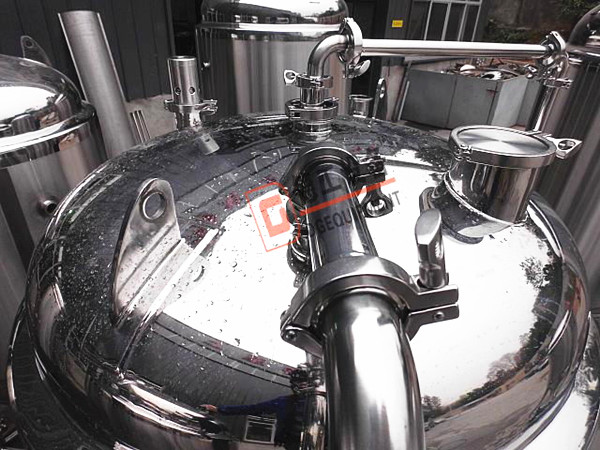

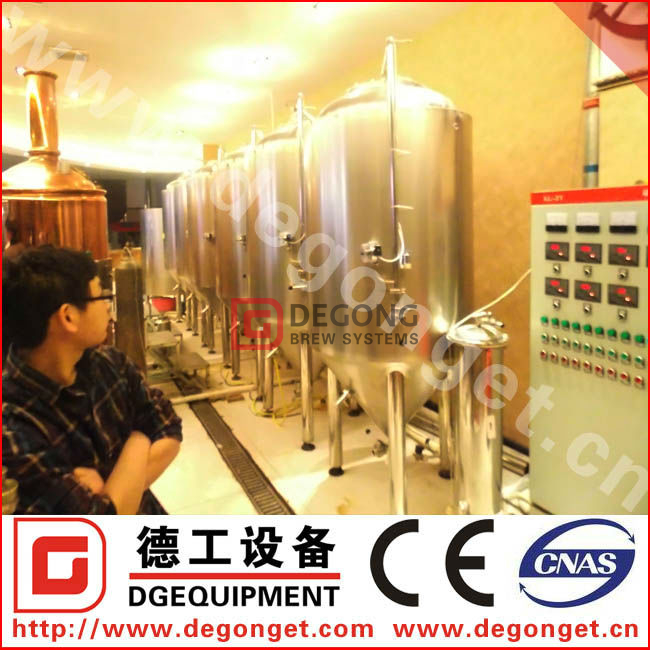

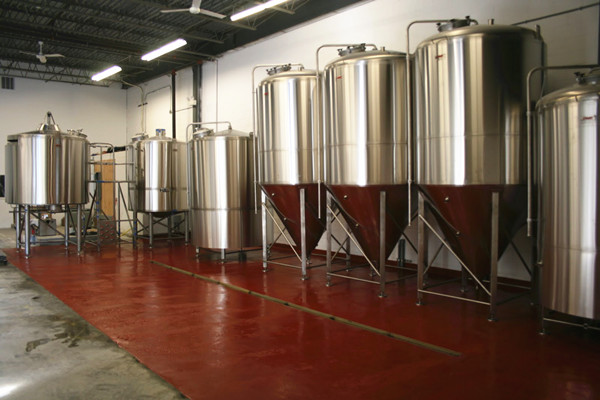

Fermentation tank
- Stainless steel 304 sanitary construction
- 100% TIG welded and sanitary polished
- Design pressure: 1.5-2 bar, test pressure: 3bar
- 4 heavy duty stainless steel legs with adjustable height and leveling footpads
- Interior shell: 304 stainless steel , thickness is 3 mm
- Interior is 2B and exterior finish bright polish, sanitary surface
- Tri-clamp sanitary fitting
- Vacuum & pressure relief valve
- Pressure gauge
- Thermometer gauge
- Sample valve
- Lifting lugs
- Ladder hooks, also designed to hold brewers hose when not is use
- Side manhole
- CIP arm and rotary spray ball 360 degree of coverage
- Dual zone cooling jacket with glycol inlet and outlet
- Rotation racking arm
- Dry hopping hole
- Thermo-well (Temperature sensor is also included)

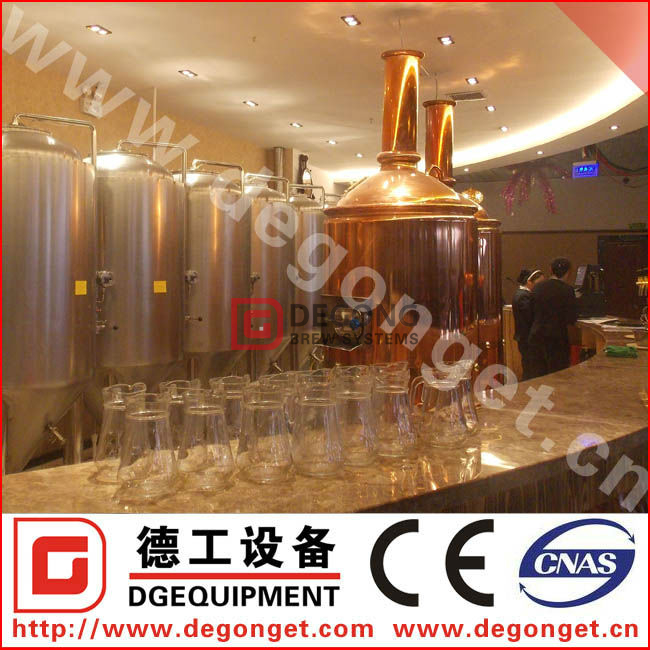

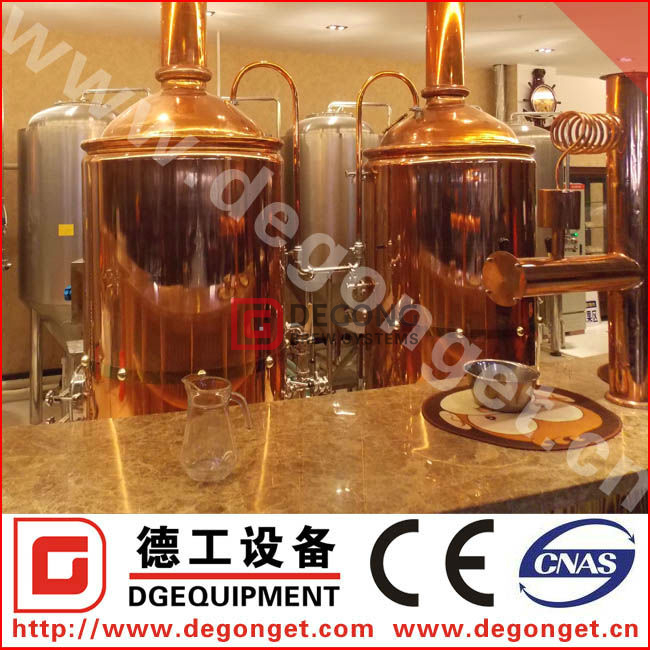

Detailed pictures |
Our services |
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
