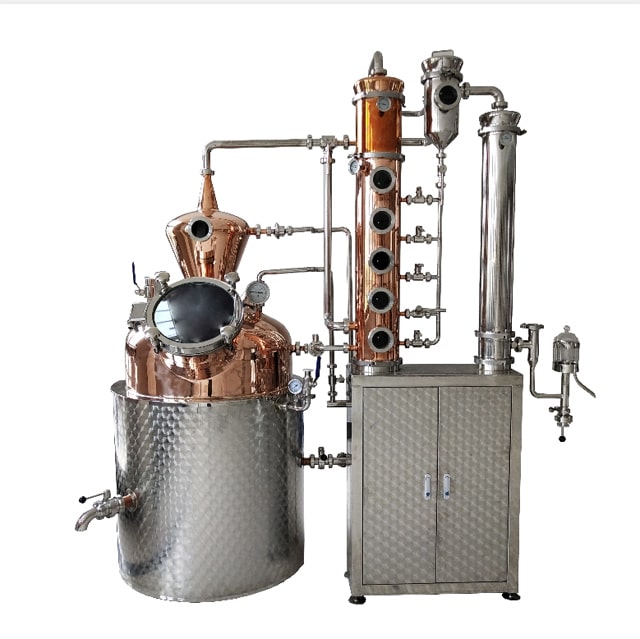

500L CE Approved Distillation Equipment Copper Alcohol Distiller Stilling Machinery for Rum&Vodka&Gin&Whisky

Distillation equipment is the result of continuous innovating and developing based on our experience of brewery equipment manufacturing. DEGONG distillation equipment can be used to make fruit wine, whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small and medium size, automatic control, easy operation and beautiful outlook. The equipment is suitable for small and medium sized workshops, hotels etc.

Pot Still:

1. Material: stainless steel/ red copper / stainless steel with red copper

2.Assembled with agitator

Column:

1.Material: copper/ stainless steel

2.Reflux control valve

3.Sight glass, CIP and thermometer at every plate.

4. Material of condenser: stainless steel/red copper/stainless still with red copper

• The max alcohol concentration can reach 92%-95%.

• Heating way: electric elements with oil/water jacket, also direct fire or steam heating is ok if you need.

Boiler

We can supply apple shape and dish top and bottom shape

Goose neck

material: T2 red copper

We have different shape opition

Gin basket

To improve flavor and extend the function of your system.

4 plates or 16 plates distillation column

it consists of red copper column, bubble cap, down comers, bubble plate, red copper screw. we can tailor the height and plate number for your need, the max height of column can reach 2000mm.

Bubble caps and trays

All the bubble caps and screws are made of T2 grade red copper and the screw designed by our company without no dead corner.

We have 6 sizes bubble caps: DN26/DN38/DN45/DN52/DN65/DN76

Dephlegmator

A reflux condenser at the top of the column that sends vapor back to the still pot. And the material is red copper or SUS 304 with flange connection.

Condenser

A heat exchanger in which hot vapors are cooled down and condensed into liquid. Structural tube type exchanger with cooling water inlet and outlet.

Parrot outlet

we can supply different shape of outlet to meet your request.

Column support

All support are made of stainless steel, we can do different shape according to your need.

CIP pump and pipe fittings

All SUS 304 pipe fittings with ex-proof centrifugal pump( UL, CSA, CE certificate). We supply hand valve and automatic valve option.

Control Panel:Material of control box is stainless steel 304 or plastic option;

Suitable Voltage:208/220/240V single phase 60Hz,Which can adjust the heating temperature by module.

Parrot spout with high sanitary glass cover, top is copper lid, direct to open, bottom with valve.

What kind of distiller we can provide

The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

 1.Plastic film, bubble film
2. Fumigation-free wooden case for LCL
3. Plastic film&bubble film wrapped, iron frame if needed, fixing for FCL
4. Up to export standard, safety transportation
