For commercial beer brewery equipment,the complete microbrewery is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned, but larger than breweries for the restaurant, bars etc., as it distributes beer to local restaurants and bars, parties etc. The whole set equipment is made of SUS304 stainless steel.The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements.
|Thickness of material (mm):|
1.Complete new auxiliary systems.
2. Auxiliary systems equipment selection of leading brand and imported brand equipment.
3. The auxiliary systems are long service life, high-performance, high-quality, low-loss.
4. Stainless steel fittings materials are all adopt SUS304/316, applicable beer equipment to ensure the safety of food grade.
5 electrical accessories reach CE export standards.
6. Various auxiliary systems role in the whole equipment system, supporting reliable
7. Supporting auxiliary system voltage and frequency match exactly.
8. Stable quality, superior performance, strict quality control.

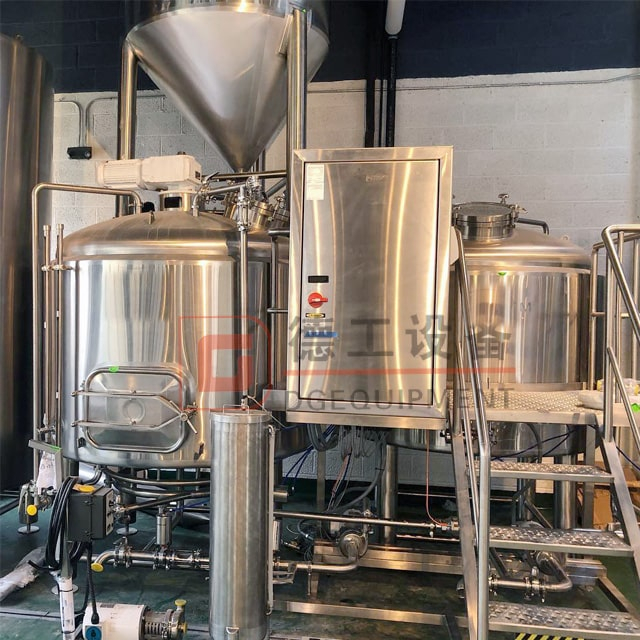

commercial brewing system brewhouse
We designed and fabricate two types of 500L/1000L brewery brewhouse.
1. Type one is 2-vessel brewhosue: mash - lauter tun and boil - whirlpool.
2. Type two is 3-vessel as mash / boil tun, lauter tun and whirlpool.
3. All tanks are made of SUS304 at least quality,
4. completely polyurethane 50mm insulated,
5. PT100 temperature sensor
6. with control cabinet (touch panel, semi-automatic operation or full-automatic operation is optional. )and heat exchanger.
7. All connections and fittings are equipped, completely piped and wired.
8. Steam heating, electric heating,direct fire are available.

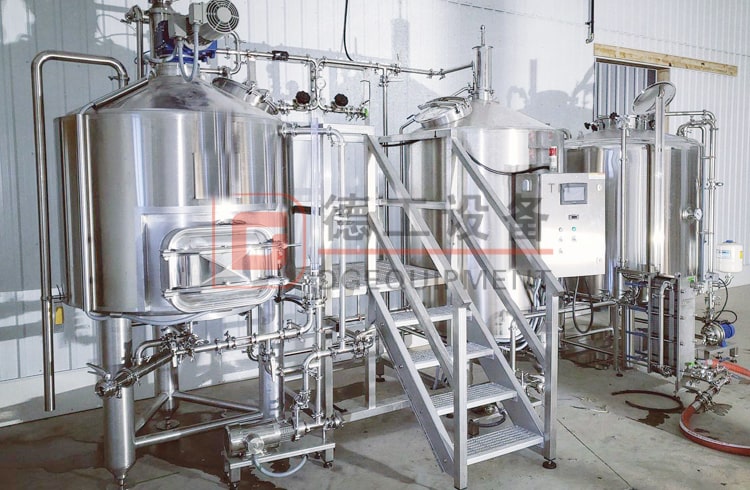

3-vessel brewhouse system
2-vessel brewhouse system
with circulation pump made of stainless steel
with automatic temperature regulation
with dry operation protection of pump
made of stainless steel double walled, completely insulated
with steam heated
with all connections and fittings
stainless steel raker
Lauter tank raker and wort pump with VFD ABB motor to adjust the speed. Laser cutting sieve plate with the gap 0.7mm and thickness is 4mm.
top glass manhole
Tempered Glass top manway for brewhouse.
Plate heat exchanger
Two stage type plate heat exchanger, stainless steel type.
Glass type sight glass to make sure wort more clear during lautering
Stainless steel 304 operation platform
beer brewhouse system details
If you are interested in beer brewery equipment, get in touch with me freely.
