500 Litres Stainless Steel 304 Electric/steam Heating 2 Vessel Brewhouse Microbrewery Brewing System with 100mm Insulation

Based on quantity of tank,the brewhouse can be divided into 2/3/4 vessels brewhouse.

2-vessel:mash/lauter tank+kettle/whirlpool tank+hot liquid tank

3-vessel:mash tank+lauter tank+kettle/whirlpool tank+hot liquid tank

2 tank 3 vessels:Combined MLT(mash/lauter tank is above of hot water tank)&HLT(hot water tank at below of mash/lauter tank)+KWT(kettle/whirlpool tank)

4-vessel:mash tank+lauter tank+kettle tank+whirlpool tank+hot liquid tank

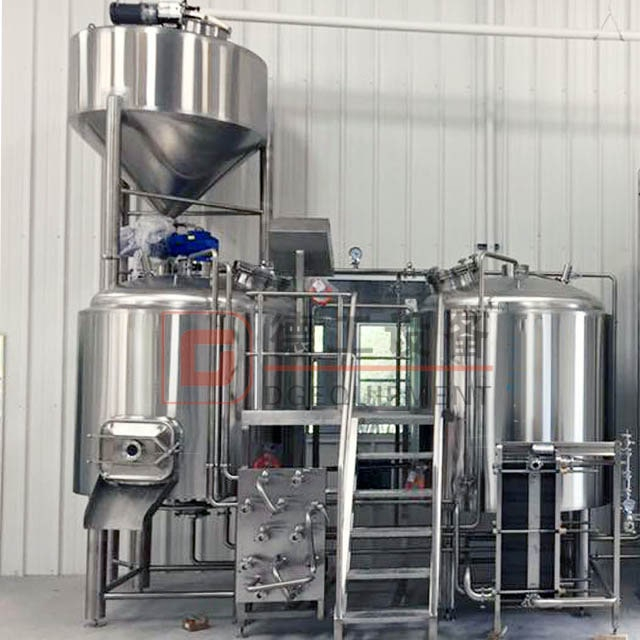

Two vessel brewhouse in its basic configuration. With a hot water tank the unit will allow one to two brews per day.

• The mash/lauter tun with a wedge wired filter plate offers 12 % filtration area. The stir/blade direction and speed can be adjusted, spent grain can be achieved from side.

• The kettle/whirlpool tank with electric heating. The electric elements is installed in the tank.Wort inlet for whirlpool tank is tangent, with different bigger inlet and smaller outlet size, which improves the flow rate after wort goes into the tank.

• A buffer tank can be configured and aligned with the lauter tun design avoiding vacuum effect during the lautering process, which also extend the using life of lauter tun.

Basic configruation

1.Mash/lauter tank

Gross volume:650 liter

Effective volume:500 liter

Material:SUS 304

Design temperature 150 degrees

Thickness: Inner 3.0 mm;Outer 2.0mm

Cone angle 150 degrees

Insulation material: Rockwool 100mm

Raker and motor on top

Glass top manhole

Spent grain removable side manhole

Temperature display

CIP cleaning rotary head

Wedge wired false bottom filtration plate

Sparging pipe

2.Kettle/whirlpool tank

Gross volume:650 liter

Effective volume:500 liter

Material:SUS 304

Design temperature 150 degrees

Thickness: Inner 3.0 mm;Outer 2.0mm

Cone angle 150 degrees

Insulation material: Rockwool 100mm

Electric, gas or steam heating

Glass top manhole

Temperature display

CIP cleaning rotary head

Tangent wort inlet port

2 Wort outlet

Bottom draining port

3.Mash pump

Capacity 3 m3/hr

Pressure head 18 m

Material SUS 304

Frequency controlled

Seal Single end

4.Plate heat exchanger

Frame material SUS304

7M2

Single stage or double stage optional

Stainless steel conical beer fermenter are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), primary fermenter or unitanks as they are used both for fermenting and lagering.Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

• All of our fermentation tank are pressure tested, 100% sanitary welded, jacketed and insulated.  Outter shell: SUS304, thickness 1.5mm, brushed finished

• Inner container: SUS304, thickness 3mm, smooth ground welds - 2B finish

• Glycol jacket: SUS304, thickness 2mm, dimple welded

• Insulation material: polyurethane, 80 mm thickness

• Head space: 25% over stated size

• Pressure rating: 1.5bar working pressure

• Connections: PVRV, multi-zone coolant inlet/outlet, Pt100 interface, sample valve, shadowless side man-door, hop port, carb stone, separate blow-off pipe, rotating CIP ball and piping, rotating racking arm, analog temperature gauge, and over-sized yeast dump port.

If you have interest in beer brewing industrial,welcome to contact me freely
