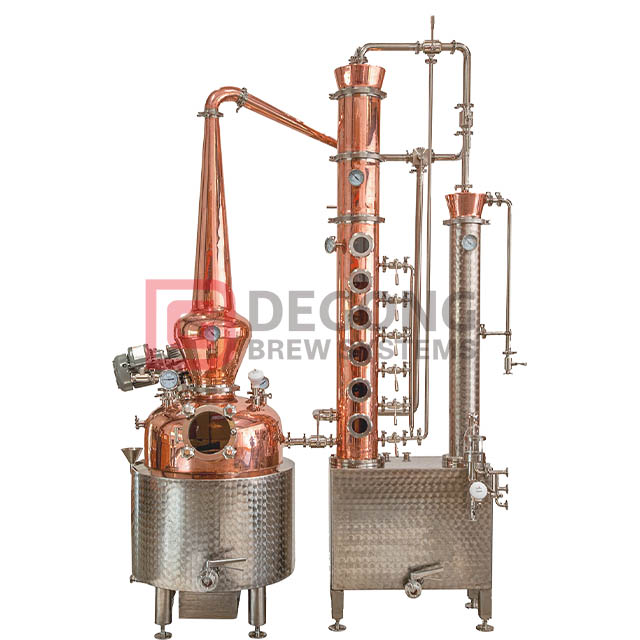

300L Multifunctional Distillation Equipment Brandy Distiller Gin Copper Distillery Pot And Column Still

Our equipment is made of copper and 304 stainless steel. Stainless steel is durable and copper conducts heat well, helping to extract aromas. The machine is equipped with a gin basket to add aroma and flavour to the alcohol vapour.
Availability:
Quantity:
  • DG-300L
  • DEGONG

300L Multifunctional Distillation Equipment



Name

Explain

Distillation pot

1. Working Volume: 300L

2.Style: three layer design, Heating with electric heating rod, including polyurethane insulation layer.

3. Material: Copper & SUS304 stainless steel

(copper inner tank , stainless steel heating layer and fish scale coating)

4.Configuration: Full sight glass manhole, Safety valve, Pressure gauge, Thermometer, PT100 temperature sensor,

Ball valve, Drain valve, Cleaning ball, Check valve, liquid level meter, motor mixing, lighting, etc

5.Thickness: The thickness of copper liner is 3mm, the thickness of steam jacket is 2mm, and the outer casing is 1.5mm

6. Heating power: 30kW 380V / 50Hz / 3N ( Two 15kw )

Onion head

1. Material: Copper

2. Thickness:3mm

3. Configuration: Sight glass, Cleaning ball

Column

1.Material: Copper

2.Thickness:3mm(shell wall thickness)

3. Configuration:  It is equipped with red copper clapboard and copper bubble cover,

Each layer is equipped with cleaning balls; 4 layer clapboard, 5 Sight glass, the bottom layer is the reflux layer.

Dephlegmator

1.Material: Copper

2. Style: Columnwise dephlegmator (Shell and tube)

3.Thickness:3mm(shell wall thickness)

4. Configuration: Thermometer and crown cap Capping

Gin Basket

1. Material: 304 stainless steel

2. Configuration: Sight glass, crown cap, etc

3. Built in: clapboard

4. Thickness: shell thickness: 3mm.

Condenser

1.Material: 304 stainless steel

2. Style: Columnwise dephlegmator (Shell and tube), Inside are many stainless steel tubes

3.Thickness:3mm(shell wall thickness)

4. Configuration: Thermometer and crown cap Capping

Mouth of wine

1. Material: SUS304 stainless steel & glass cover

2. Style: simple type, easy to observe the wine situation

Storage box support

1. Material: SUS304 stainless steel(fish scale plate is used for coaming)

2. Style: new cabinet type bracket

3. Function: used to support tower and condenser

At the same time, it is a double door style with a certain storage space inside

271

DEGONG 300L Multifunctional Distiller

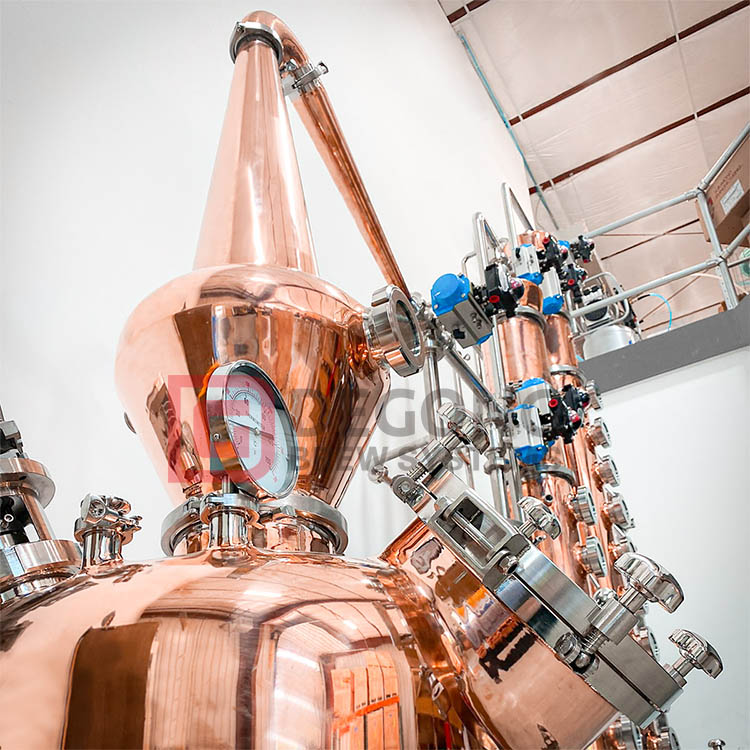

272




269

Thermometer and Column Plates and CIP Balls
