300L Microbrewery equipment is very popular for small brewpub,restaurant....Some customers have their own bars or restaurants, and they choose 300L Micro Brewery to brew craft beer to attract more customers; Some customers are brewing enthusiasts，and they choose 300L equipment to brew beer according to their preferences; And some large industrial breweries choose 300L equipment for experiments, before mass production, they choose 300L small equipment to adjust the beer formula to determine the final brewing formula

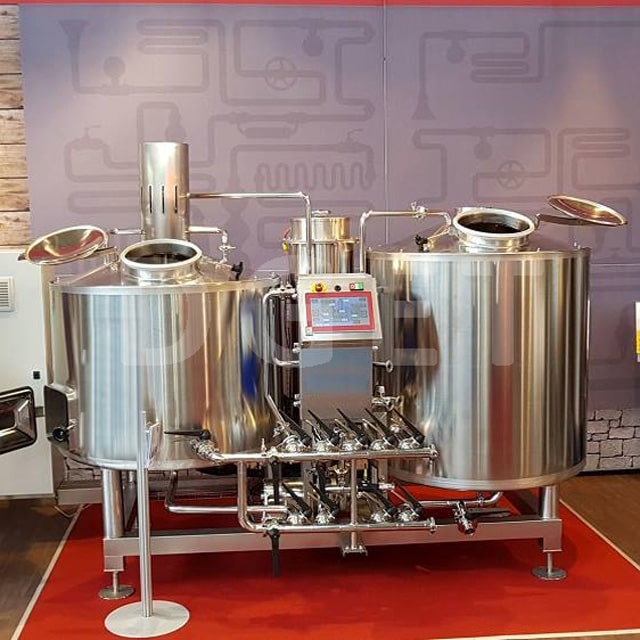

300L beer brewhouse
1.Mash tank:heated vessel for the mixing of the squeezed malt in water and boiling of malt mash
2.Lauter tank:the tank with special sieve for the filtration of malt mash (separation of liquid wort from solid parts of malt)
3. Boiling tank : the heated vessel for the boiling of wort with hops. This function may be integrated into the malt mash boiling tank
4.Whirlpool tank – tank equipped with a tangential inlet for centrifugal separation solid rests of hops from wort – this vessel may be situated also as an external device
Motors with agitators/Raker for mixing and cutting of malt mash
False bottom in lauter tank with gap of 0.7um
a hot water tank and a cold water are usually needed
Be made of food sanitary stainless steel 304
Inner surface treatment: welds grinded to Ra 0.4µm without dead corner.
100% TIG welding with pure argon gas shield
Insulation: Polyurethane-thickness 80 mm.
Temperature way：Double metal thermometer
CIP rotary spray device
Thermo well for high accuracy temperature sensor
REMARK:For 300L Micro brewery equipment,combined mash/latuer tank+boiling/whirlpool tank is the best choice

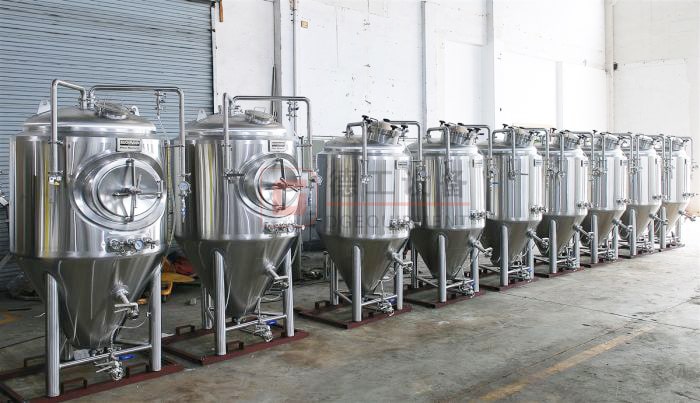

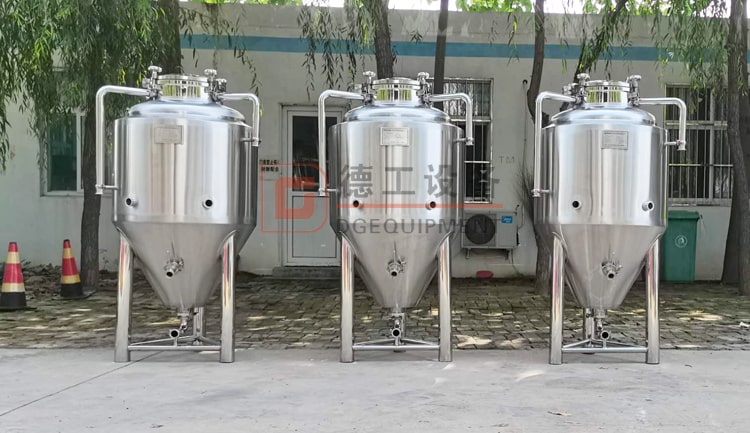

300L/600L Fermentation tank
Inner Shell: 3mm, 304 Stainless Steel
Outer Shell: 2mm,304 Stainless Steel
Design pressure 3bar, testing pressure 2bar
25% headspace for fermenting process.
Equipment with : cone 60°resist compression design
80mm Thermal Polyurethane Insulation with both cone and shell coolant jackets.
Tank inner side is polished within 0.6µm sanitary finish.
Tank outside is 2B stainless steel plate.
Shell and bottom cone cooling jacket for better
Component on tank
1.Dimple cooling jacket
2.Breathing valve on top
3.Hops adding port on top
5.TC connected CIP arm with 360° coverage spraying ball
6.Pressure relief valve PVRV 2 bar on CIP arm
7.Full sanitary metallic sealed sampling valve
8.Hydraulic shock pressure gauge on CIP arm
9.Thermowell for high accuracy temperature sensor
10.Rotating racking arm

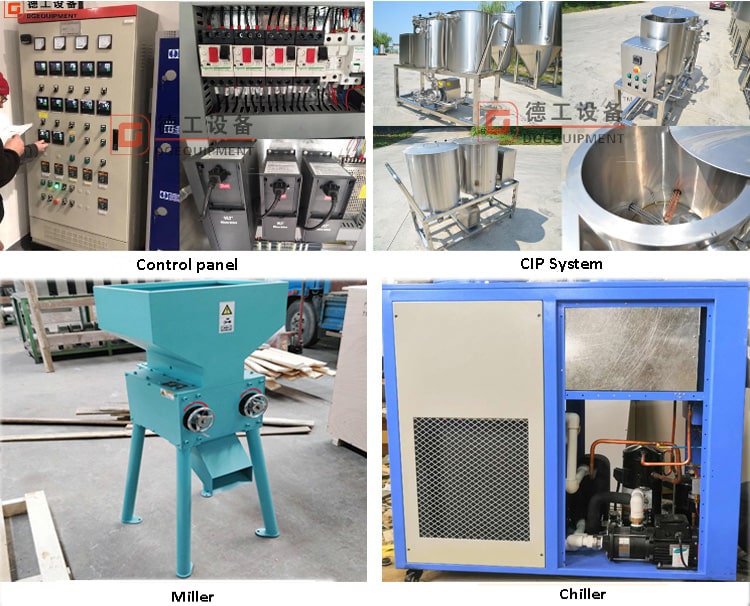

Other necessory system
Miller system:Breaker Roll Type; Adjustable mill degree;
Cooling system：Glycol water tank; Cold water tank; Chiller; Circulation pump
CIP system:Alkali tank; sterilization tank; pump
Control system:Siemens,Omron,Schneider,Danfoss component
Weather you want to brew craft beer or brew commercial/industrial beer,weather you want to start a new beer brewery project or expand your brewing scale.No matter what you want to brew lager or ale, stout beer or light beer,barley beer or wheat beer,fruit beer or corn beer,low concentration beer or high concentration beer....DEGONG brewing equipment always can meet
