|Manhole of fermenter:|| |
|Heating method:|| |
Brewery feature: Small investment, quick effectiveness, high quality, lower prices, the investment repayment is fast, the service life of equipment is long, easy operation, lower cost.
Malt mill machine used roller mill, distance adjustable.
The two rollers during grinding relative rotation, the rotational speed of a roller is fixed, the other is adjustable. Operation to ensure malt evenly distributed over the entire roller, and feed rate is moderate, consistent feed rate.

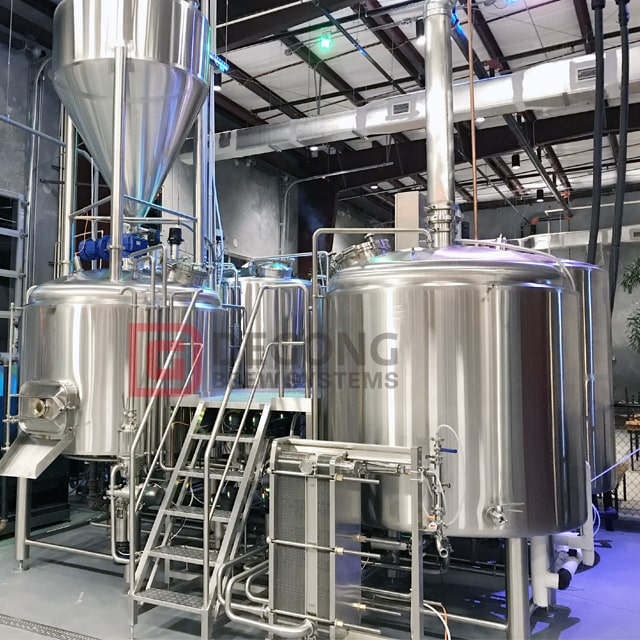

Option A is 2-vessel brewhosue: mash/lauter tun and kettle/ whirlpool.
Option B is 3-vessel as mash/kettle tun, lauter tun and whirlpool.
All tanks are made of SUS304 at least quality,
Completely polyurethane 80mm insulated
PT100 temperature sensor,
With control cabinet (touch panel, semi-automatic operation or full-automatic operation is optional. )and heat exchanger.
Steam heating, electric heating are available.

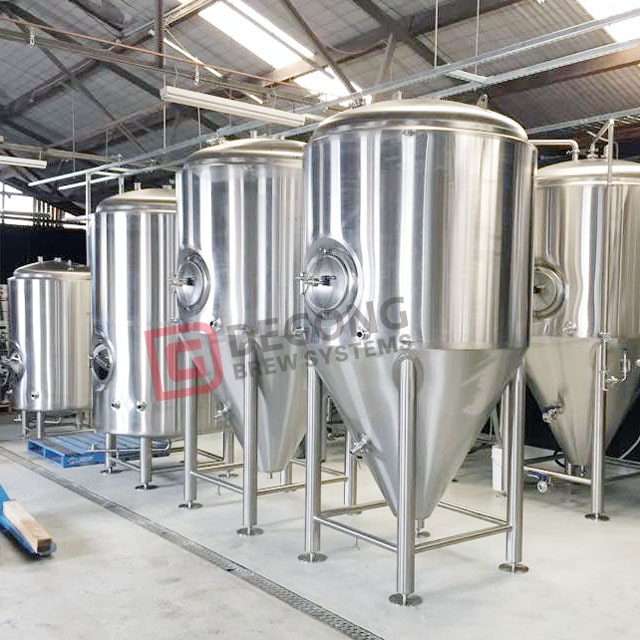

Conical fermentation tank and horizontal lagering tank are available in size of 500L or 1000L.
SUS304, internal wall 3mm, inner welds polished; outer shell 2mm, surface polished.
Equipped with chiller and cold liquor tank.
Manhole on the top, top CIP spray heads, security valve and pressure measurement.
Conical fermenter is 60 degree bottom, drain at the center of bottom,
Cooling media inlet and outlet.
PU insulation 80mm.
