300L, 500L, 1000L Vodka/Brandy/Whiskey Copper High Concentration Alcohol Distilling Equipment Distillery

DEGONG distilling equipment can make wine, whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small-medium sized, centralized, automatic controlled, easy operating and beautiful outlook. Can be used small-medium sized workshops, hotels etc.
Material:
Thickness of material (mm):
Heating method:
Manhole:
Quantity:
  • DGET-Customized
  • DGET
  • 8438400000


                       300L, 500L, 1000L Vodka/Brandy/Whiskey Copper High Concentration Alcohol Distilling Equipment Distillery

DEGONG distilling equipment can make wine, whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small-medium sized, centralized, automatic controlled, easy operating and beautiful outlook. Can be used small-medium sized workshops, hotels etc.

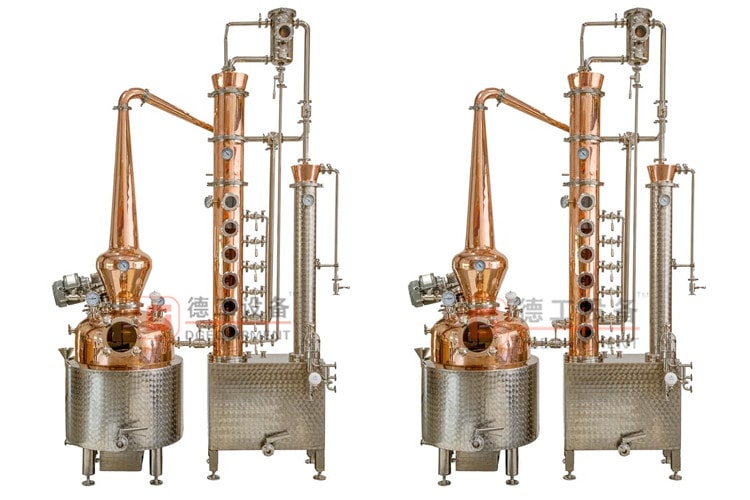

This single unit consists of a pot that is a combination of red copper ,glass and copper column,dephlegmator and condenser,electrical as its primary heat source (steam heating option is available as well).

We can also supply mash tun,fermenter,spirit storage tank, wine tanks.

the still equipment 详情-min


300L, 500L, 1000L Vodka/Brandy/Whiskey Copper High Concentration Alcohol Distilling Equipment Distillery

Working Capacity of still pot:

300L,500L,1000L

Heating Method:

by steam or electric

All connection type:

by tri-clamp and flange;it's easy to installation and clean equipment after a run.

Distillation column:

red copper column with 6 plate red copper bubble caps


What is the component of the distilling system

Still pot

Capacity 300L,500L,1000L explosion proof agitator motor,full glass manway

Helmet

Copper Whisky helmet

 Column

copper made with totally 16plates

condenser column

copper made,pipe and shell type

Support base

ss made,water tank and product tank are made as support base

Application

It can make sure you get function of distilling whisky,brandy,gin and vodka etc.


Distiller pot: Inner full copper pot, outer steam jacket with warm insulation layer, outer layer with fish scale polish, full glass manhole to see, top with agitator stirring.

Column plates: full CU122 copper bubble plates, side with pass valve to operate, CIP ball insert to each plate to clean, back with cip pipe and valve to operate.

Bottom collect tanks: water tank to collect condenser water to cycle used with CIP clean, alcohol tanks direct to collect from parrot, bottom connect one water pump.


a set of distiller-min

3


Bubble caps :It consist of bubble cap,down comers,bubble plate,red copper screw and bubble tee(we have stainless steel 304 and red copper option)

bubble caps副本

Control Panel:Material of control box is stainless steel 304 or plastic option;

Suitable Voltage:208/220/240V single phase 60Hz,Which can adjust the heating temperature by module.

Parrot spout with high sanitary glass cover, top is copper lid, direct to open, bottom with valve.

5副本


We also have commerical distillation system can custom making according to your specail requirement

We design and hand-build commercial alcohol distilling equipment for craft distilleries including batch distilling systems ,pot stills ,column stills,mash tuns and fermenters ;Our systems provide distillers the capacity to produce a full range of spirits ;We also provide delivery,set-up ,and training to ensure the success of distillers who choose a DEGONG Still ;As a commercial distillery equipment manufacturer ,we are happy to answer any questions you have about our equipment,or the process of starting your distillery ,Our goal is to help you make an informed decision when you buy distillery equipment ;After all;it will be the cornerstone of your distillery ;




Structure

Useage

50~5000L still pot+4~10 plate red copper/
stainless 304/glass distillation column+dephlegmator+condenser+
parrot outlet+control box

Economy for lower budget.Application to small sized plant.Alcohol content 80%±10%,
such as whiskey,brandy,rum and vodka.

still pot+goose neck+4plate distillation
column+dephlegmater+condenser+parrot
outlet

Suitable for low alcohol concentration to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum etc.

still pot+goose neck+gin basket+4plate
distillation column+dephlegmater+
condenser+parrot outlet

Suitable for low alcohol concentration and available for fruitful flavor with spices to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum +spices.

still pot+goose neck+gin basket+4plate
distillation column+16~20plates distillation
column+dephlegmater+condenser+parrot
outlet

Alcohol content 80%±15%,such as
whiskey,brandy,rum,gin and vodka.

still pot+goose neck+4plate distillation
column+16~20plates distillation column +dephlegmater+condenser+parrot
outlet

Suitable for both low and high alcohol
concentration to get high quality taste spirit.Alcohol content .

still pot+4plate distillation column+
dephlegmater+condenser+parrot
outlet

Economy for lower budget.Application to small
sized plant.Alcohol content 80%±10%,such as
whiskey,brandy,rum and vodka.

still pot+goose neck+condenser+parrot
outlet

General taste and low alcohol concentration
(usually,using together with column still.Crude distilled spirit≤65%.
