20HL 2000Lturnkey beer brewing system brewery equipment with steam heating method

To make the best beer,the brewhouse is the key. On the basis of absorbing European advanced and experienced beer machinery technology, Our Brew house can fulfill various brewing technologies, variable tastes or specific capacities.

Brewhouse system:

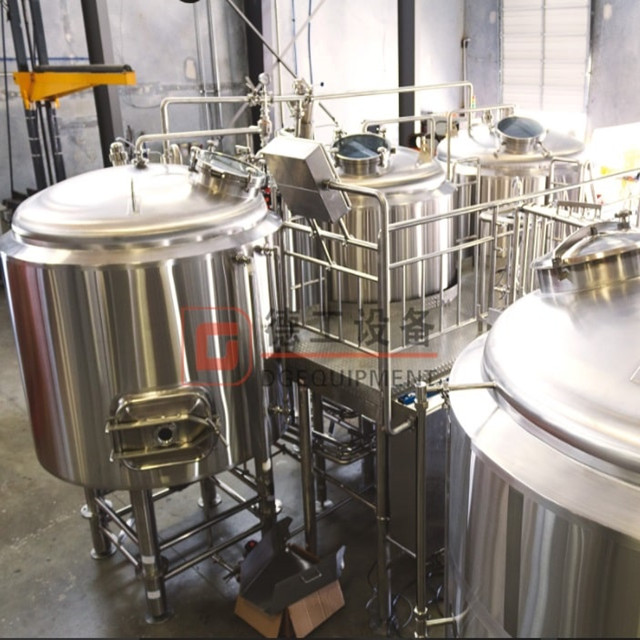

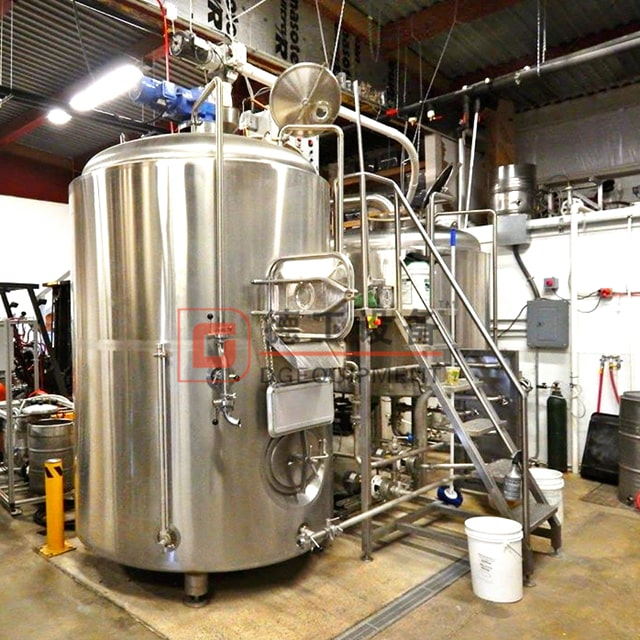

The 2000L commercial craft micro Brewhouse can be heated with Steam, direct fired and Electric. The system is composed of Mash Tun , Lauter Tun, Brew Kettle, Whirlpool Tank etc. The four tanks can be combined together to meet different requirement of customers.

All the tanks are made of stainless steel material, with 100% TIG welded joints and seams with sanitary interior polish. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.

Technical parameters:

 component of brewhouse equipment

Auxiliary system advantages:

1.Complete new auxiliary systems.

2. Auxiliary systems equipment selection of leading brand and imported brand equipment.

3. The auxiliary systems are long service life, high-performance, high-quality, low-loss.

4. Stainless steel fittings materials are all adopt SUS304/316, applicable beer equipment to ensure the safety of food grade.

5 electrical accessories reach CE export standards.

6. Various auxiliary systems role in the whole equipment system, supporting reliable (available free matching).

7. Supporting auxiliary system voltage and frequency match exactly.

8. Stable quality, superior performance, strict quality control.

There is a cooling jacket on tank cone section,columnar part has two or three cooling jackets.The tank not only can meet the relevant requirements of cooling, guarantee cooling rate of fermentation tank, but also help to precipitation and storage yeast.

Technical parameters:

• Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm;

• External-Jacket(SUS304) thickness: 1.5mm;

• Heat exchange area：2.19 ㎡

• Equipment with : cone 60°resist compression design，dripping

• 100% TIG welding with pure argon gas shield

• Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

• Exterior Finish: Oil brushed finish (2B, 8K Mirror finish optional)

•  Interior full polished to 0.2~0.4 μm without dead corner

• Insulated with high density Polyurethane foam 100mm

• Glycol Jacket: Dimpled plate on cone and side

Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components which all reach the food sanitary standard for customers. The quality, specification and function all meet the treaty of contract.

Package Type :Wrapping film , wooden case ,sheet iron case and so on are available according to customers' special demand.

Transport : By sea.

After-service:

- Installation, commissioning

- 3 beer recipes.

- Winemaker Training.

- 36months quality warranty

 Specifications

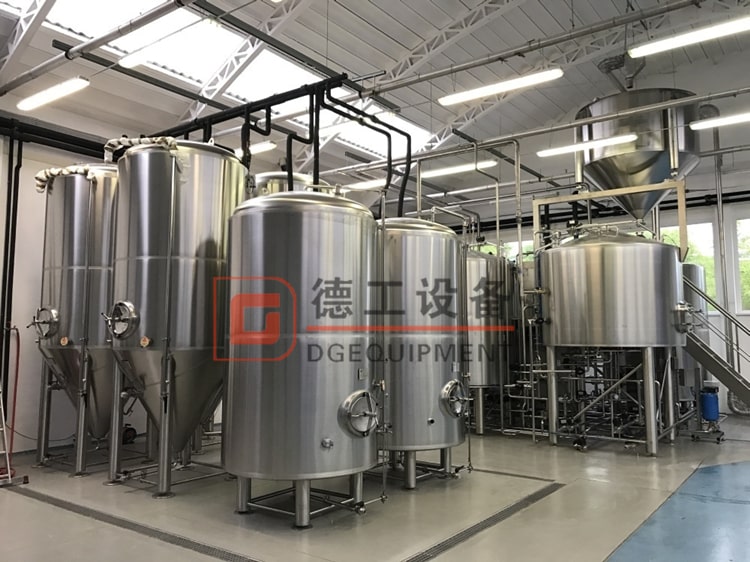

This beer equipment is used for small beer factory or hotel, restaurant.

This beer equipment is used for small beer manufacturer or hotel and restaurant.

It mainly contains the following equipments:

1. malt milling machine

2. saccharification system including the saccharification tank, boiling tank, lautering tank etc.

3. refrigeration system.

4. fermentation system including the fermentation tank, sterilization and lautering tank etc.

5. beer sales machine.

1.Packaging: Iron frame and wooden case or customized

2. Payment terms: T/T, L/C, Moneygram.

3. If the total amount paid one-off, it can be lower than the quatation.

4. Trade terms: FOB Qingdao.

5. Offer validity: the offer will be valid in 25 days.

6. Shipment method: by sea or suitable for your requirement.

7. Stock up period: within 40 days based on the capacity of equipment.

8. Conditions of payment: 30%, advance payment after signing the contract; 70%, after preparation of the equipment for shipment/ 3 days before  shipment.

Q1:What’s the payment you prefer?

A:Our standard payment terms are T/T with 30% deposits and balanced before shipment.

Q2:Do you have technical support after we purchased equipment?

A:We will arrange the professional technician to go to your factory and give the support to help you learn how to install and maintenance the machine or help you to fix the machine when it has problems.

Q3:Where is your factory?

A:Our factory is located in Dezhou City, Shandong province,China. We can pick you up at the airport whenever you want to visit the factory.

Q4:How long time for installation?

A:It’s according to your equipment order, it about 10days to 25 days.

Q5:What’s your warranty policy?

A:We warranty all our equipment for up to 12 months. Your brewhouse and tanks are inspected and tested before they leave factory, but we also cover any and  all issues you may have in the field.

Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
