2000L Premium Quality SUS304 Fermentation Vessel Conical Dimple Jacket Fermenter

Fermentation vessel brief introduce

Fermentation system is made of  fermentation tank and bright beer tank. Scientific design is combined with the devices of CIP, cold water and temperature control. Beer is always under a low temperature condition for fresh preservation.In order to ensure the reliable performance of the brewery, we will use high-quality stainless steel, accessories and various parts according to the exquisite craftsmanship, deep experience and technology of the brewing industry. Fermentation tank that it has many model, for example 50L, 100L, 200L, 500L, 600L,1200L and so on. If you have other size,our engineer will specially design the equipment for you, we have professional engineers team to service for you.

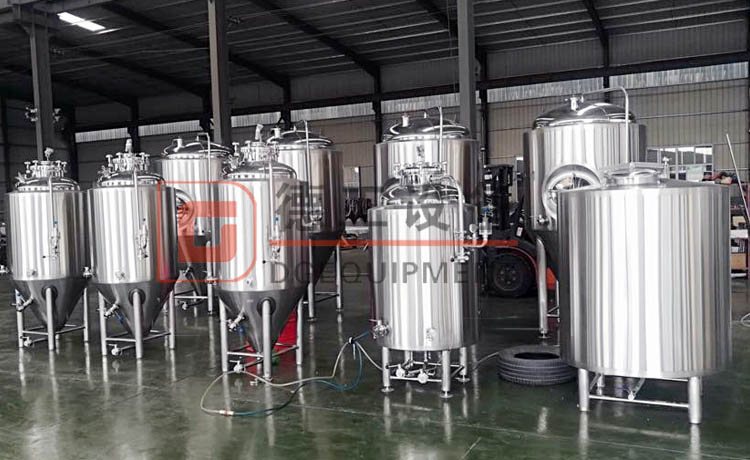

conical fermenter&bright beer tank

20BBL Fermentation tank(stainless steel304)

• Unitank, with carbonation device

• with 25% head space

• side manway

• Racking Arm and discharge port with butterfly valve and fittings;

• PLC control, dimple plate cooling jacket.

• Insulation thickness: 100mm; Inner tank thickness: 3.0mm; cladding thickness:2.0mm

• CIP arm and rotary spray ball

• Release and breath valves

• sample valve, mechanical pressure regulation valve

• Pressure gauge & Thermometer & Sample valve

• Dimple plate cooling jacket with glycol inlet and outlet

• Four legs with brace and adjustable bolt

• Interior of tank is mechanical polished, inner body polishing ratio 0.4μm. Out plate surface protection welding line Belt Sander Polished

• With valves and accessories matched

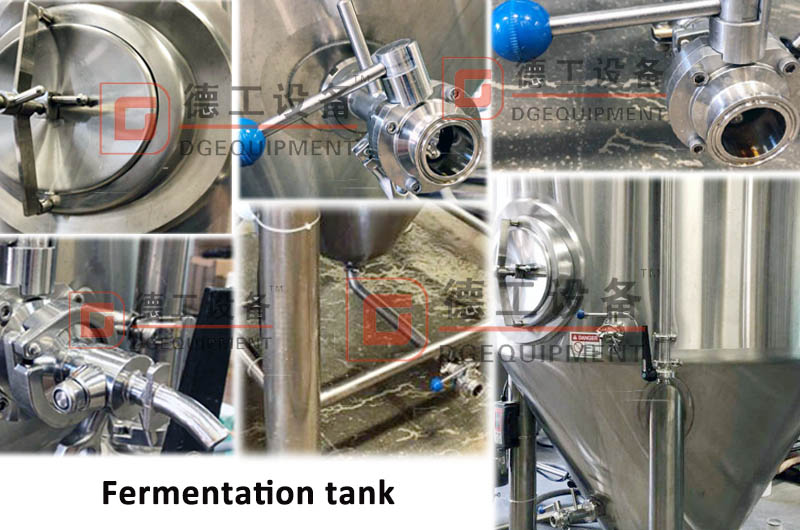

conical fermenter details

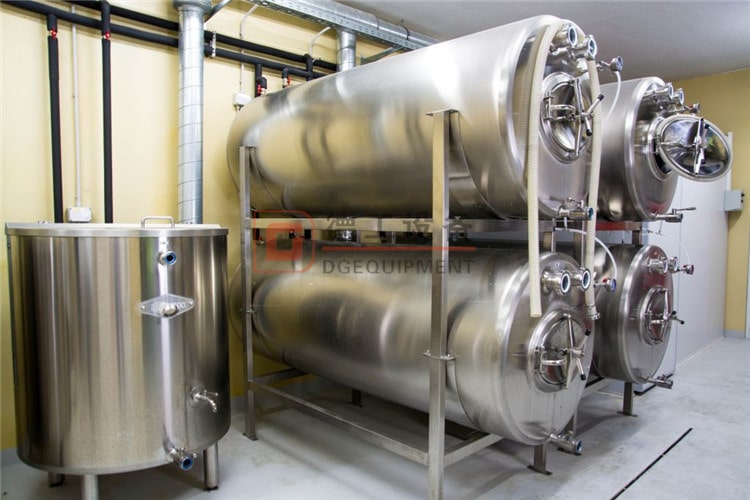

horizontal large tank

If you need fermentation tanks, please contact with me freely.
