1000L(3-vessel) Best Price Commercial Craft Beer Make Equipment Chinese Brewing Equipment for Sale

Main specifications of brewhouse and fermentation:

Brewhouse system:

(Heating method: steam heating, electric heating or direct fire heating )

Optional configuration:   (Can be customized)

• mash/brew kettle, lauter tun/whirlpool, hot water tank

• mash tun, lauter tun, brew kettle/whirlpool, hot water tank

• mash tun, lauter tun, brew kettle, whirlpool, hot water tank

Brewhouse system details

• Inner (stainless steel 304), TH=3.0mm

• surface (stainless steel 304), TH=2.0mm

• Insulation: polyurethane 100mm

• top manway with glass

• inside CIP washing ball

• Agitator,removable false bottom, sparging arm, Tangential inlet for whirlpool

• Auger, grain case, hydrator (optional)

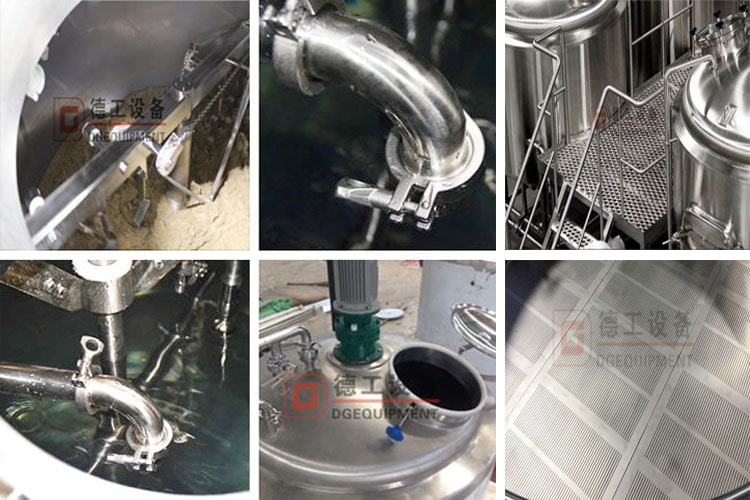

Brewhouse unit show

Fermentation system:

• Inner wall stainless steel 304, TH=3.0mm;

• surface wall stainless steel 304, TH=2.0mm

• Insulation: polyurethane 100mm

• Top/side mounted manway

• Glycol cooling jackets on both cylinder and cone

• Inside 360 degree rotating CIP washing ball, relief&vacuum valve on top, dry hops port on top, sample valve, rotating racking arm on cone, thermometer sensor

• carbonation stone (optional)

• level tube(optional)

• 100% TIG welding with pure argon gas shield

• Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner

• Testing pressure: 3 bar; working pressure: 1.5-2.0 bar

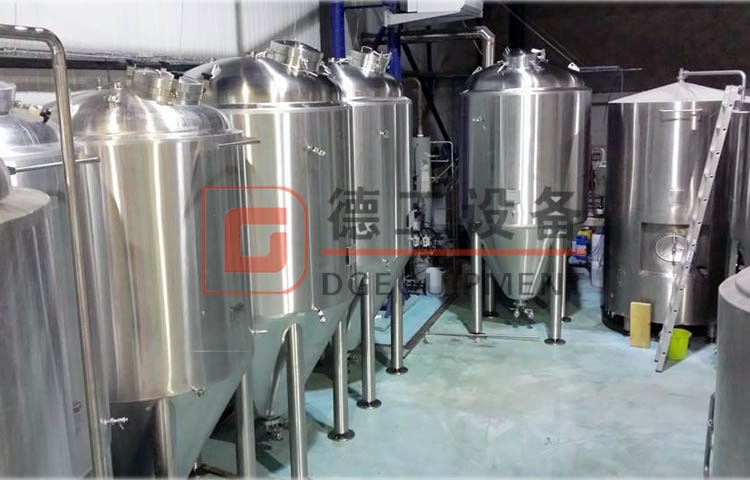

Fermentation system show

Optional Equipment:

• Beer bottling line: bottle filling&capping machine, labelling machine, beer bottle washing machine

• Kegs washer and filler

• Beer kegs(10L,20L,30L,50L )

• Beer filter machine

• Steam boiler

DEGONG advantage

1. For electric machine parts, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. Also UL, CSA standard.

2. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L...per patch for your choice.

3.It can be customized, such as the capacity(dimension can be customized), material(stainless steel 304/316 or copper), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.

4.Engineers are available for Overseas service.  Provide installation, commissioning/testing, maintaining and personal training, beer production technology.

motor & spent grains hatch

If you are interested in brewery equipment, get in touch with me freely.
