DEGT-15BBL
DEGT
8438400000
Processing: brewing beer
Condition:New
Place of Origin:Shandong, China (Mainland)
Brand Name: DEGONG
Processing Types:Alcohol
Voltage:380V/220V/230V
Certification:CE/ISO/PED
Warranty:3 years
Material:Stainless steel304
Shape:cylinder and cone
Control method:PLC
Fermentation quantity:It depends on actual production.
Insulation thickness:60mm-100mm
a complete of brewery equipment
Configuration:

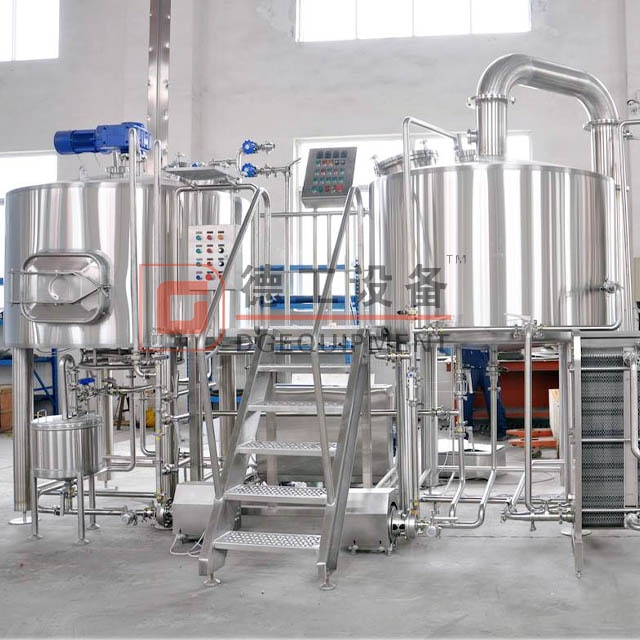

3-vessel(mash/lauter tun + boiling/whirlpool tun + hot water tank)
Heating method: steam heating, electric heating and direct fire heating
Mash/Lauter tun
Mash tun is a vessel used in the mashing process to convert the starches in crushed grains into sugars for fermentation. Mash tuns are insulated to maintain a constant temperature. The mash tun can be single-functional or can also have a false bottom and spigot so that the sparging process can be done in the same vessel. Steam jacket design will allow the systems to do both decoction mashing and infusion mashing.
The lauter tun typically has the same capacity as the cooking tun and can also be made out of stainless steel or copper cladding. It has a design with a false bottom in stainless steel v-wire and a raking gear that has the function of an agitator, a rake and a spent gain remover. This is a very unique and helpful tool because after filtering the spent grains will be removed from the lauter tun, saving a lot of time and energy of the brewmaster. Furthermore the lauter tun can be equipped with additional accessories such as back washing rings, sight glasses, filter plate.
Hot water tank(hot liquor tank)
Hot water tank, called hot liquor tank in a brewery, is the buffer tank that contains hot water that will be used to sparge the grain bed during lautering to extract a maximum of sugars out of the malt. This hot water tank is almost always insulated and can be heated through steam or an electric coil.
Boiling/Whirlpool tun
After lautering, the beer wort is boiled with hops (and other flavourings if used) in a large tank known as boiling tank. The boiling process is where chemical and technical reactions take place, including sterilization of the wort to remove unwanted bacteria, releasing of hop flavours, bitterness and aroma compounds, stopping of enzymatic processes, precipitation of proteins, and concentration of the wort.
At the end of the boil, the wort settles to clarify in a vessel called a "whirlpool tun" which has is a tangential inlet of wort. Thus, a vortex is formed when the wort is infused along the arc inside surface, so that the more solid particles in the wort are separated out. Whirlpool can happen in the kettle because there is no obstacle inside the kettle.
mash/lauter tun + boiling/whirlpool tun + hot water tank

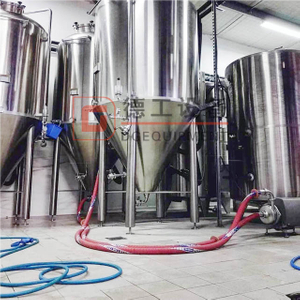

Mainly used for beer fermenting and maturing.
Fermentation system generally includes fermentation tank, bright beer tank and yeast adding tank.
Fermentation system is generally consists of 6-10pcs fermentation tanks. It can be selected freely by brewing type and sales situation of beer.
cone bottom;bottom cone 60 degree
Interior Shell:SUS304,thickness:3.0mm
Exterior Shell: SUS304,thickness:2.0mm
Insulation:Polyurethane, thickness:100mm
100%TIG welding with pure argon gas shield
Cooling jacket:both on cone and cylinder parts,
Cooling media: glycol water
Thermowell with high accuracy temperature sensor:PT100
Water treatment system
Kieselguhr filter
Packaging
If you have interest, get in touch with me any time.
