DGET-10BBL
Degong
8438400000
| Overview |
Mini Beer Brewing Brewery Production Equipment is available from 1BBL to 20BBL with an average 25% Head Space. The 10BBL beer brewery equipment can be instelled in restaurant, brewery,beer bar,hotal etc. Working with all relevant partners, DEGONG can manage the design, engineering, build and installation of a brewhouse that helps you achieve your unique brewing process and replicate it. In the end you will have a long-term, sustainable commercial beer brewing system that maximizes efficiency and space.
Quick view:
Processing:
| Beer brewing | Applicable Industries:
| Hotels, Food & Beverage Factory, Restaurant, Retail, Food Shop, Food & Beverage Shops |
After Warranty Service: | Video technical support, Online support, Field maintenance and repair service | Condition: | New |
Place of Origin:
| Shandong, China
| Brand Name:
| DEGONGET |
Processing Types: | Alcohol | Voltage: | 380V or customized |
Power(W): | 15-70Kw depends on capacity | Dimension(L*W*H): | Depends
|
Weight: | Various in different models | Certification: | CE ,ISO,TUV |
Warranty:
| 3 years
| After-sales Service Provided:
| Field installation, commissioning and training, Engineers available to service machinery overseas
|
Equipment Material: | SUS304 or Red Copper M2 for outer shell | Thickness of Tanks: | 3mm for inner container/2mm for outer shell |
Color Availabl: | Mirror SUS, Luxury red copper
| Heating:
| Electric/steam/direct fire heating
|
Heat Insulation: | Polyurethane with Thickness 80mm-100mm | Inner Polishing Precision: | 0.4 Micrometer |
Volume Design: | 10BBL | Controlling System: | PLC; HMI or Touch Panel |

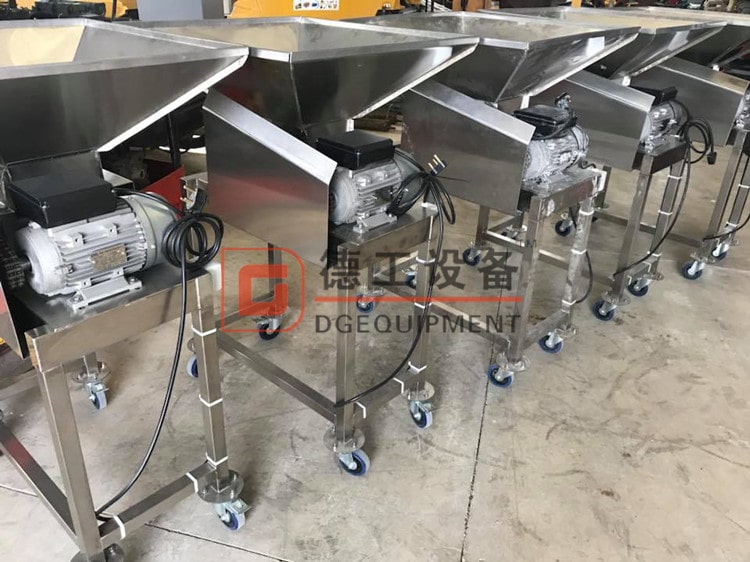

| Malt miller |
300-500kg/h
Doubel roller
Nosie: 45db or so

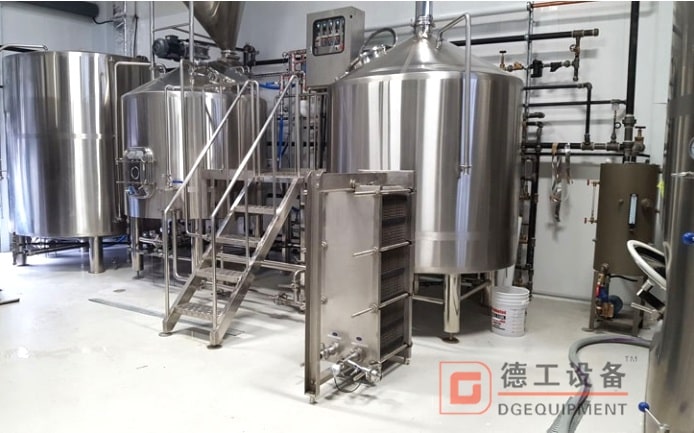

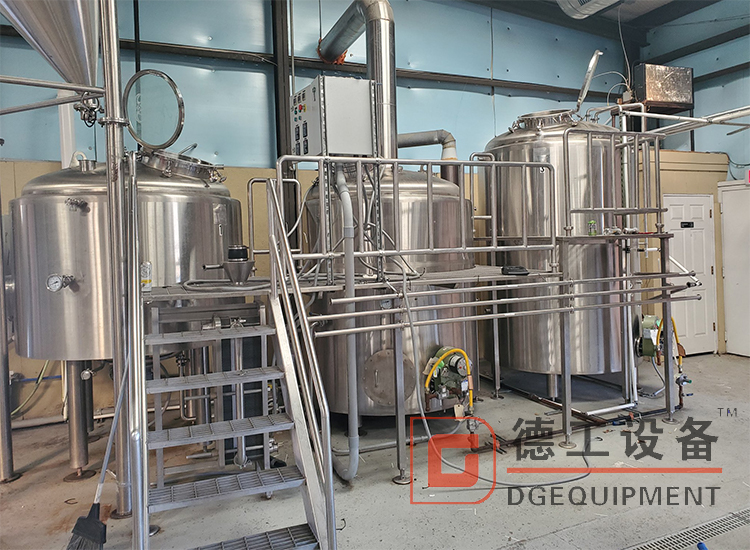

| Brewhouse system |
Mash/Lauter tun
Kettle/whirlpool tun
Steam heating method
Hot water tank
Tubular glass level indicator
Tangential wort inlet
Side mounted grain outdoor with grain chute
Laser cutting V-wire False Bottom
Heating exchanger: 10 square meters
Wort pump: ABB motor, VFD control
Wort aeration device
Yeast adding tank
Seamless food grade stainless steel 304 pipes
Working platform
Technical Parameters
Design Volume : | 10BBL | Voltage: | 380V/220V or customized |
Power(W): | 15-70Kw depends on capacity | Temperature way: | Double metal thermometer |
Jacket Pressure: | Design pressure 0.3 M Pa, working pressure <0.2 M Pa |
Certification:
| CE ,ISO,TUV
|
Inner surface treatment: | welds grind to Ra 0.6µm. | Outsourcing surface | Weld polishing processing |
Equipment Material: | SUS304 or Red Copper M2 for outer shell | Thickness of Tanks: | 3mm for inner container/2mm for outer shell |
Insulation | Polyurethane Insulation | Insulation thickness: | 100 mm |
Color Available: | Mirror SUS, Luxury red copper | Heating: | Electric/steam/direct fire heating |

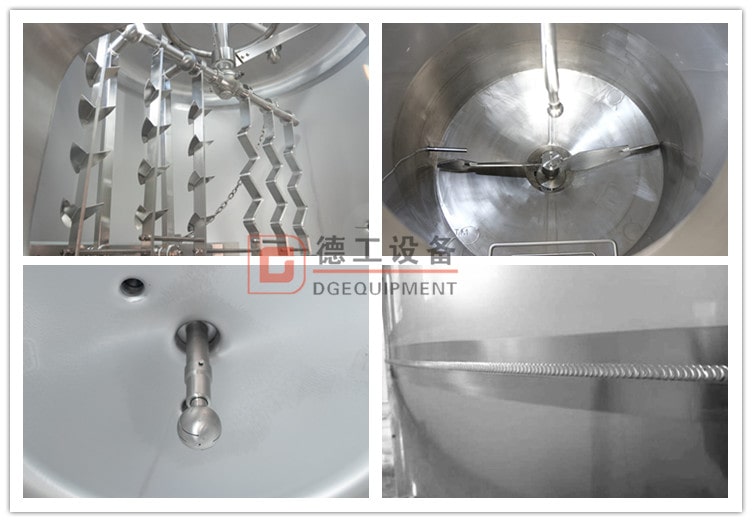

Grain raker&cleaning ball&polishing treatment

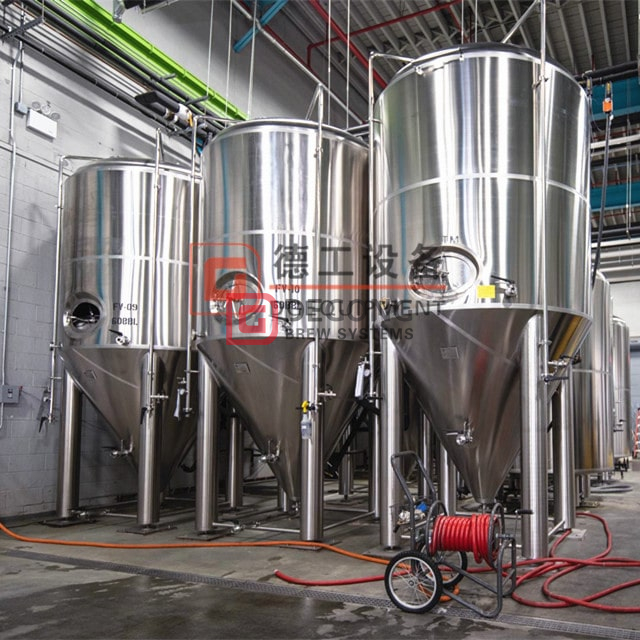

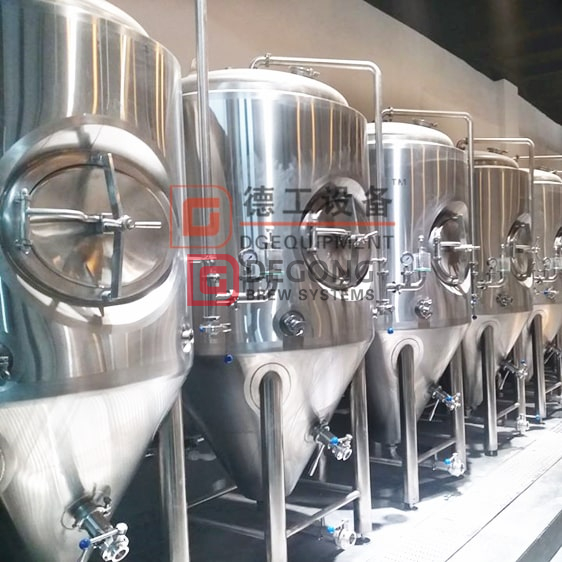

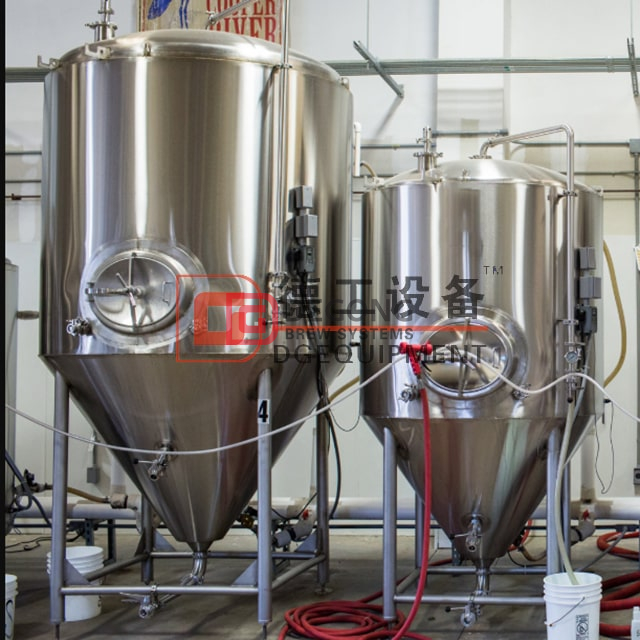

| Fermentation system |

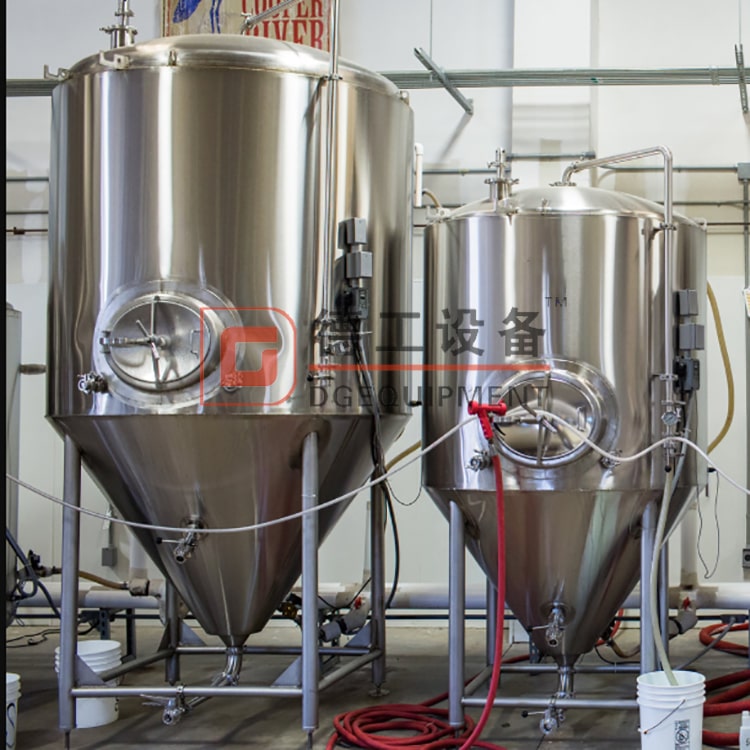

Beer fermenters

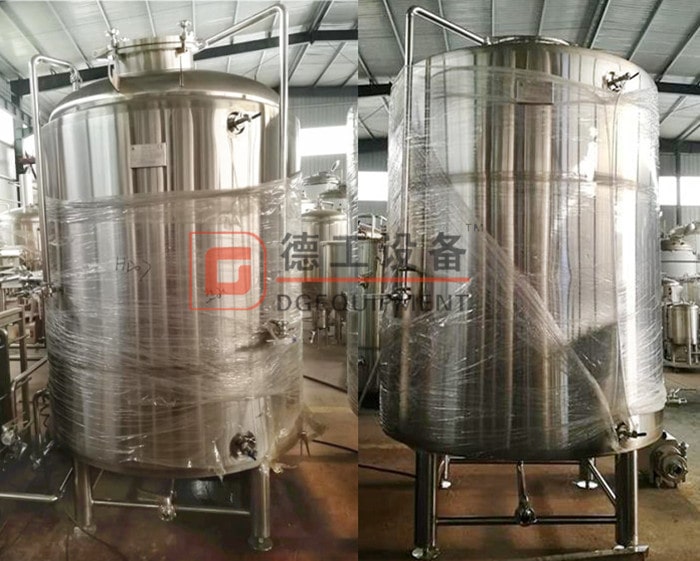

Bright beer tanks
Yeast adding tank

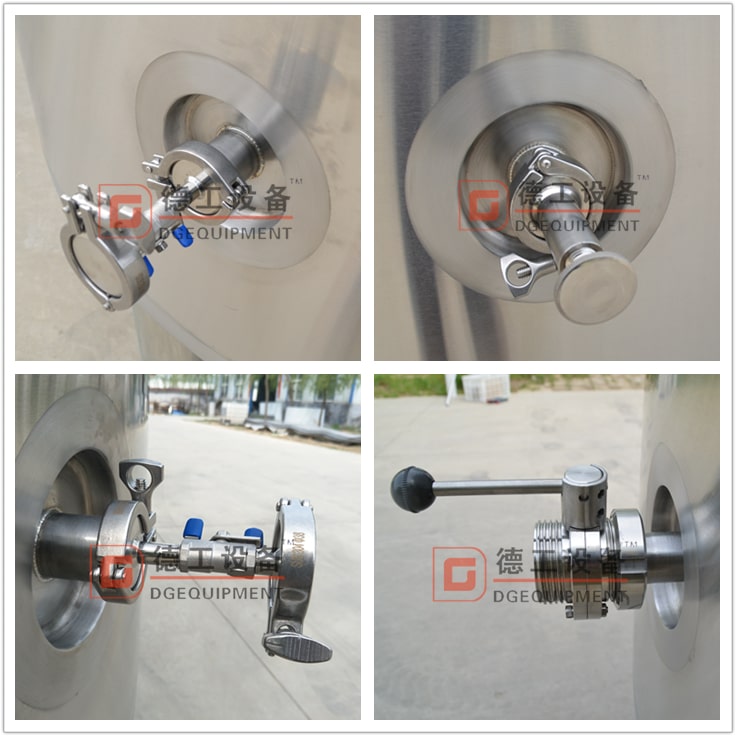

Accessories, such as sample valve, pressure gauge, safety valve and so on
Technical Parameter
Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
External-Jacket(SUS304) thickness: 1.5mm;
Oval head cone bottom, thickness: 3.0mm.
Surface: Finish2B – cold-rolled, annealed, pickled
Inner surface treatment: welds grind to Ra 0.6μm (attached 360 degree Omni cleaning ball).
Mirror surface finish inside.
100% TIG welding with pure argon gas shield
Insulation: Polyurethane-thickness 100 mm.
Equipment with : cone 60°resist compression design，dripping 10.Temperature drop.
Cleaning System: All-round cleaning
Vessel Pressure: test pressure 3 bar, working pressure 1.5 bar

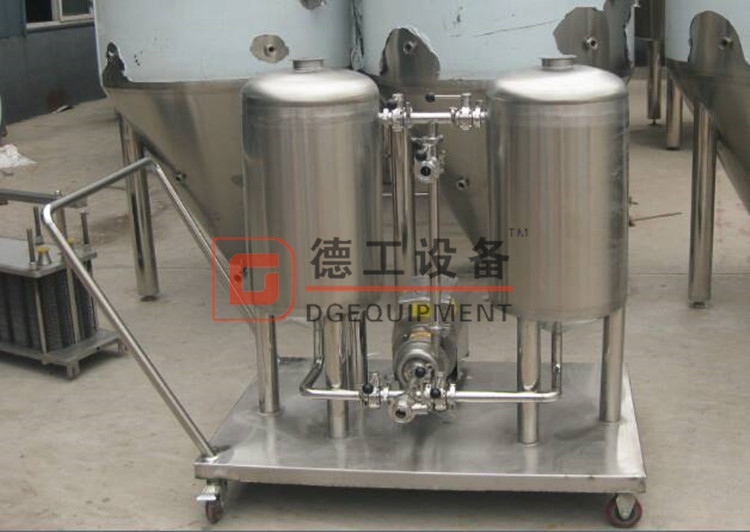

| CIP system |
CIP system is generally consisted of 2 tanks which are separately sanitary tank are alkali tank. For most micro brewery equipment, CIP system is with 4 wheels at the bottom of platform so it is removable. There is also a washing pump so that the mixture liquid or sole liquid can be transferred to clean tanks.
· 100L alkali tank with electric coils assembled inside 100L acid tank control box Trolley
| Cooling system |
Cooling system is always consisted of circulation pump, glycol water tank and chiller.
Features and parameters
Stainless steel(304)sanitary construction
Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
External-Jacket(SUS304) thickness: 1.5mm
100% TIG welded and sanitary polished
Design pressure 0.3 MPa, working pressure <0.2 MPa.
Interior Finish: Sanitary 2B finish, Pickled and Passivity;
4 heavy duty stainless steel legs with adjustable height and leveling footpads
Insulation: Polyurethane-thickness 100 mm.
CIP arm and spray ball 360o coverage. Easy clean slide over pipe connection with keeper pin.
Pressure gauge
Thermometer gauge
Lifting lugs
Side man way door
cold water tank

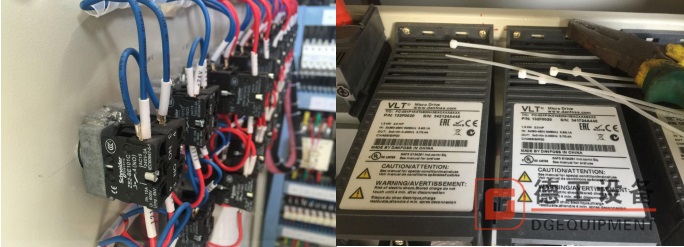

| Control system |
Control system is the soul of a whole set of brewery equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.
Technical parameters:
Semi automatic control system or PLC fully automatic control system if requested
Siemens/Schneider/Omron components
PC or mobile remote control if requested
Individual control system for brewhouse system and fermentation system

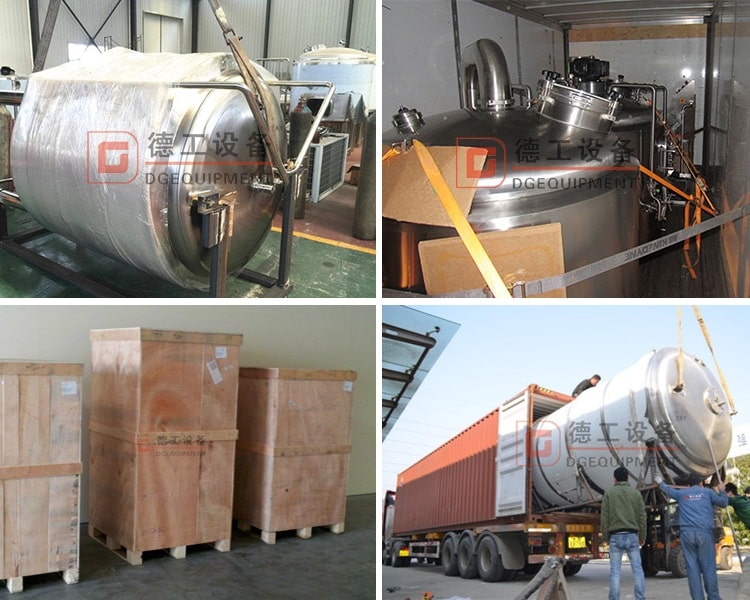

| Packing and delivery |
Standard packing:
Cord ,film membrane
Firm membrane, wood box for free fumigation
Transport: by sea
Delivery :
- We put your order into our tight production schedule to ensure the punctual delivery time.
- Production or inspection report before your order packed.
- Shipping notice/ insurance to you as soon as your order is shipped.
| Our certificate |
All of the productions we provided are certified by ISO,CE and TUV. The quality, specification and function all meet the treaty of contract.
| Contact us |
Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
