15HL Customizable Stainless Steel Dimple Jacket Conical Fermenter for Sale

The fermenter has a dimple jacket in both the cone and the barrel.This ensures that efficiencies are maximized and time needed to control the temperature of your product is minimized.

Yield:
Insulation:
Jacket:
inner shell:
Manhole:
Quantity:
  • DGET-15HL
  • DGET
  • 8438400000



At DGET we want to be sure that each tank we fabricate is specific to the production and display needs of each customer we serve. Our beer fermenters are no exception. Our polished, ground smooth, and passivated welds ensure quality sanitation characteristics.

The fermenter has a dimple jacket in both the cone and the barrel.This ensures that efficiencies are maximized and time needed to control the temperature of your product is minimized. Available in several finishes, our tanks not only serve to raise the bar on production standards, they can also be customized to visually represent the quality and attention to detail put into the product our clients produce.

15HL Customizable Stainless Steel Dimple Jacket Conical Fermenter for Sale

201906200855432800221

Fermenter-2

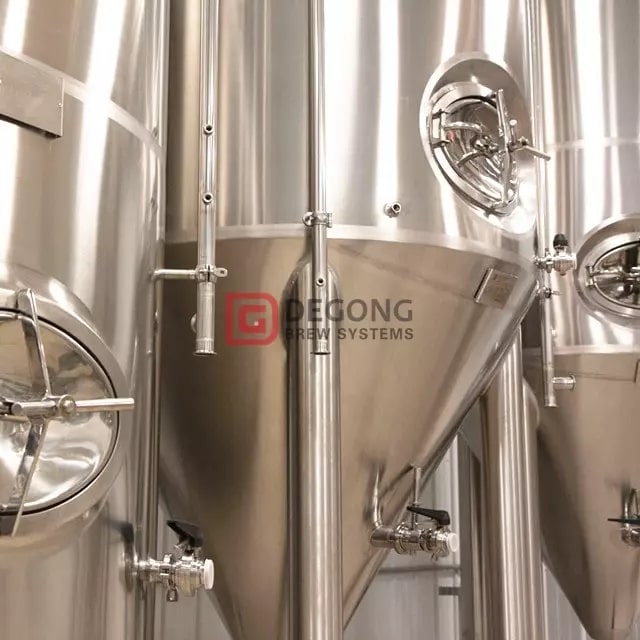

Features of fermentation tank:

- All tanks are made of food grade stainless steel 304.

- Certified stainless steel material

- Adopting advanced world famous brand components in electric parts and operation parts.

- Thickness: inner 3.0mm; out 2.0mm; jacket: 1.5mm

- Insulation: Polyurethane   thickness: 100mm

- Insulated with high efficiency polyurethane foam

- Working pressure: 1.5-2.0 bar      Design pressure: 3.0 bar

- Cone 60° resist compression design

- Fermentation pressure controlled by pressure gauge automatically.

- 100% TIG welding with pure argon gas shield.

- Quality TIG welding: for piping, quality TIG welding with sanitary interior shapes

- Glycol jacket: dimpled plate on cone and side

- Heat exchange area: 2.69 square meter

- Interior surface: mirror polishing

- Exterior surface: oil bushed finish

- Interior full polished to Ra0.6µm without dead corner

- TC connected CIP arm with 360° coverage spraying ball

- Sanitary side mounted manhole with pressured door

- Sanitary construction seams with sanitary interior polish

- Main accessories: mechanical type safety valve, sampling valve, pressure gauge, temperature probe, racking arm, leveling tube, solenoid valve

- Hop port on top, PVRV and pressure relief valve, qualified butterfly valves, height adjusting foot pads

- The fermenters and bright beer tank with PU as cooling jacket to keep cool.

- Name-brand, high-quality valves and fittings included with every tank


组合细节图片1_副本


Options:

Thermometer with well

Probe well

Sight gauge

Thermo-control bracket

Custom diameters/height

Several finishes available, including Brushed, Satin, Scotch Brite and 4A




Degong Equipment Technology Co., Ltd. is a professional manufacture of beer brewing equipment from 50L/brew to 20000L/brew (2bbl-150bbl). We supply all-round service including layout design, customized equipment design, transportation, installation and training for brewpub, bars, restaurant, microbrewery, regional brewery etc.
