Commercial 10HL beer brewing equipment mash/lauter tun &brew kettle/whirlpool tun for craft beer
Home » Brewery Equipment » Beer brewery equipment » Commercial 10HL beer brewing equipment mash/lauter tun &brew kettle/whirlpool tun for craft beer

Product Detail

Share to:

Commercial 10HL beer brewing equipment mash/lauter tun &brew kettle/whirlpool tun for craft beer

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Thickness of material (mm):
Insulation:
Material:
Heating method:
Quantity:
  • DGET-10HL
  • DGET
  • 8438400000

The heart of any brewery is an efficient and consistent brewhouse.Utilizing state-of-the-art, PLC’s and automation allows DGET to deliver semi-automatic or fully-automated brewhouses that deliver repeatable, efficient and high-yield brews at the right price.


Brewhouse system features:

We manufactures brewhouses ranging from 1bbl up to 100bbl. Brewhouses are available in 2-vessel systems (Mash Tun/Lauter Tun and Kettle/Whirlpool), 3-vessel systems (Mash Tun, Lauter Tun, Kettle/Whirlpool), and 4-vessel systems (Mash Tun, Lauter Tun, Kettle, Whirlpool). All brewhouses are built of high-grade, 304 stainless steel.


003-min-min

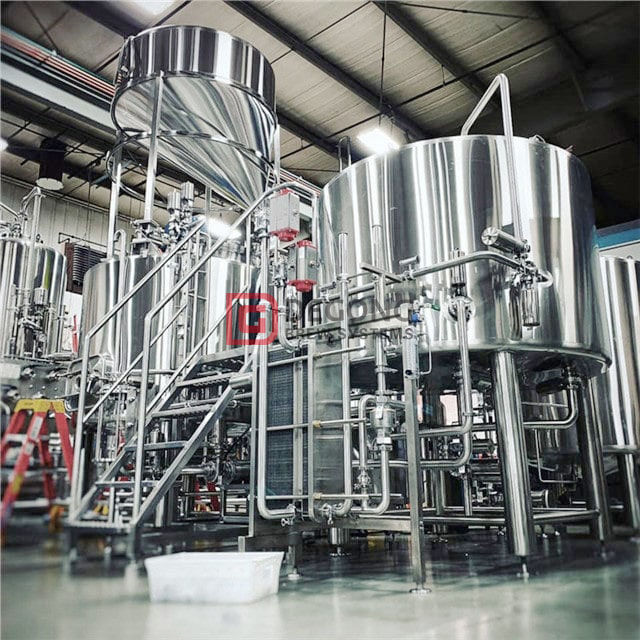

2 vessels Brewhouse equipment with hopper

Mash /Lauter Tun & Brew Kettle/Whirlpool Tun


Brewhouse Unit

Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

Hot water tank and cold water tank for optional

Stainless steel are popular because of easy maintenance and clean, copper cladding for optional

Two stages or single stage heat exchanger for wort cooling

Completely stainless steel integrated work platform

Sanitary and efficiency wort pump

All pipings and fittings



Heating method:

  • Steam heating(Optional):electric boiler;gas boiler;diesel boiler

  • Burner(Optional)

  • Electric Heating(Optional)


sight glass and manhole-min-min

Large sight glass & Top manhole

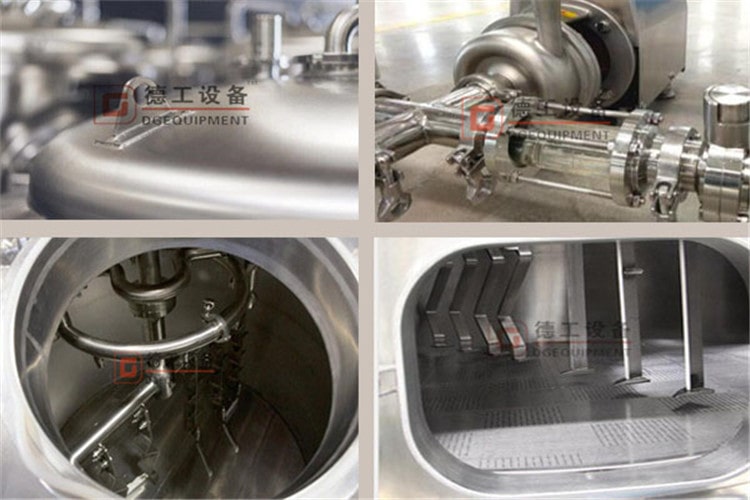

糖化细节-min

Dished head&wort pump& & raker& false bottom filter

Brewhouse details:

Material: SUS 304

Volume:500L-20000L

Design pressure: 0.3Mpa;Working pressure:0.12Mpa-0.15Mpa

Polyurethane insulation, side and bottom insulated

Dimple plate cooling jacket

Cooling stage: cylinder and cone

Interior surface: Polished, and welding joint acid cleaned

Domed top,Stainless steel leg, with adjustable leg bolt


Fermentation system features:


TANK3-min

Fermenting vessel in brewery

Fermenting Vessel details:

  • 304 stainless steel, TIG weld construction

  • Reinforced stainless steel legs, leveling foot pads

  • Shadowless side manway

  • Multi-zone glycol dimpled cooling jackets

  • Rotary spray-ball CIP 360° coverage

  • Sanitary thermowell

  • All butterfly valves included

  • Side fittings: Glycol inlet/outlet, thermometer well, sample port, manway (side or top)

  • Bottom fittings: Drain valve, beer outlet, carbonation unit (optional),Sample valve,pressure gauge, pressure regulating valve

  • Dry hopping port on top(optional)

发酵罐组件-min

Fermentation tank components

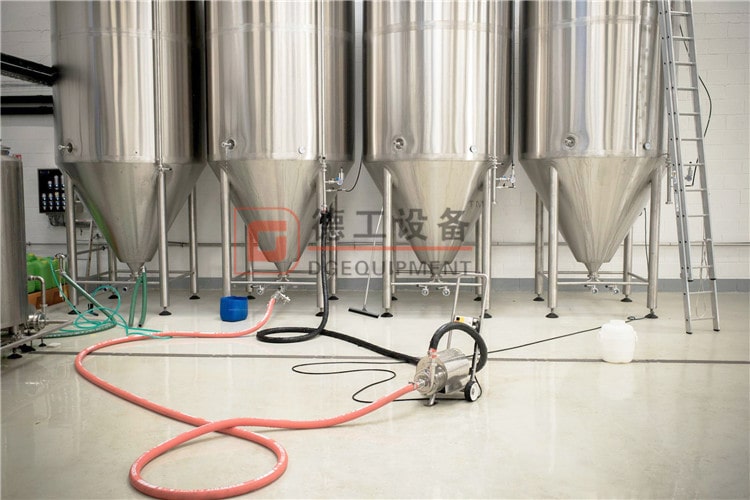

8-min

A set of fermenters


DGET introduction:

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.


103

Brewery equipment can be used in restaurants, bars and hotels etc.

After-sales service:

  • After delivering the equipments to our customers, DEGONG will arrange special worker to do the track service, because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service.

  • Within the warranty period, any malfunctions caused by the quality issues, DEGONG will be responsible to it.

  • For the malfunctions beyond the warranty period, DEGONG will also be responsible to it, but the seller should take in charge of the expenses.

证书1

Our certification


Package & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

H2-min

Contact information:

If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
