DGET-1000L
DEGONGET
8438400000

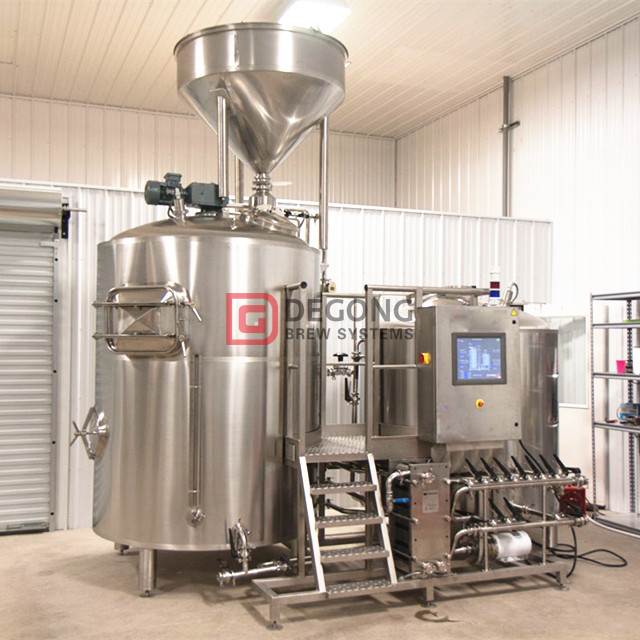

| Description of 1000L 2-vessel beer brewhouse |
Our 1000L Brewhouses allow you to choose from various heating options (electric, steam, and gas fired), we suggset you to use steam heating method thought, and select controls consistent with your style of brewing (including basic or advanced touch-screen panels, HERMS or RIMS, variable-speed pumps, automated wort grant controls, Flow Meters, SEW-Eurodrive or Nord Reduction Gear, Sink on plat form and many more option available!
Our brewhouses come in multi-vessel configurations brew kettle, hot liquor tank and mash tun included. We offer larger free standing 3.5 bbl to 30bbl brewhouses and we also offer skid mount systems in sizes ranging from 3.5bbl to 15 bbls. All Brew House come with ABB motor Pumps, Dual stage heat exchanger, Plow system, (SEW motor), Lauter rake, Working platform, Control box (button), Glass Wort tank, and all necessary hardware.
Technical parameters of 1000L 2-vessel brewhouse: |
Mash/Lauter tank:
- Stainless steel grist dydrator w/hot & cold dydration inlet
- Upper and lower jackets (hot water or steam)
- Heavy duty false bottom with pilar support system
- CIP spray nozzle under false bottom
- Multiple wort drain locations
- Fully insulated vessel
- Stainless steel material
- SS CIP high-low rotary spray ball with 360 degree of coverage
- Interior light
- Sparge right assembly

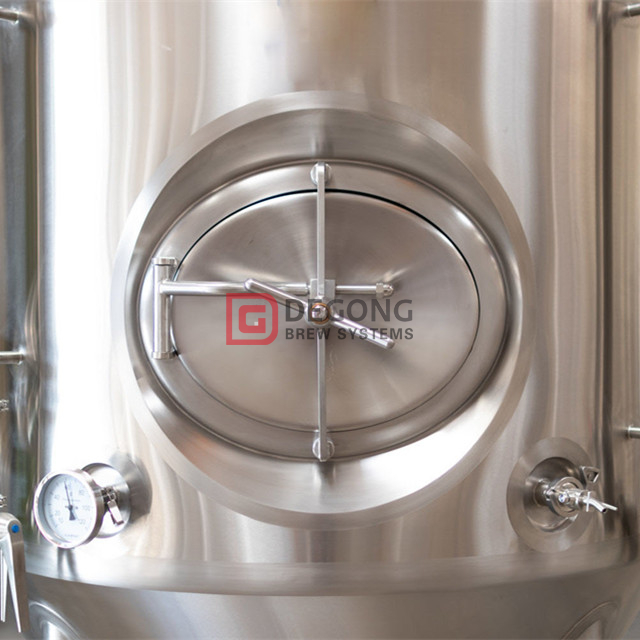

- Top manway (Tempered glass)
- Side manway for automatic spent grain out process
- Automatic variable speed rake sysem and spent grain plow
Kettle/Whirlpool tank:
- Upper and lower steam jackets
- Tangential whirlpool inlet
- Fully insulated vessel
- Stainless steel material
- SS CIP High-Low rotary spray ball with 360 degree of coverage
- Top manway (Tempered glass)
- Interior light
Wort pump/ Whirlpool pump:
- Stainless steel wash down pump
-VFD speed control

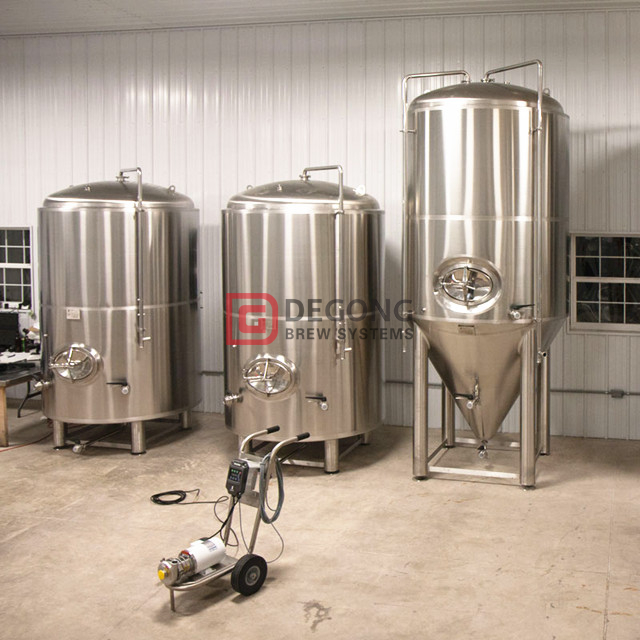

| Description of 1000L beer fermentation tank |
Beer fermentation tank:
- Stainless steel 304 sanitary construction
- 100% TIG welded and sanitary polished
- 4 heavy duty stainless steel legs with adjustable hight and leveling pats
- Interior shell: stainless steel 304, thickness 3mm
- Tri-clamp sanitary fitting
- Vacuum pressure relief valve
- Pressure gauge
- Thermometer gauge
- Sample valve
- Lifting lugs
- Ladder hooks, also designed to hold brewer hose when not in use
- Side manway
- CIP arm and rotary spray ball of 360 coverage
- Dual cooling jackets with glycol inlet and outlet
- Rotating racking port and discharging port with valves and fittings
- Dry hopping port
- RTD sensor
| Contact us |
