Brewhouse
Brewhouses are comprised of several key pieces of brewing equipment. The mash tun, lauter tun, brew kettle,and whirlpool, in the skilled hand of the brew master, convert grain that has been milled through a specialty grain mill, into sweet liquid called “wort”. Wort is subsequently fermented and finished in specialized beer tanks called fermenters and brite tanks.

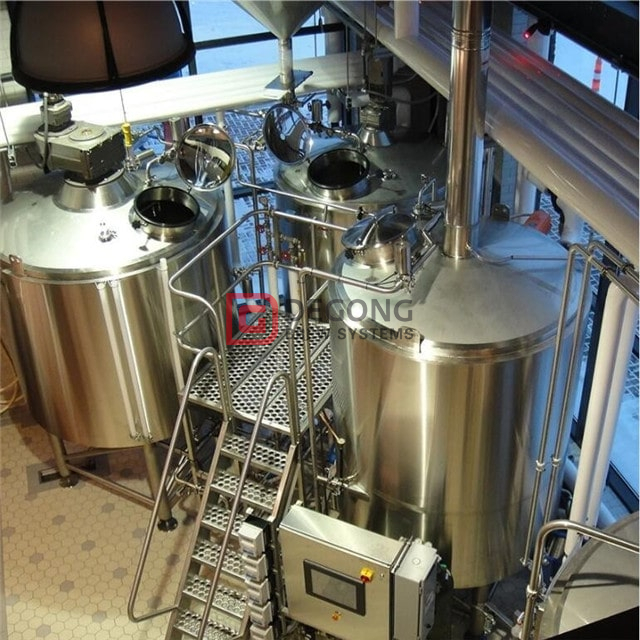

7 BBL Steam Fired Brewhouse system
The brewhouse is both the heart and engine of the brewery where several critical processes in the creation of craft beer is performed. Brewhouses, along with other key pieces of brewing equipment, vary in capacity, features, and complexity, but all brewhouses share the need to wet grain, separate the wort from the grain, and boil the wort with a heating source. The three most common brewhouse heating methods are: steam, direct fire, electric.
| Brewhouse system features: |
Standard configuration:
Mash/Lauter tun, Kettle/Whirlpool,
10 BBL Hot Liquor Tank with Heat ex-changer .
All piping(except piping for HLT to mash-tun)
Work platform with stairs and railing,
2 sanitary pumps,
Brewhouse plumbing,
Valves, sight-glass,rakes,
All vessels on steam systems jacketed, Motor, Control Panel ,
Thermocouples, controllers,Transformers, Grist Hydrator.
Recommended steam generator.
All pumps and rakes variable speed for superior fluid control.
2 Vessel brewhouse system
1.Material:Inner(SUS304),thickness:3.0mm; Out(SUS304),thinckness:2.0mm;
2. External-Jacket(SUS 304 thickness: 1.5mm;
3. Cylinder (sharp type, SUS304), thickness: 3.0mm.
4. Inner surface treatment: welds grinded to Ra 0.4µm without dead corner.
5. 100% TIG welding with pure argon gas shield
6. Insulation: Polyurethane-thickness 80 mm.
7. Dished top and conical bottom
8. Glass top manhole
9. Temperature way：Double metal thermometer
10. Outsourcing surface: Weld polishing processing
11. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
12. Top mounted 360° coverage CIP spraying ball and port
13. Stainless steel laser cutting False Bottom/Filter
14. Thermo well for high accuracy temperature sensor
| Detailed of brewing equipment: |
Feeding malt and mashing wort
False bottom,transfer pump,stainless steel work platform and sight glasses
Control pannel
| DGET brief introduction |
DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation and so on.
Loading fermentation tank
Exhibition
Guarantees:
a. All the materials touching with beer directly are all top quality food grade stainless steel.
b. We use the first class valves and manhole for our equipments.
c. All the materials we use is nonmagnetic.
d. The thickness of the material exact fit in with what shown in our quotation sheet.
e. Most importantly, our staff is always available for your needs and questions.
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components. Should you have any questions,do not hesitate to contact me,thanks!
