DGET-15BBL
DGET
8438400000
Beer brewing equipment can be designed according to the requirements of different brewers.The whole set commercial used beer brewing equipment includes miller, mash system, fermentation system, cooling system, control system, cleaning system, filtration system, sterilizer, filling line (bottle, barrel, can), packaging.
The two most important steps in beer production are beer mashing and fermentation.So let's focus on the equipment needed for these two parts.

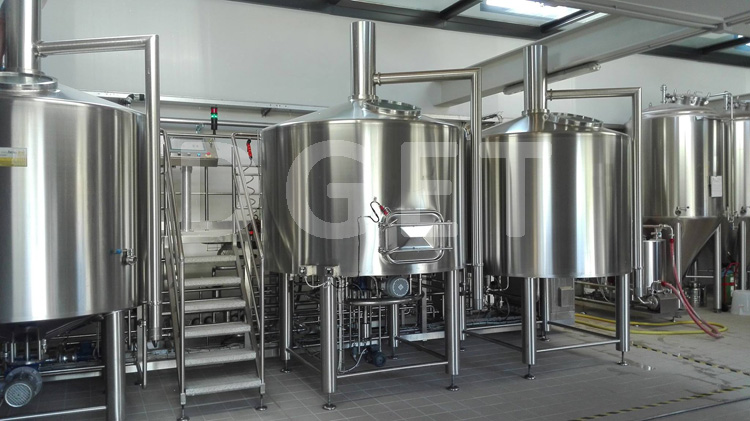

| Mashing system/beer brewhouse |
The beer mashing system usually consists of these parts:
1. The malt mash boiling tank – heated vessel for the mixing of the squeezed malt in water and boiling of malt mash
2. The wort boiling tank – the heated vessel for the boiling of wort with hops. This function may be integrated into the malt mash boiling tank
3. The Lautering tank – the tank with special sieve for the filtration of malt mash (separation of liquid wort from solid parts of malt)
4. The whirlpool tank – tank equipped with a tangential inlet for centrifugal separation solid rests of hops from wort – this vessel may be situated also as an external device
5. Other tanks – Wort storage tank, Second malt mash boiling tank etc. – only special brewhouse models
Other necessory equipment
– Equipment for huminiding and dosing of squeezed malt into the brewhouse
– Basic frame with work platform (excluding the smallest brewing machines)
– Pipe system with pumps
– ABB VFD Motors with agitators for mixing and cutting of malt mash
– Wort cooler (may be used as external part)
– Wort aeration candle (may be used as external part)
– Electric system for measuring working parameters and PLC automatic control system of the wort brewing process.
– Waste steam outgoing system
A hot steam generator, a hot water tank and a tank for treated cold water are usually an external accessories of the brewing machine.
For some of the simpler types of wort machines, some containers are omitted or functions of more vessels are integrated to one combi-tank.

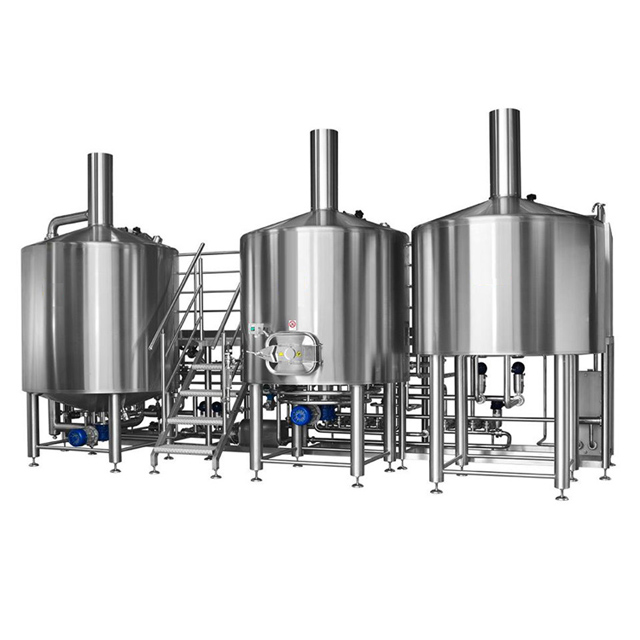

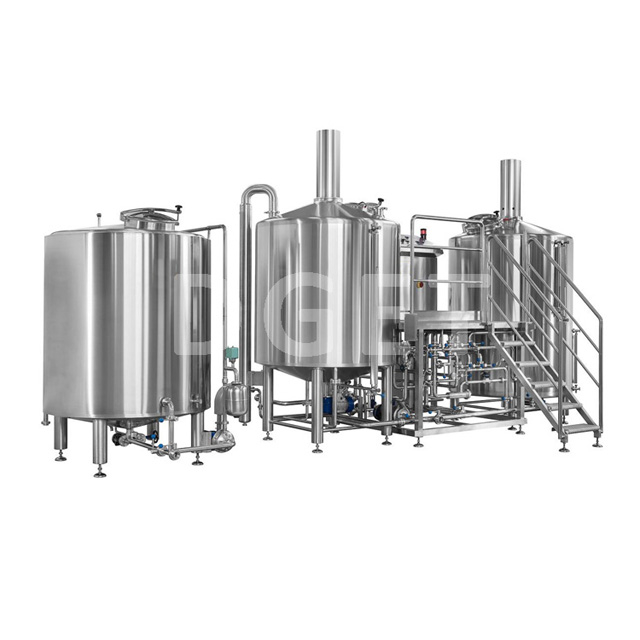

15BBL Stainless steel beer mashing system
Glass manhole
Raker automatic spent grain removable system

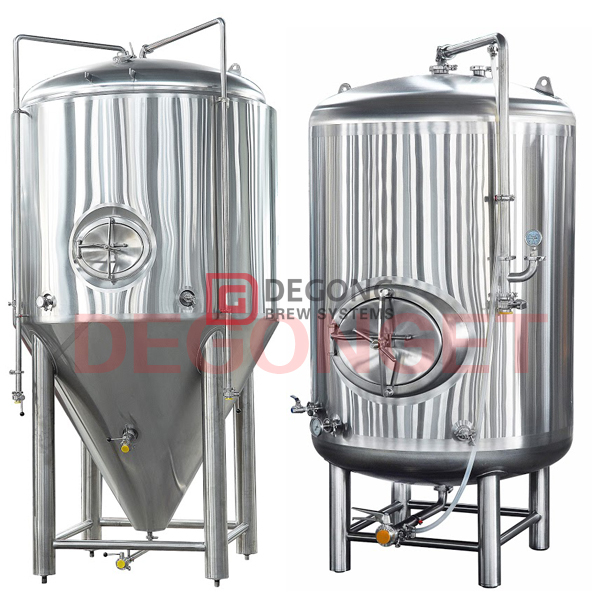

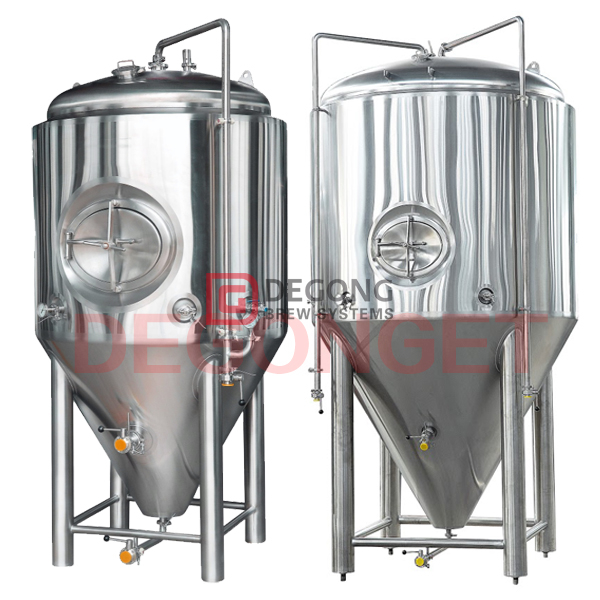

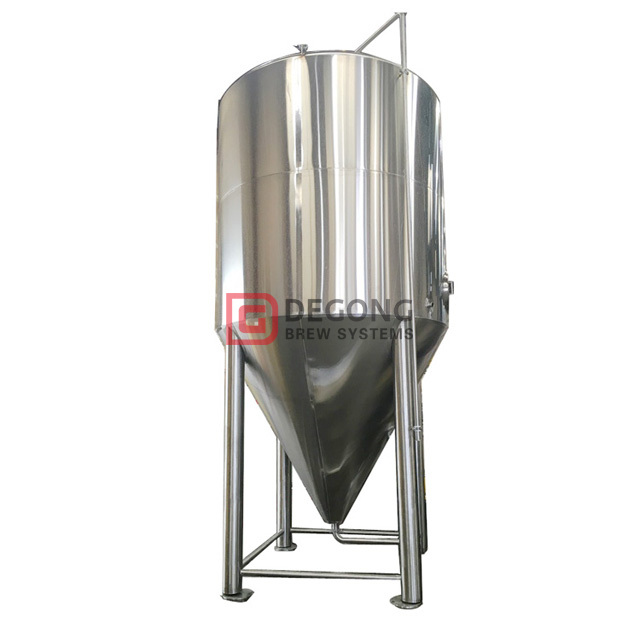

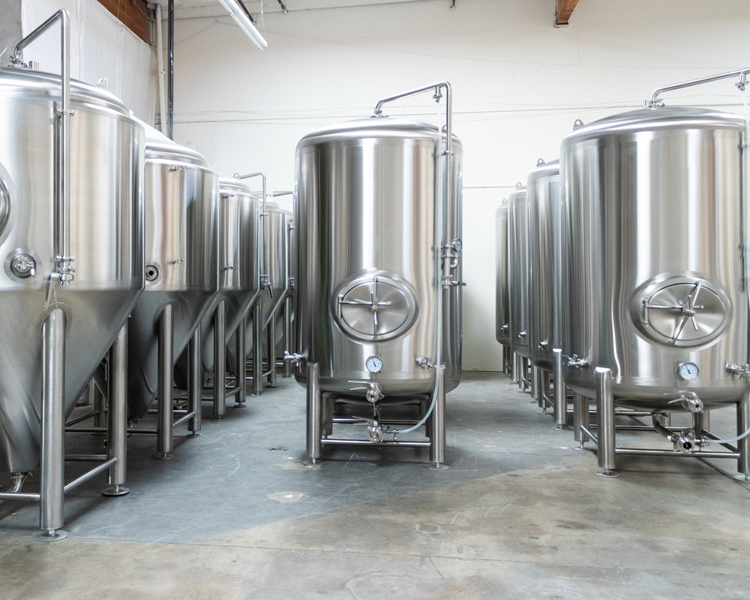

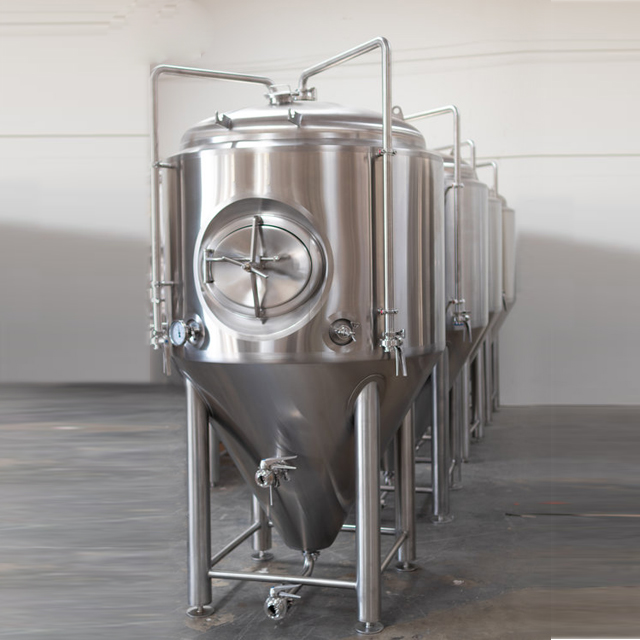

| Fermentation tank |
Main Features:
All material are Food grade stainless steel 304 or 316
Inner Shell: 3mm, 304 Stainless Steel
Outer Shell: 2mm, 304 Stainless Steel
Inner shell design pressure 3bar, testing pressure 1.5bar, designed to suit all types of craft breweries.
Inner cooling jacket design pressure 2 bar.
25% headspace for fermenting process.
Minimum 3 inch Thermal Polyurethane Insulation with both cone and shell coolant jackets.
Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.
Tank inner side is polished within 0.6µm sanitary finish.
Tank outside is 2B stainless steel plate(optional brushed stainless, #4 finish).
Shell and bottom cone cooling jacket for better temperature control.
Main Components:
Manhole on the top head (standard).
Level Indicator (standard) for inner tank.
Vacuum/Pressure combined valve. Tank top fittings, pressure gauge.
Pressure keeping valve with sight glass for controlling and monitoring fermenting process.
Built in rotary spray ball within the inner tank for cleaning.
Sanitary sampling valve, with the shortest connection on the tank, easily CIP cleanable.
Manual ball valve for easy glycol changing over thus temperature control.
Other customization possible upon request.

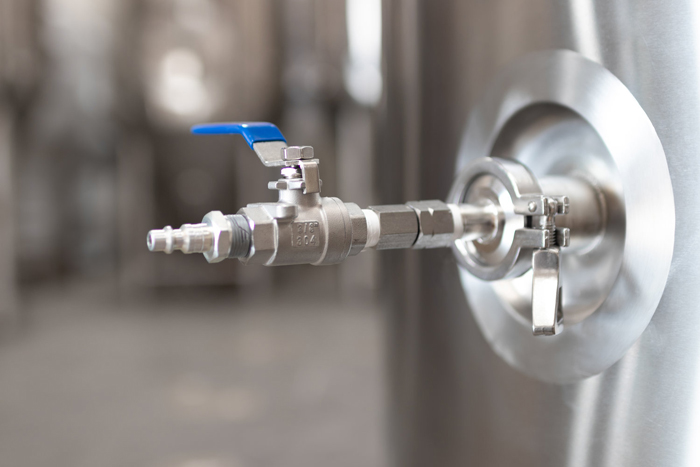

Carbonation stone

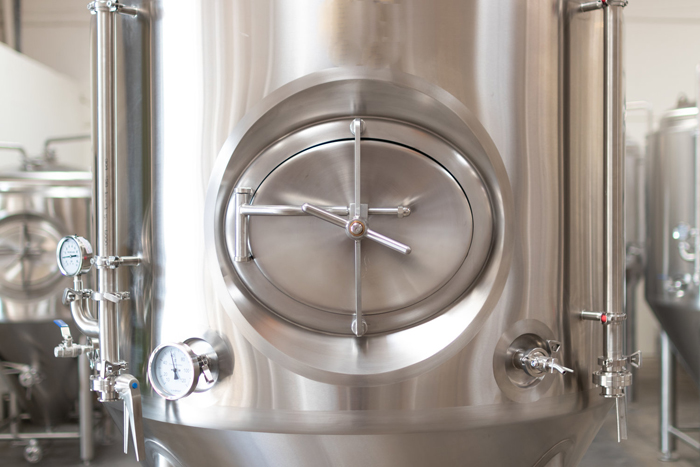

Side manhole

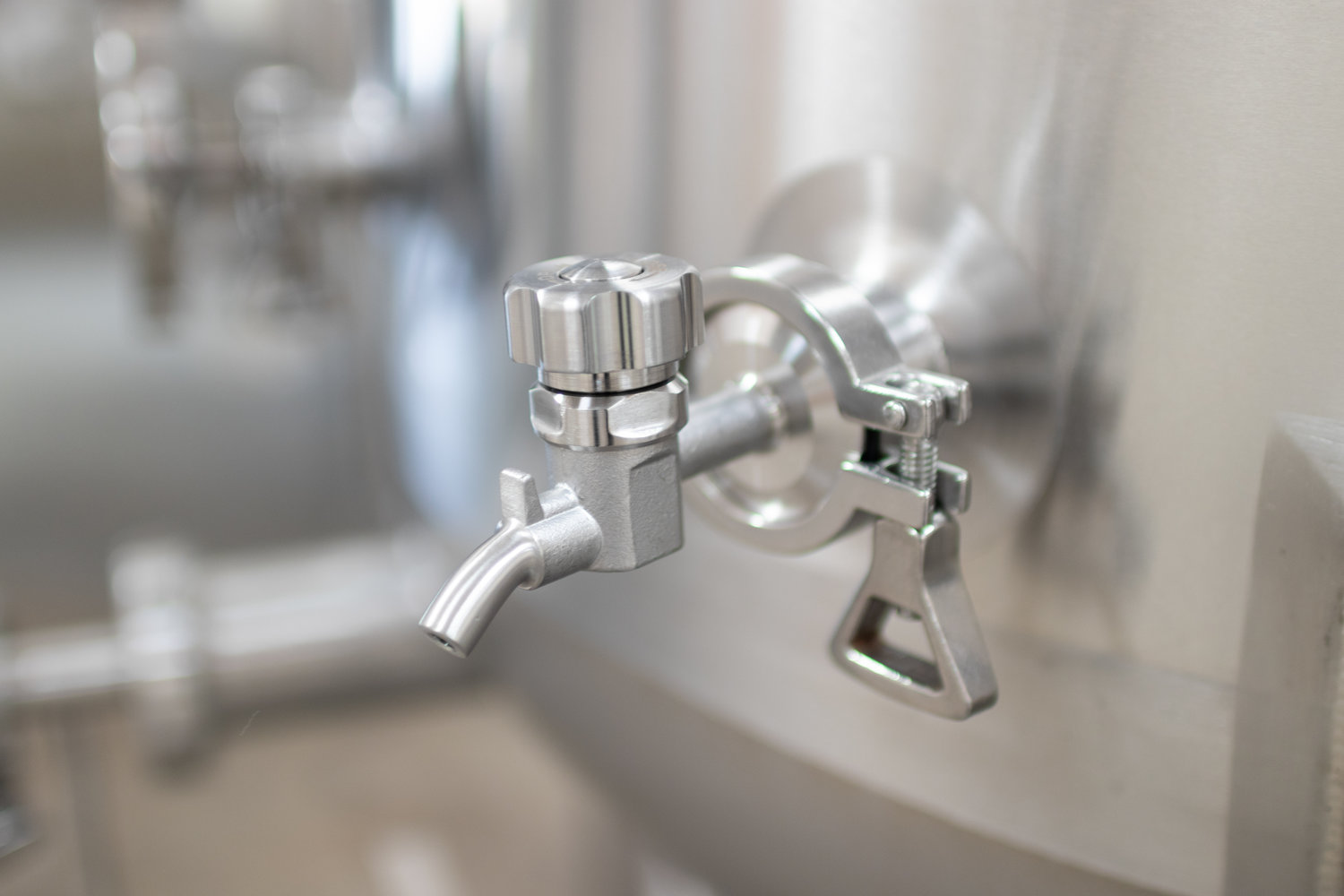

Sample valve
cleaning ball
| Exhibition |
| Certification |
FAQ
1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.
2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.
3.How to see if your company is trust?
We have sold many equipment to EURO.We can give you our customer’s contact information,you can listen to their advice or visit their brewery.
4.How should we do if we don’t know how to brew beer and install equipment?
We will dispatch engineer to install equipment and teach you how to brew beer freely.
If you have interest,please get in touch with me freely.
