DEGT-15BBL
DEGT
8438400000

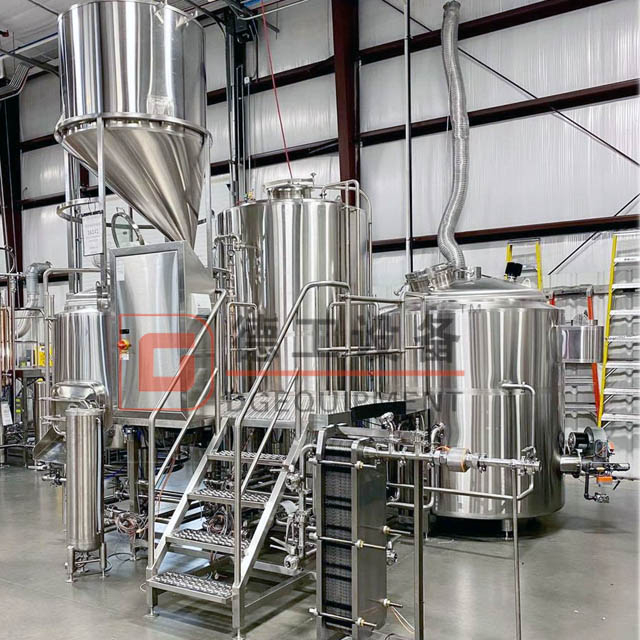

Mill machine
(3-vessel) with steam heating(electric bolier)
Fermentation system
Fermentation tank, bright beer tank(quantity can be customized)
Cooling system
qlycol tank, chiller, ice water tank,circulating pump
Control system(automatic, semi-automatic)
Mash control, fermentation control, cooling control, cleaning control, hot water tank, qlycol tank
Cleaning system
Washing pump, alkali tank, sterilization tank
Optional Equipment:
Beer bottling line: bottle filling&capping machine, labelling machine, beer bottle washing machine, Kegs washer and filler
Heating method: steam/electric/gas heated
Combination:it can be customized. We recommend 3-vessel.
Inner (stainless steel 304), TH=3.0mm
surface (stainless steel 304), TH=2.0mm
Insulation: polyurethane 100mm
top manway with glass
inside CIP washing ball
Agitator,removable false bottom, sparging arm, Tangential inlet for whirlpool
Auger, grain case, hydrator (optional)
About the quantity of fermentation tank, bright beer tank,it can be customized. If not, it depend on fermentation period.

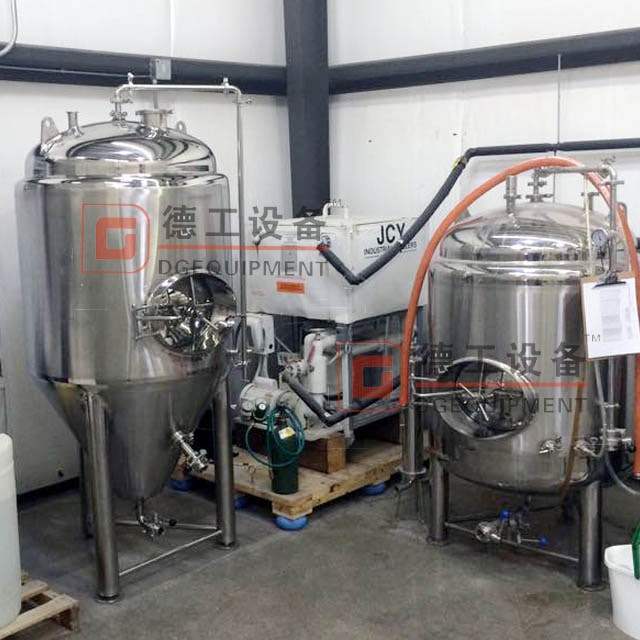

Fermenter with bottom cone 60-90 degree, This helps the recovery and utilization of yeast.
Inner wall stainless steel 304, TH=3.0mm;
surface wall stainless steel 304, TH=2.0mm
Insulation: polyurethane 100mm
Top/side manhole
Glycol cooling jackets on both cylinder and cone
Inside 360 degree rotating CIP washing ball, relief&vacuum valve on top, dry hops port on top, sample valve, rotating racking arm on cone, thermometer sensor
carbonation stone (optional)
100% TIG welding with pure argon gas shield
Interior Finish:Mirror polishing to 0.4μm without dead corner
Testing pressure: 3 bar; working pressure: 1.5-2.0 bar
PLC control with touch screen
Schneider low voltage electrical components; VFD;
Wiring diagram will be provided with the panel;
Wiring diagram and English nameplate.
All motors must have fuse and overload protection.
1. For electric machine parts, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. 2. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L...per patch for your choice.
3.It can be customized, such as the capacity(dimension can be customized), material(stainless steel 304/316 or copper), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.
4.Engineers are available for Overseas service. Provide installation, commissioning/testing, maintaining and personal training, beer production technology.
If you have any queations, please feel free contact me, my pleasure.
