Custom stainless steel jacket fermenter applied in restaurant beer bar
Home » Brewery Equipment » Fermentation Vessels » Custom stainless steel jacket fermenter applied in restaurant beer bar

Product Detail

Share to:

Custom stainless steel jacket fermenter applied in restaurant beer bar

The fermentation tank of DEGONG is featured with cost effective and easy to operate. With the high quality and good reputation,DEGONGET have occupied the world market in over 50 countries.It will be your best choice of the brewery equipment to brew distinctive flavor beer.

Quantity:
  • DGET
  • Degong
  • 8438400000



Fermentation system


  • Beer fermenters

  • Bright beer tanks

  • Yeast adding tank

  • Accessories, such as sample valve, pressure gauge, safety valve and so on

18814542_1426801327446125_357907973427048701_o_WPS图片

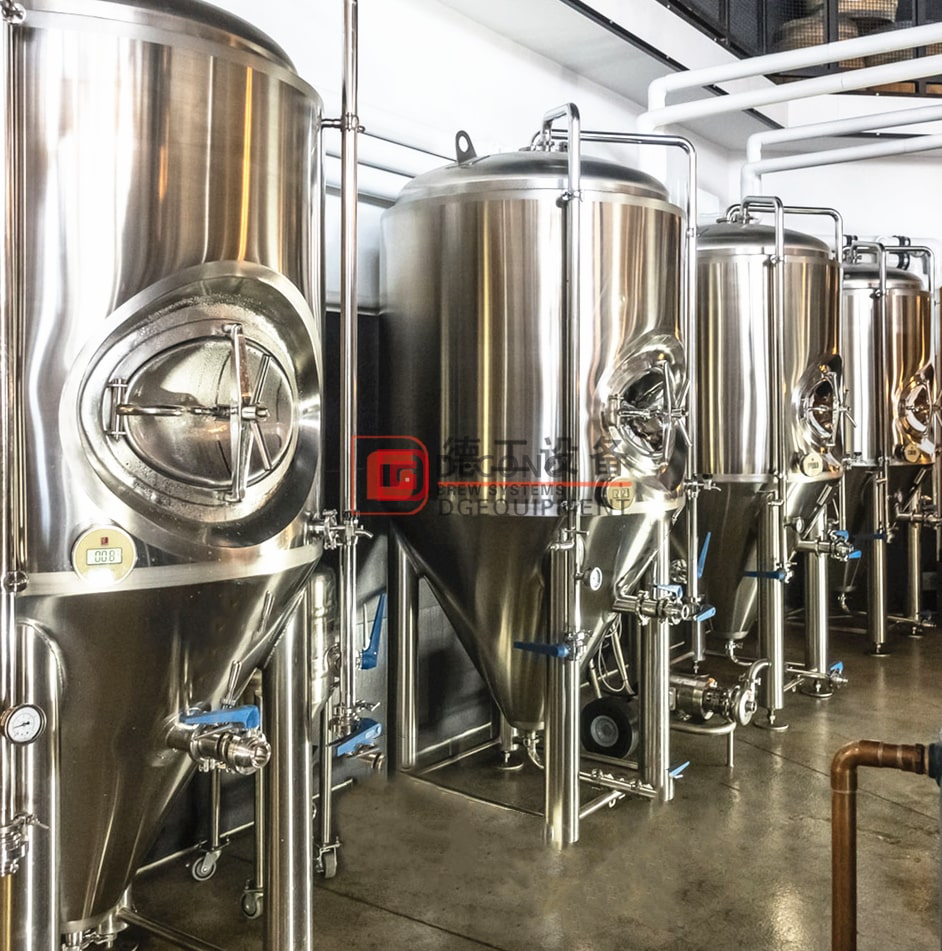

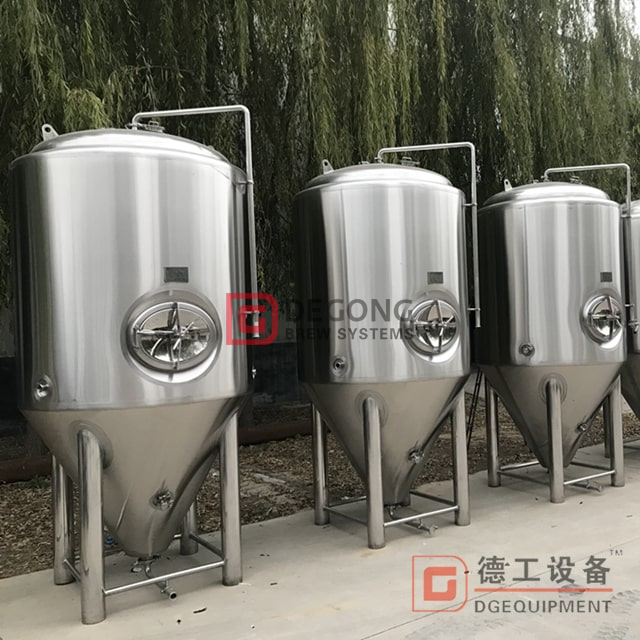

fermentation tank line


Configuration details



Material  (SUS304) thickness

Inner thickness: 3.0mm; Outer thickness: 2.0mm;External-Jacket thickness: 1.5mm
Interior Finish Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)
Exterior Finish Oil brushed finish (2B, 8K Mirror finish optional)
Inner treatment Interior full polished to 0.2~0.4 μm without dead corner
Insulation Insulated with high density Polyurethane foam 100mm
Cooling method Glycol Jacket

Vessel Pressure

practical pressure:1.5 bar;design pressure:3.0 bar

Equipment with cone 60°resist compression design,dripping

Carbonation stone (2)_副本_副本

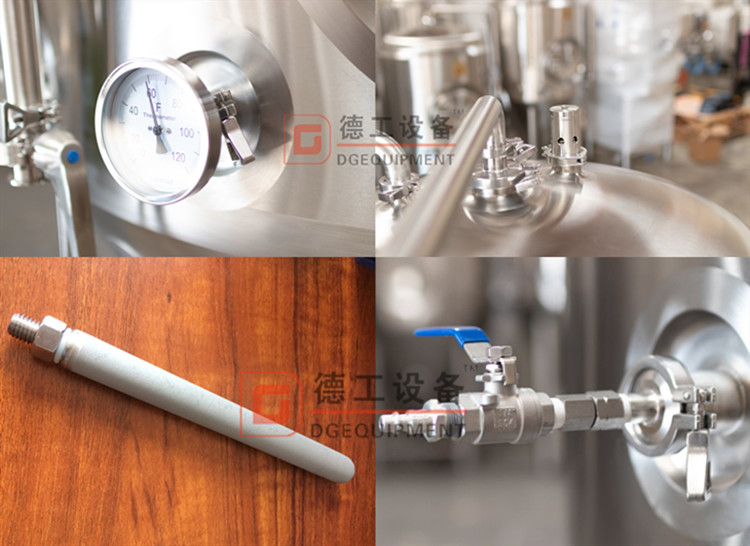

accessories of the fermentation tank



Brite beer tank


Micro-brite tank for placement in walk-in cooler, at economical price to meet budget of many start up brewery with guaranteed quality material and construction.The bright beer tanks made by Degonget use top class stainless steel (SUS304), surface treatment can be 2B or precise polish or mirror polished. All fittings installed with tanks using top brands like ABB, Siemens, Omron, etc.


EEu66XUWwAIZT1K_副本

1000L horizontal brite beer tank

Configuration details


  • Stainless steel(304)sanitary construction

  • Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm

  • External-Jacket(SUS304) thickness: 1.5mm

  • 100% TIG welded and sanitary polished

  • Design pressure 0.3 MPa, working pressure <0.2 MPa

  • Interior Finish: Sanitary 2B finish, Pickled and Passivity

  • 4 heavy duty stainless steel legs with adjustable height and leveling footpads

  • Insulation: Polyurethane-thickness 100 mm

  • CIP arm and spray ball 360o coverage. Easy clean slide over pipe connection with keeper pin

  • Pressure gauge

  • Thermometer gauge

  • Lifting lugs

  • Side man way door

  • Carbonation stone assembly


Packing&delivery


Standard packing:

  • Cord ,film membrane

  • Firm membrane, wood box for free fumigation


Punctual delivery time:

  • We put your order into our tight production schedule to ensure the punctual delivery time.

  • Production or inspection report before your order packed.

  • Shipping notice/ insurance to you as soon as your order is shipped.


未标题-1


Our certificate


Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.


01-min


Contact us


Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
