Industrial 1000L Brewhouse Available Mash/lauter/boiling/whirlpool Tank Free Combination Customized in Cellar
Home » Brewery Equipment » Beer brewery equipment » Industrial 1000L Brewhouse Available Mash/lauter/boiling/whirlpool Tank Free Combination Customized in Cellar

Product Detail

Share to:

Industrial 1000L Brewhouse Available Mash/lauter/boiling/whirlpool Tank Free Combination Customized in Cellar

Fermenters, brite tanks, yeast brinks, and more. We've been making tanks for brewing and beverage applications for over 10 years.
Want something custom, like a hopback or an agitator? We'll happily consult and see if we can do it for you.

Thickness of material (mm):
Insulation:
Material:
fermentation tank Manhole:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000

制作流程

Beer brewing process diagram

Milling-Mashing-Lautering-Boiling-Whirlpool-Cooling-Fermenting-Maturing-Packing


Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components. Breweries have classic packaging arrange consisting of brewing kettle,fermentation vessels and additional equipment.The brewery equipped with semiautomatic control panel.Staff training occurs during installation of equipment and test brews.


Brewhouse system:

粉碎-min

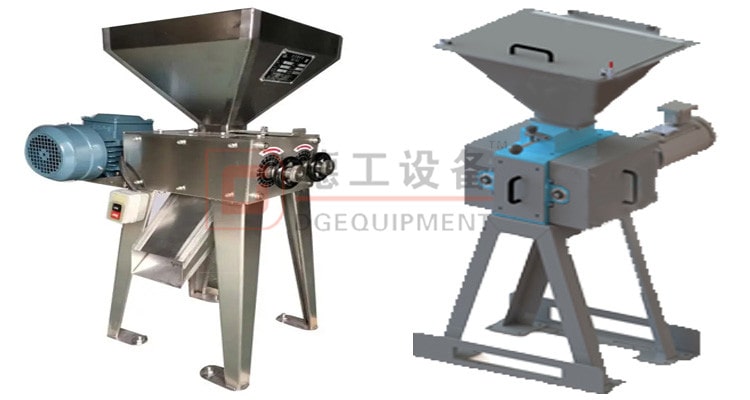

Malt mill machine

Specially designed for higher extraction rates and brewhouse yields

Consistent grind and precise particle size control

Machine reliability and ease of use

Thicker steel for more durability

Reliable direct drive grinding rolls

Easy access grease banks

Sample ports easily accessed so you can check your product anytime

Multiple attachments to accommodate your in feed and discharge needs, including appropriately sized stands to allow for proper clearance

Made in the USA

12 month warranty

Dust Tight

100% Customer Satisfaction Guarantee on all brew mills


-2

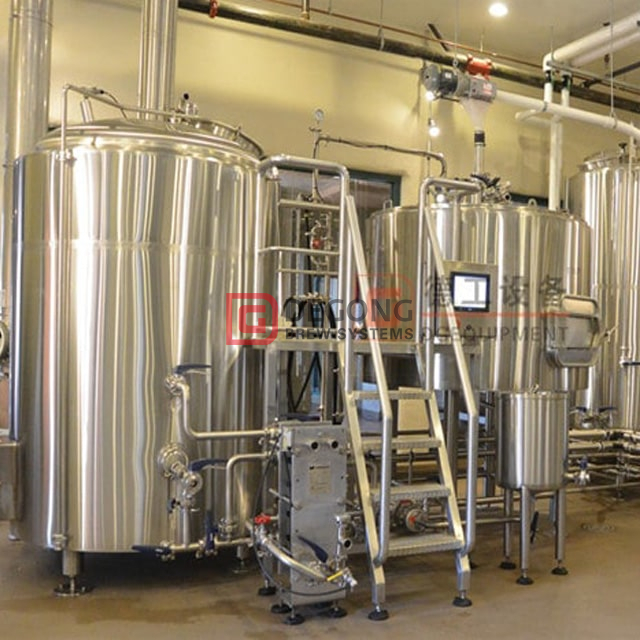

Beer brewing equipment(2 vessel)


The system can be heated by steam,electricity or gas;and controlled by manual,semi-automatic or full automatic.The mainstream of two-vessel brewhouse is steam heated and manual controlled system.


Brewhouse feratures:

Standard Brewhouse configuration:

1. Mash / Lauter Tun with side grain out access

2. Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control

3. Semi-Automated Controls with PLC & Remote Access Support

4. 304 Stainless Steel Sanitary Pumps with VFD Controls

5. 304 Stainless Steel Plate Heat Exchanger with integrated temperature controls

6. Manual Sanitary Butterfly Valves

7. Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions

8. Semi-auto control cabinet

9. High accuracy temperature sensor, PT100

10. Heating: dimple steam jacket/ stainless steel electric heating elements

11. Usage:Pub/hotel/restaurant beer brewery equipment


raker-min

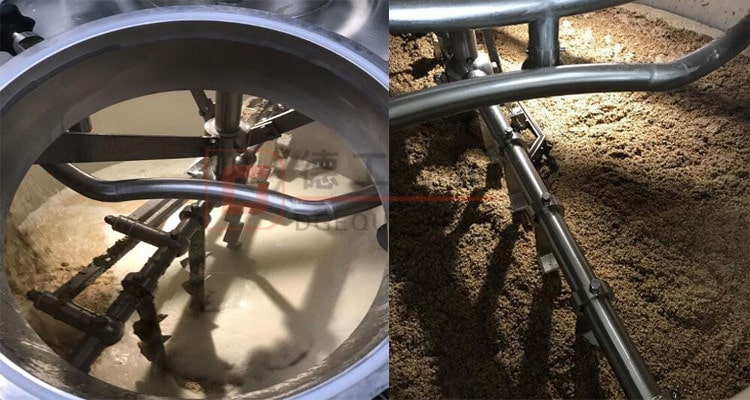

Raker(frequency conversion)


细节0-min

Pipeline;false bottom filter and heat exchanger


Fermentation system:

These fermenters have the minimum characteristics that we advise for the professional production of beer. They are made of stainless steel 304, they are cylindro-conical at 60º and they have a double jacket in the cylinder and cone to control the temperature.


3-min_副本

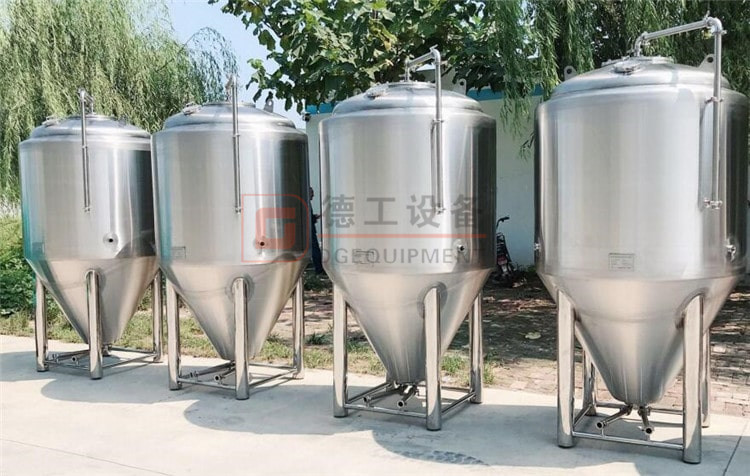

Stainless steel conical fermenter in yard


bright-beer-tank-detail-min

Mechanical control valve;pressure gauge;racking arm;

Side manway;thermometer and carbon stone

Fermentation tank features:

-Food grade 304 stainless steel construction, interior/exterior

- Dual zone dimple cooling jacket with glycol inlet and outlet

- Sanitary interior finish with all welds ground and polished

- Fully welded exterior

- Polyurethane insulation for cooling jacket on sidewall and bottom

- Side shadowless manway door (optional top manway)

-60 degree conical bottom with 25% free head space

- CIP arm and 360 degree spray ball

- Racking port with Rotating racking arm

- PRV

- Pressure gauge

- Sample valve

- 4 legs with cross braces and adjustable feet

- 3 bar design pressure

- Tank valves and fittings


清酒正反-min

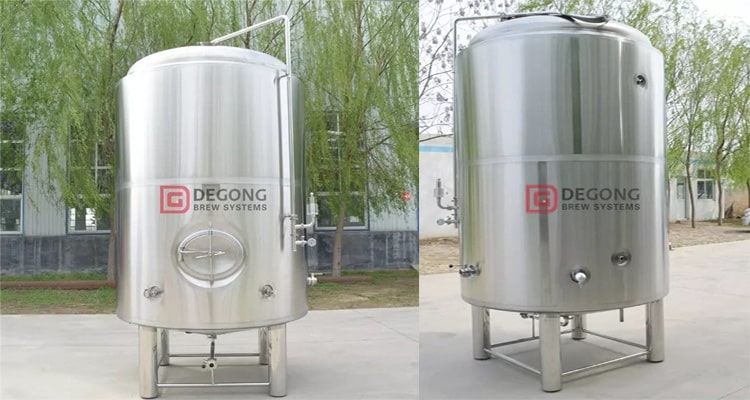

Brite tank front and back view

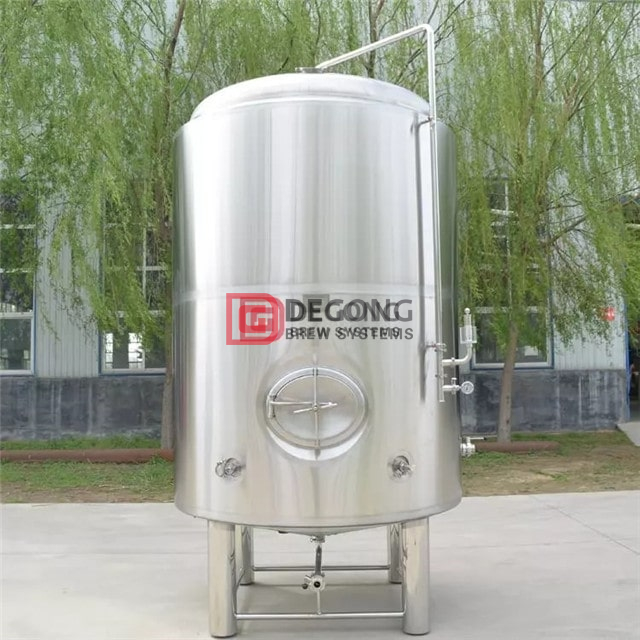

Brite tank features:

Outer shell: SUS304, 1.5mm thickness, brushed finished

Inner container: SUS304, thickness 3mm, smooth ground welds - 2B finish

Glycol jacket: SUS304, thickness 2mm, dimple welded

Insulation material: polyurethane, 100 mm thickness

Head space: 25% over stated size

Pressure rating: 0.15Mpa working pressure

Connections: PVRV, coolant inlet/outlet, Pt100 interface, sample valve, side man-door, carbonation stone, pressure gauge, analog temperature gauge, volume sight-glass, analog temperature gauge, rotating CIP ball and piping, center bottom product port.


details_副本-min

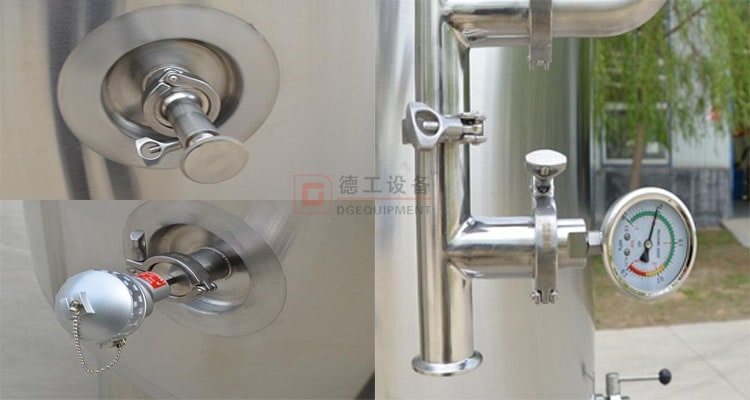

Rotating racking arm and thermometer


控制柜1-min

Control panel(mashing,fermenting...)


Our company:

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

证书2-min

Certification


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


装载2-min

The cargo ready to load
