craft turnkey jacket 1000L beer fermentation tank fermenter unitank for sale

OVERVIEW

Degong's fermentation tank is certified with ISO,CE and TUV,featuring high quality and being applied in beer bar,restaurant, beverage factory in more than 50 countries all over the world. It will be the best choice for the  buyer who want establish the  commercial and industrial brewery for brewing the unique taste of beer. The fermentation system is consisted of fermenter, bright beer tank, yeast tank and other accessories under the technical view.

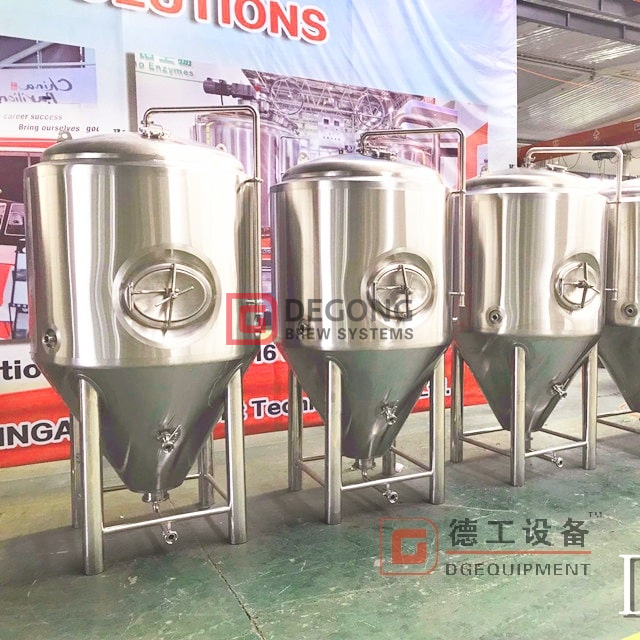

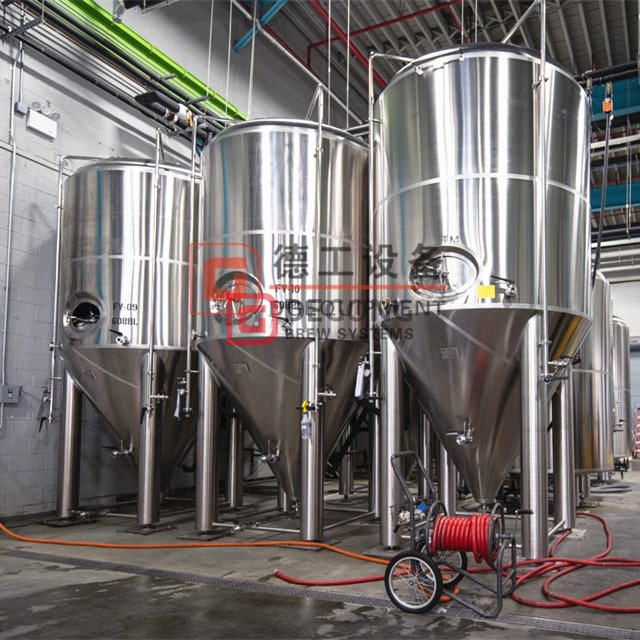

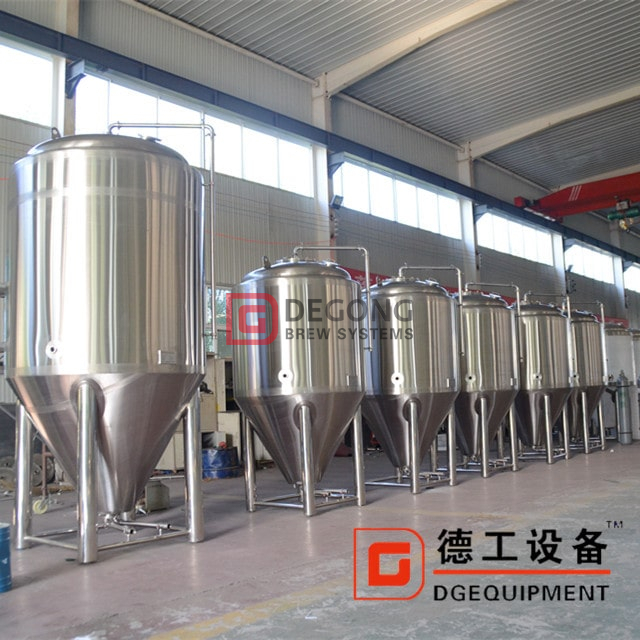

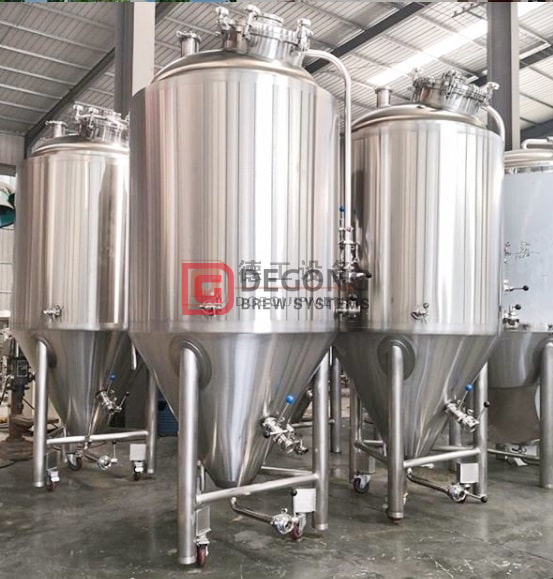

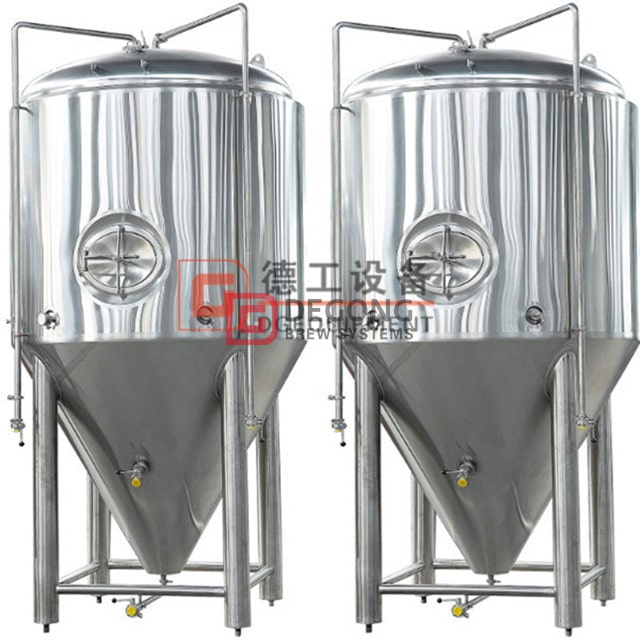

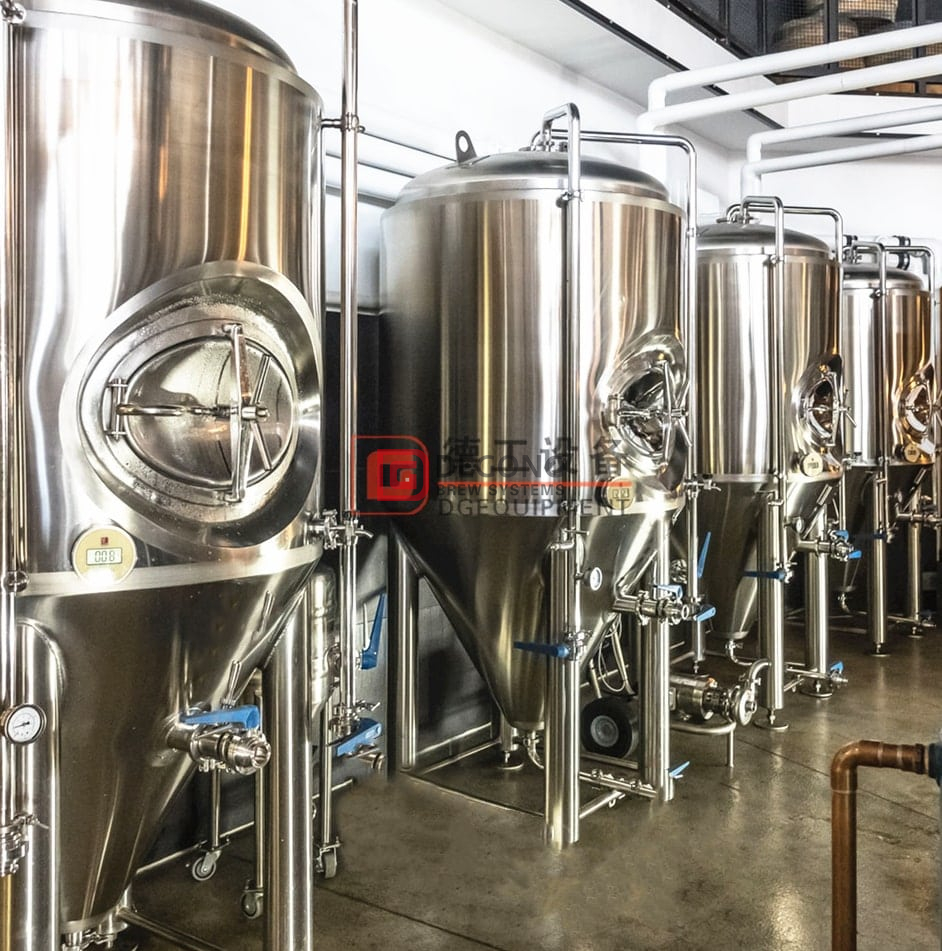

FERMENTATION TANK

Technical parameters

• Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm; External-Jacket(SUS304) thickness: 1.5mm;

• Equipment with : cone 60°resist compression design，dripping

• 100% TIG welding with pure argon gas shield

• Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

• Exterior Finish: Oil brushed finish (2B, 8K Mirror finish optional)

•  Interior full polished to 0.2~0.4 μm without dead corner

• Insulated with high density Polyurethane foam 100mm

• Glycol Jacket: Dimpled plate on cone and side

• Stringent tank leakage test by water and pressured gas

• Stringent Jacket leakage test by water and pressured gas

• Sanitary side mounted manway with pressured door

• TC connected CIP arm with 360° coverage spraying ball

• CO2 blow-off arm with butterfly valve

• Full sanitary metallic sealed sampling valve

• Mechanical safe valve PVRV 2 bar on top

• Hydraulic shock pressure gauge on CIP arm

• Rotating racking arm and port on cone with butterfly valve

• Tri-clamp discharge arm with butterfly valve

• Thermowell for high accuracy temperature sensor

• 4 pcs completely SUS304 heavy duty legs with leveling pad and legs support

• Dry hopping port 4'' TC with solid end cap

BRIGHT BEER TANK

Technical parameters

• Stainless steel(304)sanitary construction

• Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm

• External-Jacket(SUS304) thickness: 1.5mm

• 100% TIG welded and sanitary polished

• Design pressure 0.3 MPa, working pressure <0.2 MPa.

• Interior Finish: Sanitary 2B finish, Pickled and Passivity;

• 4 heavy duty stainless steel legs with adjustable height and leveling footpads

• Insulation: Polyurethane-thickness 100 mm.

• CIP arm and spray ball 360^o coverage. Easy clean slide over pipe connection with keeper pin.

• Pressure gauge

• Thermometer gauge

• Lifting lugs

• Side man way door

• Carbonation stone assembly

horizontial bright beer tank

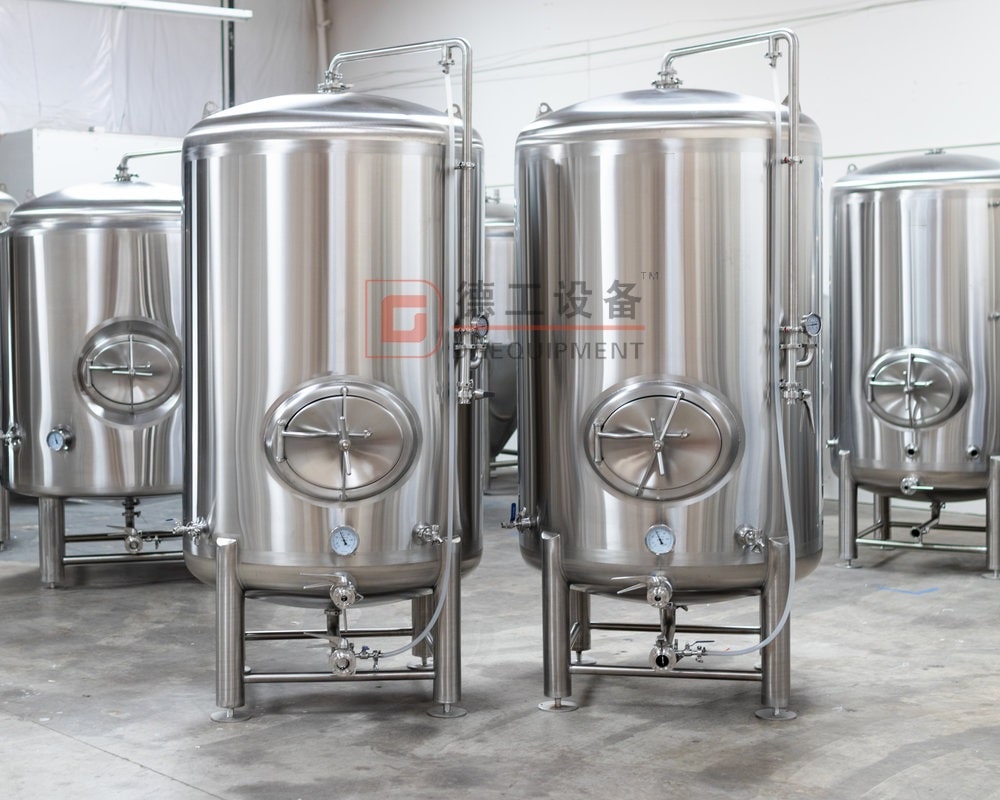

vertical bright beer tank

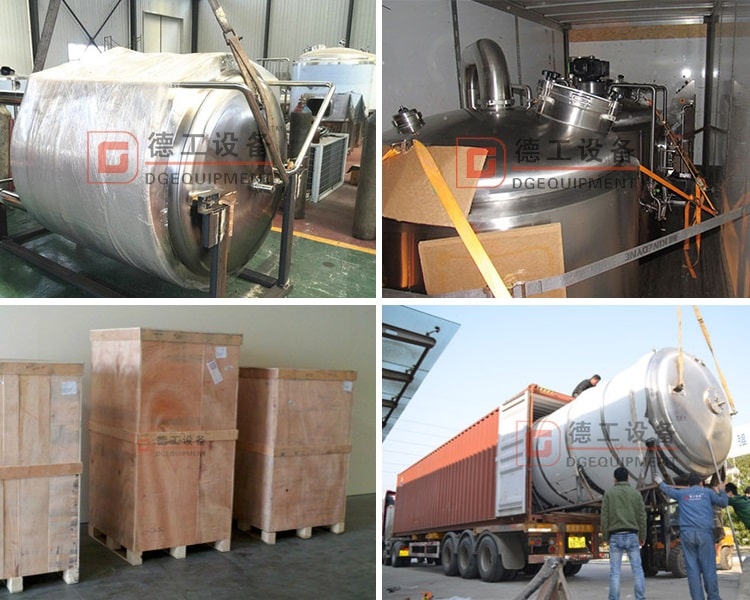

PACKING&DELIVERY

Standard packing:

Cord ,film membrane

Firm membrane, wood box for free fumigation

Transport: by sea

Delivery :

     - We put your order into our tight production schedule to ensure the punctual delivery time.

     - Production or inspection report before your order packed.

     - Shipping notice/ insurance to you as soon as your order is shipped.

WHY CHOOSE US

DEGONGET,established in 2009,is a large Chinese manufacturer of beer brewing equipment. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation to fit each brewer’s individual needs.

Quality

Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.

Delivery

Time is gold for you and for us,so we have professional team work and production line and can make nice quality in short time.

Certificate

Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.

FAQ

Q1:What’s the payment you prefer?

A:Our standard payment terms are T/T with 30% deposits and balanced before shipment.

Q2:Do you have technical support after we purchased equipment?

A:We will arrange the professional technician to go to your factory and give the support to help you learn how to install and maintenance the machine or help you to fix the machine when it has problems.

Q3:Where is your factory?

A:Our factory is located in Dezhou City, Shandong province,China. We can pick you up at the airport whenever you want to visit the factory.

Q4:How long time for installation?

A:It’s according to your equipment order, it about 10days to 25 days.

Q5:What’s your warranty policy?

A:We warranty all our equipment for up to 12 months. Your brewhouse and tanks are inspected and tested before they leave factory, but we also cover any and  all issues you may have in the field.

Q6:Where is the port of loading?

A:The port of loading is Qingdao

CONTACT US

Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
