DGET- 100L
DGET
8438400000
Small beer brewing equipment are divided into 100 liters, 150 liters, 200 liters, 300 liters, 500 liters, 1000 liters, 2000 liters and other different types of equipment. The device specifications are different and the configuration details are different.
| Production introduction |
The complete micro beer equipment mainly includes the main components such as crushing system, mashing system, fermentation system, refrigeration system, cleaning system, control system and many other auxiliary components.
DEGONG design and manufacture complete beer brewing equipment, all brewing systems can be designed according to customer’s requirement.We also can recommend a best brewing system to the customers who don't know much about the beer industry based on their brewing plan.

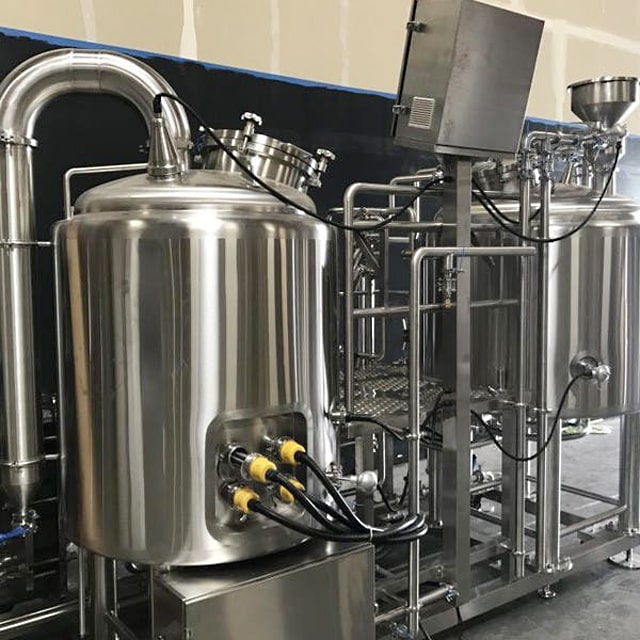

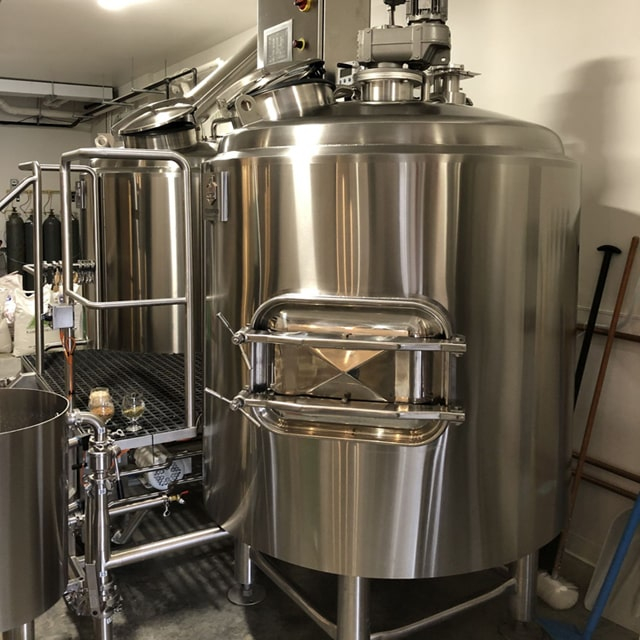

100L beer brewhouse normal configuration
Other component of brewhouse
|
|
Mash/lauter tank 1.Be made of food sanitary stainless steel 304 2. Inner surface treatment: welds grinded to Ra 0.4µm without dead corner. 3. 100% TIG welding with pure argon gas shield 4. Insulation: Polyurethane-thickness 80 mm. 5. Temperature way：Double metal thermometer 6. Grain washing round pipe; CIP rotary spray device 7. Thermo well for high accuracy temperature sensor 8. Sanitary liquid level indicator with valves 9. Stainless steel laser cutting False Bottom/Filter
| Boiling/whirlpool tank 1.Be made of food sanitary stainless steel 304 2. Inner surface treatment: welds grinded to Ra 0.4µm without dead corner. 3. 100% TIG welding with pure argon gas shield 4. Insulation: Polyurethane-thickness 80 mm. 5. Temperature way：Double metal thermometer 6. CIP rotary spray device 7. Thermo well for high accuracy temperature sensor 8. Sanitary liquid level indicator with valves 9. Tangential port for whirlpool
|

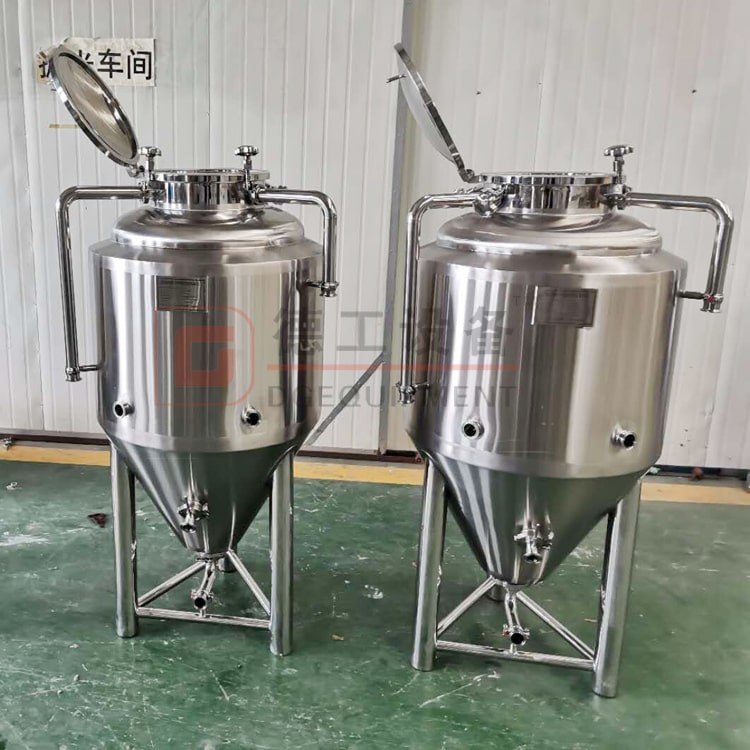

100L/200L Fermentation tank
| 1. Stainless steel 304 2.Equipment with : cone 60°resist compression design 3. 100% TIG welding with pure argon gas shield 4. Interior Finish: Sanitary 2B finish 5. Exterior Finish: Oil brushed finish 6. Interior full polished to 0.4 μm 7. Insulated with Polyurethane foam 80mm 8. TC connected CIP arm with 360° coverage spraying ball 9.Full sanitary metallic sealed sampling valve 10.Pressure relief valve PVRV 2 bar on CIP arm 11.Hydraulic shock pressure gauge on CIP arm 12.Rotating racking arm 13.Thermowell for high accuracy temperature sensor 14.Dry hopping port 4'' TC with solid end cap |
Other necessory system
Miller system:Breaker Roll Type; Adjustable mill degree; |  |
Cooling system：Glycol water tank; Cold water tank; Chiller; Circulation pump | |
CIP system:Alkali tank; sterilization tank; pump | |
Control system:PLC Control or PID control,Siemens,Omron,Schneider,Danfoss component |
