DGET- 1000L
DGET
8438400000
| Beer brewhouse introduction |
We offer larger commercial used brewhouse from 1000l to 5000l brewhouses,and we also offer small brewpub/restaurant used brewhouse from 3bbl to 10bbl. DEGONG brewhouses come in multi-vessel configurations mash tun,lauter tank,brew kettle,whirlpool tank and hot liquor tank included. The 4 function tanks can be combined according to different requirement,such as 2-vessels brewhouse(mash/lauter tank+boiling/whirlpool tank) for small brewhouse,3-vessels brewhouse(mash boiling kettle+lauter tank+whirlpool tank) for middle size brewhouse.....

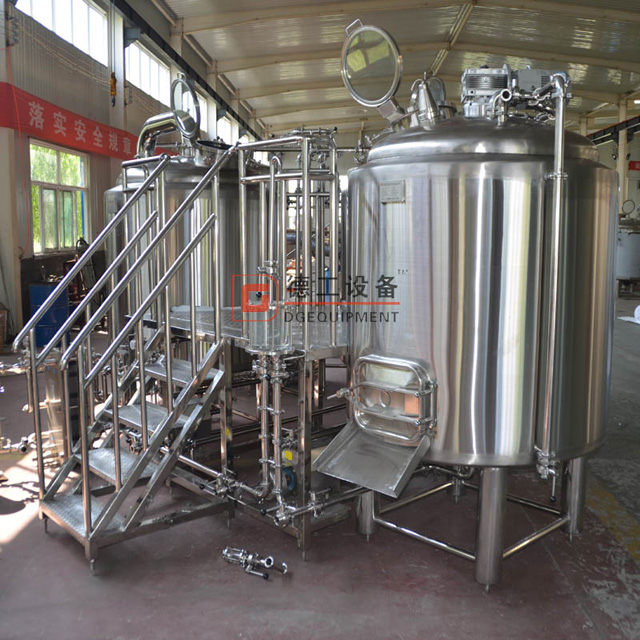

1000L 3-vessel beer brewhouse
BREWHOUSE Basic Components (2-vessel or 3-vessel design):
a) Mash Tun/Kettle (Mashing/Wort-Boiling)
b) Lauter Tun (Lautering)
c) Whirlpool/Hot Liquor Tank (Whirlpooling/Hot water supply)
Heating provided by electric or gas fired steam generator
| Fermentation tank introduction |
Fermenter available from 100 Litre to 10000 litre with an average 25% head Space. All tank have a Dish top , Cylinder body & 60 /75° Cone Bottom . Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet your brewery’s space and height restrictions.

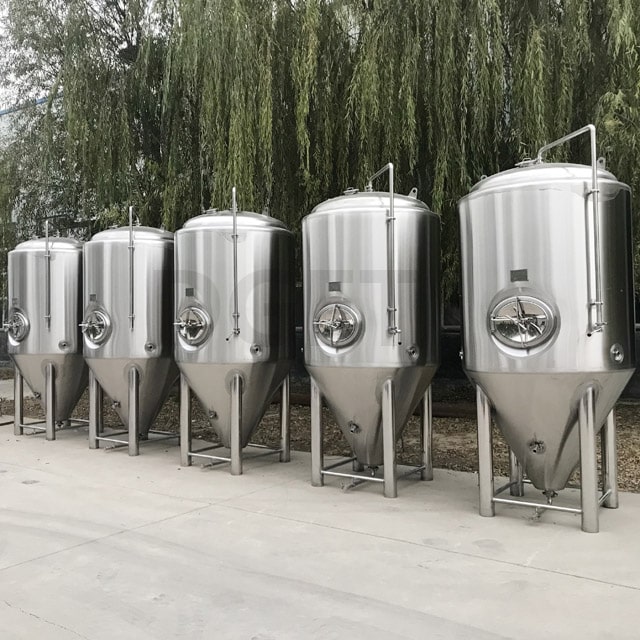

Separate beer fermentation tank
Accessories on fermentation tank
Function: Use for keep wort fermentation or maturation.
Component: It is consisted of Shadowless manhole, spunding valve, Aseptic valve, Pressure gauge, Rotate racking arm, Butterfly valve, Solenoid valve and etc.
Material: Stainless steel 304 or 316,or red copper
Capacity: effective volume is 50L-30000L, 1BBL-300BBL
Cooling method: dimple plate or glycol cooling jacket around tank.
Cooling media: glycol water or alcohol water.
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized).
| Product details |
1.Mirror Polishing
- Inside Polishing: Overall polishing to 0.4μm without dead corner .
- Outside Polishing: Mirror polishing, smooth enough and passivating treatment.
- Purpose: Make sure the inner tank smooth enough to avoid form any dead cornor which caused bad taste in the wort beer. Outer tanks looks more like an artwork.
2.100% WIG Welding
- All welding is TIG welding.
- All welding is Full welding.
- All welding is double side welding.
- Purpose: The use of argon on the protection of metal welding material, So that welding can not be in contact with oxygen in the air, thus preventing the oxidation of welding consumables.Which Makes tanks durable and strong.
| Company information |
If you have interest in DEGONG beer brewing equipment,welcome to contact me freely
